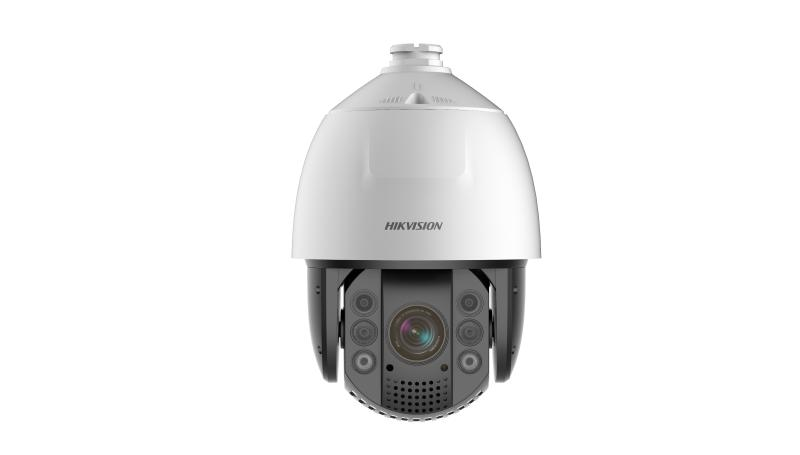

7-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome

  • 25× optical zoom, 16× digital zoom
  • WDR, HLC, BLC, 3D DNR, Defog, Regional
  • Up to 150 m IR distance
  • Up to 30 m white light distance
  • Support audio visual alarm
View Less
View more
DS-2DE7A225MX-AE
HOT

Especificación

  • Lente
  • Velocidad del ZoomApprox. 4.8 s (optical lens, wide-tele)
  • Distancia de trabajo10 mm to 1500 mm (wide-tele)
  • Rango de aperturaF1.2 to F3.8
  • Longitud focal4.8 mm to 120 mm, 25× Optical
  • Campo de visiónHorizontal field of view: 58.4-2.7° (wide-tele), Vertical field of view: 33.8-1.5° (wide-tele), Diagonal field of view: 65.6-3.1° (wide-tele)
  • Red
  • Almacenamiento en redBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Vista en vivo simultáneaUp to 20 channels
  • Usuario/operadorUp to 32 users. 3 levels: Administrator, Operator and User
  • ClienteiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Navegador webIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+
  • Medidas de seguridadUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Enlace de alarmaAlarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, and Audio Visual Alarm etc.
  • Compresión de vídeoMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG,
  • Tipo H.264Baseline Profile/Main Profile/High Profile
  • H.264 +Yes
  • Tipo H.265Main Profile
  • H.265 +Yes
  • Vídeo bitrate32 Kbps to 16384 Kbps
  • Compresión de audioG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
  • Max. Resolución1920 × 1080
  • Main stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • SVCYes
  • IR
  • Distancia IR150 m
  • IR inteligenteYes
  • Distancia de luz blanca30 m
  • Features
  • Evento inteligenteFace Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
  • Registro inteligenteANR (Automatic Network Replenishment), Dual-VCA
  • ROIEight fixed region for each stream
  • Auto-TrackingYes
  • Evento BásicoMotion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
  • Módulo de cámara
  • DNR 3DYes
  • Exposición regionalYes
  • Enfoque regionalYes
  • Sensor de imagen1/2.8" progressive scan CMOS
  • Iluminación mínimaColor: 0.005 Lux @(F1.2, AGC ON), B/W: 0.001 Lux @(F1.2, AGC ON), 0 lux with IR or white light
  • Balance de blancosAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • GananciaAuto/Manual
  • Tiempo de obturación50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s
  • Día y NocheIR Cut Filter
  • Zoom Digital16×
  • Máscara de privacidad24 programmable polygon privacy masks, mask color or mosaic configurable
  • Modo de enfoqueAuto/Semi-automatic/Manual
  • WDR120 dB
  • BLCYes
  • HLCYes
  • EISYes
  • Rapid FocusYes
  • DesempañarYes
  • PTZ
  • Rango de movimiento (pan)360° endless
  • Velocidad de movimiento horizontal (pan)Configurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s
  • Rango de movimiento (tilt)From -15° to 90°
  • Velocidad de vertical (tilt)Configurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s
  • Zoom proporcionalYes
  • Preajustes300
  • Escaneo de patrulla8 patrols, up to 32 presets for each patrol
  • Patrón de escaneo4 pattern scans, record time over 10 minutes for each scan
  • Memoria de apagadoYes
  • Acción del parquePreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • Posicionamiento 3DYes
  • Pantalla de estado de PTZYes
  • Congelación preestablecidaYes
  • Tarea programadaPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
  • System Integration
  • Alarma2-ch alarm input/1-ch alarm output
  • Audio1-ch audio input, 1-ch audio output
  • Interfaz de red1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
  • General
  • MaterialAluminum alloy
  • DimensionesΦ 220 mm × 353.4 mm (Φ 8.66" × 13.91")
  • Approx. 4.8 kg (10.58 lb)
  • Nivel de protecciónIP66 Standard, IK10 (excluding glass window), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • alimentación24 VAC, 3.0 A, 50/60 Hz (max. 60 W) Hi-PoE, 42.5 to 57 VDC, 1.41 A (max. 50 W) Including max. 9 W for IR, max. 6 W for white light and max. 6W for heater
  • Altavoz incorporado4Ω, 6W
  • Language (Web Browser Access )32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Ambiente de trabajo- 30°C to 65°C (-22°F to 149°F), Humidity: ≤ 90%
