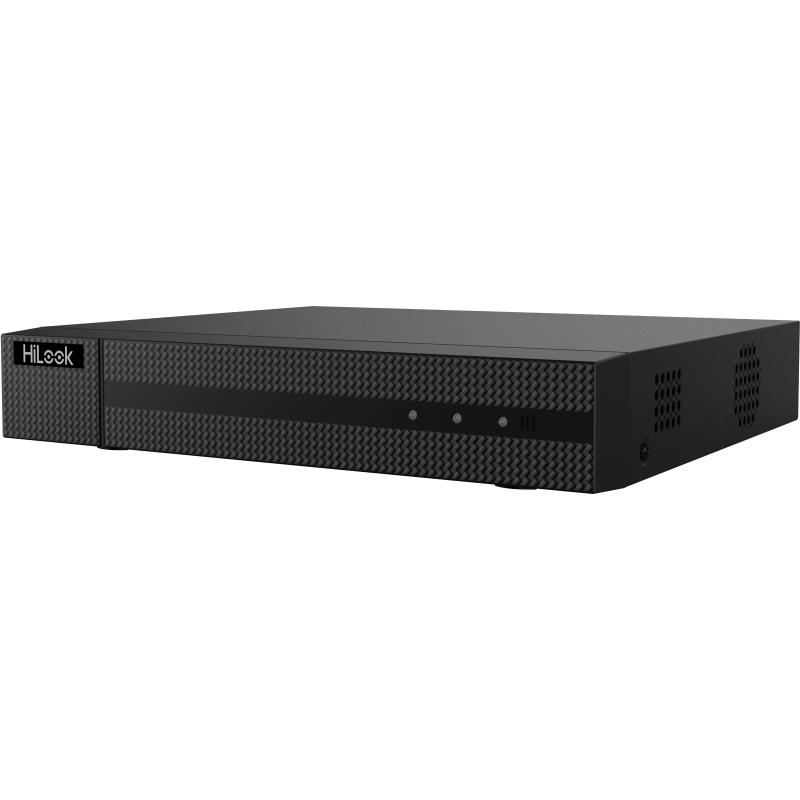

4-ch 1080p 1U H.265 DVR

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Long distance transmission over UTP and coaxial cable
H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
Supports 4 MP lite, and when enabled the image effect is similar with 4 MP
One HDD for continuous video recording
Smart search for efficient playback.

View Less

Available models:

DVR-204Q-K1(C)(S)

DVR-204Q-K1 ^HOT ^Discontinued

Especificación
Resources
Accesorios

Video and Audio
Entrada de vídeo IP2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Entrada de video analógico4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1.
AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS InputPAL/NTSC
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
Salida de audio1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Reproducción síncrona4-ch

Recording
Compresión de vídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolución de codificaciónWhen 1080p Lite mode not enabled: 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF
Frame RateMain stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps(N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25 fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/2CIF@12 fps; CIF/QVGA/QCIF@25 fps (P)/30 fps (N)
Vídeo bitrate32 Kbps to 6 Mbps
Doble flujoSupport
Stream TypeVideo, Video & Audio
Compresión de audioG.711u
Audio Bitrate64 Kbps

Red
Conexión remota32
Protocolo de redTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Interfaz de red1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface
SATA1 SATA interface
CapacidadUp to 10 TB capacity for each disk
Interfaz USBReal panel: 2 × USB 2.0
Alarma E/SN/A

General
Fuente de alimentación12 VDC, 1.5 A
Consumo≤ 8 W (without HDD)
Temperatura de trabajo-10 °C to +55 °C (+14 °F to +131 °F)
Condiciones de Humedad10% to 90%
Dimensión (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
≤ 1 kg (2.2 lb.)

Video and Audio

Entrada de vídeo IP

2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Entrada de video analógico

4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1.

AHD Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Entrada de Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable

Salida de audio

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Reproducción síncrona

4-ch

Recording

Compresión de vídeo

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolución de codificación

When 1080p Lite mode not enabled: 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF

Frame Rate

Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps(N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25 fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/2CIF@12 fps; CIF/QVGA/QCIF@25 fps (P)/30 fps (N)

Vídeo bitrate

32 Kbps to 6 Mbps

Doble flujo

Support

Stream Type

Video, Video & Audio

Compresión de audio

G.711u

Audio Bitrate

64 Kbps

Red

Conexión remota

Protocolo de red

TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Interfaz de red

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Capacidad

Up to 10 TB capacity for each disk

Interfaz USB

Real panel: 2 × USB 2.0

Alarma E/S

N/A

General

Fuente de alimentación

12 VDC, 1.5 A

Consumo

≤ 8 W (without HDD)

Temperatura de trabajo

-10 °C to +55 °C (+14 °F to +131 °F)

Condiciones de Humedad

10% to 90%

Dimensión (W × D × H)

260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

≤ 1 kg (2.2 lb.)
