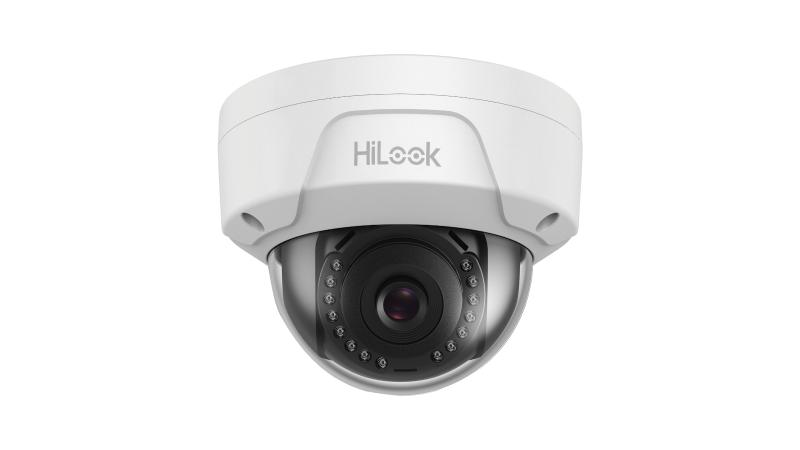

2 MP Fixed Dome Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Easy installation with Power over Ethernet (PoE) technology;

View Less

Available models:

IPC-D120H(2.8mm)(HiLookSTD)

IPC-D120H(-M) ^Discontinued

Especificación
Resources
Accesorios

Cámara
Sensor de imagen1/2.8" Progressive scan CMOS
Iluminación mínimaColor: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)
Velocidad de obturación1/3 s to 1/100, 000 s
Obturador lentoYes
Día y nocheIR cut filter
Wide dynamic rangeDigital WDR
Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
DNR3D DNR

Lente
Lente2.8 to 8 mm
Auto-IrisNo
AperturaF1.9
EnfoqueWithout -Z model: Manual -Z model: Auto
FOVHorizontal field of view: 111° to 54.7° Vertical field of view: 57.8° to 30.5° Diagonal field of view: 134° to 63°
Montura del lenteΦ14

Iluminador
Rango IRUp to 20 m
Longitud de onda850 nm

Red
Activador de alarmaMotion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Almacenamiento en redSupport Micro SD/SDHC/SDXC card (128G), local storage and ANR
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
Vista en vivo simultáneaUp to 6 channels
Usuario/operadorUp to 32 users 3 levels: Administrator, Operator and User
ClienteiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Navegador webIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Vídeo
Max. Resolución1920 × 1080
Main stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Compresión de vídeoMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Vídeo bitrate32 Kbps to 8 Mbps

Audio
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
Filtro de ruido ambientalYes
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Conjunto de funciones inteligentes
Región de interés1 fixed region for main stream

Imagen
Mejora de la imagenBLC, 3D DNR
Ajuste de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Interruptor día/nocheDay/Night/Auto/Schedule
Sub-stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Interfaz
On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Interfaz de comunicación1 RJ45 10M/100M self-adaptive Ethernet port
AudioBuilt-in mic
Salida de Vídeo1Vp-p composite output (75 Ω/BNC)

General
Versión de firmware5.5.82
Función generalOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
ReiniciarYes
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Fuente de alimentación12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
MaterialFront & Back cover: metal
DimensionesCamera: Φ 105 mm × 244.4 mm (4.1" × 9.6") With package: 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Camera: Approx. 700 g (1.5 lb.) With package: Approx. 1100 g (2.4 lb.)
Power Consumption and Current-Z model: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W Without -Z model: 12 VDC, 0.6 A, max. 7 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W
Protección de la interfazIP66

Compresión estándar
H.264 +Main stream supports
H.265 +Main stream supports

Cámara

Sensor de imagen

1/2.8" Progressive scan CMOS

Iluminación mínima

Color: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)

Velocidad de obturación

1/3 s to 1/100, 000 s

Obturador lento

Yes

Día y noche

IR cut filter

Wide dynamic range

Digital WDR

Ajuste de ángulo

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

DNR

3D DNR

Lente

2.8 to 8 mm

Auto-Iris

Apertura

F1.9

Enfoque

Without -Z model: Manual -Z model: Auto

FOV

Horizontal field of view: 111° to 54.7° Vertical field of view: 57.8° to 30.5° Diagonal field of view: 134° to 63°

Montura del lente

Φ14

Iluminador

Rango IR

Up to 20 m

Longitud de onda

850 nm

Red

Activador de alarma

Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Almacenamiento en red

Support Micro SD/SDHC/SDXC card (128G), local storage and ANR

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Vista en vivo simultánea

Up to 6 channels

Usuario/operador

Up to 32 users 3 levels: Administrator, Operator and User

Cliente

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Navegador web

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Vídeo

Max. Resolución

1920 × 1080

Main stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Compresión de vídeo

Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Vídeo bitrate

32 Kbps to 8 Mbps

Audio

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM

Velocidad de bits de audio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Filtro de ruido ambiental

Yes

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Conjunto de funciones inteligentes

Región de interés

1 fixed region for main stream

Imagen

Mejora de la imagen

BLC, 3D DNR

Ajuste de imagen

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Interruptor día/noche

Day/Night/Auto/Schedule

Sub-stream Max. Frame Rate

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Interfaz

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Interfaz de comunicación

1 RJ45 10M/100M self-adaptive Ethernet port

Audio

Built-in mic

Salida de Vídeo

1Vp-p composite output (75 Ω/BNC)

General

Versión de firmware

5.5.82

Función general

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Reiniciar

Yes

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Fuente de alimentación

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Material

Front & Back cover: metal

Dimensiones

Camera: Φ 105 mm × 244.4 mm (4.1" × 9.6") With package: 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")

Camera: Approx. 700 g (1.5 lb.) With package: Approx. 1100 g (2.4 lb.)

Power Consumption and Current

-Z model: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W Without -Z model: 12 VDC, 0.6 A, max. 7 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W

Protección de la interfaz

IP66

Compresión estándar

H.264 +

Main stream supports

H.265 +

Main stream supports
