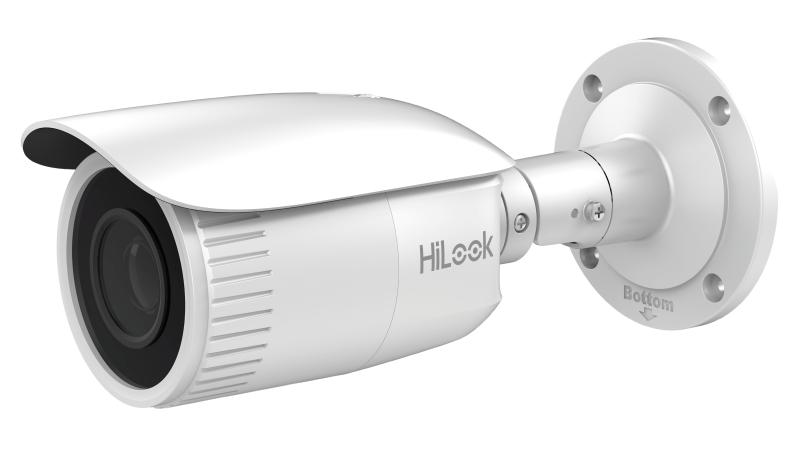

2 MP Varifocal Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP66)
-V: model with manual vari-focal lens
-Z: model with motorized vari-focal lens
Built-in microphone enhances safety with video/audio in tandem

View Less

Available models:

IPC-B621H-Z(2.8-8mm)(HiLookSTD)

IPC-B621H-Z/-V ^Discontinued

Especificación
Resources
Accesorios

Cámara
Sensor de imagen1/2.8" Progressive scan CMOS
Iluminación mínimaColor: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)
Velocidad de obturación1/3 s to 1/100, 000 s
Obturador lentoYes
Día y nocheIR cut filter
Wide dynamic rangeDigital WDR
Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lente
Lente2.8 to 8 mm
AperturaF1.9
FOVHorizontal field of view: 111° to 54.7°;Vertical field of view: 57.8° to 30.5°;Diagonal field of view: 134° to 63°
Montura del lenteΦ14

Iluminador
Rango IRUp to 20 m
Longitud de onda850 nm

Red
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
APIONVIF (PROFILE S, PROFILE G), ISAPI
Vista en vivo simultáneaUp to 6 channels
Usuario/operadorUp to 32 users,3 levels: Administrator, Operator and User
ClienteHiLookVision PC Client, HiLookVision App
Navegador webIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Vídeo
Max. Resolución1920 × 1080
Main stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Compresión de vídeoMain stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Vídeo bitrate32 Kbps to 8 Mbps

Audio
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Imagen
Mejora de la imagenBLC, 3D DNR
Ajuste de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Interruptor día/nocheDay/Night/Auto/Schedule

Interfaz
Interfaz de comunicación1 RJ45 self-adaptive Ethernet port
AudioBuilt-in mic

General
Versión de firmware5.5.82
Función generalOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Fuente de alimentación12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)
Consumo de energía y corriente-Z model: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W;Without -Z model: 12 VDC, 0.6 A, max. 7 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W
MaterialFront & Back cover: metal
DimensionesCamera: Φ 105 mm × 244.4 mm (4.1" × 9.6");With package: 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Camera: Approx. 700 g (1.5 lb.);With package: Approx. 1100 g (2.4 lb.)

Cámara

Sensor de imagen

1/2.8" Progressive scan CMOS

Iluminación mínima

Color: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)

Velocidad de obturación

1/3 s to 1/100, 000 s

Obturador lento

Yes

Día y noche

IR cut filter

Wide dynamic range

Digital WDR

Ajuste de ángulo

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lente

2.8 to 8 mm

Apertura

F1.9

FOV

Horizontal field of view: 111° to 54.7°;Vertical field of view: 57.8° to 30.5°;Diagonal field of view: 134° to 63°

Montura del lente

Φ14

Iluminador

Rango IR

Up to 20 m

Longitud de onda

850 nm

Red

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Vista en vivo simultánea

Up to 6 channels

Usuario/operador

Up to 32 users,3 levels: Administrator, Operator and User

Cliente

HiLookVision PC Client, HiLookVision App

Navegador web

IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Vídeo

Max. Resolución

1920 × 1080

Main stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Compresión de vídeo

Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Vídeo bitrate

32 Kbps to 8 Mbps

Audio

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM

Velocidad de bits de audio

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Imagen

Mejora de la imagen

BLC, 3D DNR

Ajuste de imagen

Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Interruptor día/noche

Day/Night/Auto/Schedule

Interfaz

Interfaz de comunicación

1 RJ45 self-adaptive Ethernet port

Audio

Built-in mic

General

Versión de firmware

5.5.82

Función general

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Fuente de alimentación

12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)

Consumo de energía y corriente

-Z model: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W;Without -Z model: 12 VDC, 0.6 A, max. 7 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W

Material

Front & Back cover: metal

Dimensiones

Camera: Φ 105 mm × 244.4 mm (4.1" × 9.6");With package: 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")

Camera: Approx. 700 g (1.5 lb.);With package: Approx. 1100 g (2.4 lb.)

Cámara

Sensor de imagen1/2.8" Progressive scan CMOS
Iluminación mínimaColor: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)
Velocidad de obturación1/3 s to 1/100, 000 s
Obturador lentoYes
Día y nocheIR cut filter
Wide dynamic rangeDigital WDR
Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lente

Lente2.8 to 8 mm
AperturaF1.9
FOVHorizontal field of view: 111° to 54.7°;Vertical field of view: 57.8° to 30.5°;Diagonal field of view: 134° to 63°
Montura del lenteΦ14

Iluminador

Rango IRUp to 20 m
Longitud de onda850 nm

Red

ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
APIONVIF (PROFILE S, PROFILE G), ISAPI
Vista en vivo simultáneaUp to 6 channels
Usuario/operadorUp to 32 users,3 levels: Administrator, Operator and User
ClienteHiLookVision PC Client, HiLookVision App
Navegador webIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Vídeo

Max. Resolución1920 × 1080
Main stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Compresión de vídeoMain stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Vídeo bitrate32 Kbps to 8 Mbps

Audio

Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Imagen

Mejora de la imagenBLC, 3D DNR
Ajuste de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Interruptor día/nocheDay/Night/Auto/Schedule

Interfaz

Interfaz de comunicación1 RJ45 self-adaptive Ethernet port
AudioBuilt-in mic

General

Versión de firmware5.5.82
Función generalOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Fuente de alimentación12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)
Consumo de energía y corriente-Z model: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W;Without -Z model: 12 VDC, 0.6 A, max. 7 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W
MaterialFront & Back cover: metal
DimensionesCamera: Φ 105 mm × 244.4 mm (4.1" × 9.6");With package: 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Camera: Approx. 700 g (1.5 lb.);With package: Approx. 1100 g (2.4 lb.)
