8-ch 1080p, H.264, 2 x HDD/SSD Mobile DVR

  • Supports 8-ch 2 MP analog cameras
  • Efficient H.264+ compression technology
  • Supports 2 × 2.5 inch HDDs/SSDs (up to 2 TB for each), and 1×SD (up to 256 GB)
  • Supports 3G/4G and Wi-Fi modules for communication
  • Supports GPS positioning
View Less
View more
Data Sheet
Sales Inquiry
DS-MP7508
Data Sheet

Specification

  • Video/Audio Input
  • Analog Camera8 TVI cameras, up to 1080p resolution
  • Two-way Audio1, integrated in EXT.DEV interface
  • Video/Audio Output
  • Video Output1 CVBS video output, 1 VGA video output
  • Storage
  • HDD/SSD2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD
  • External Interface
  • Network Interface1 × RJ45 10M/100M/1000M self-adaptive Ethernet interface

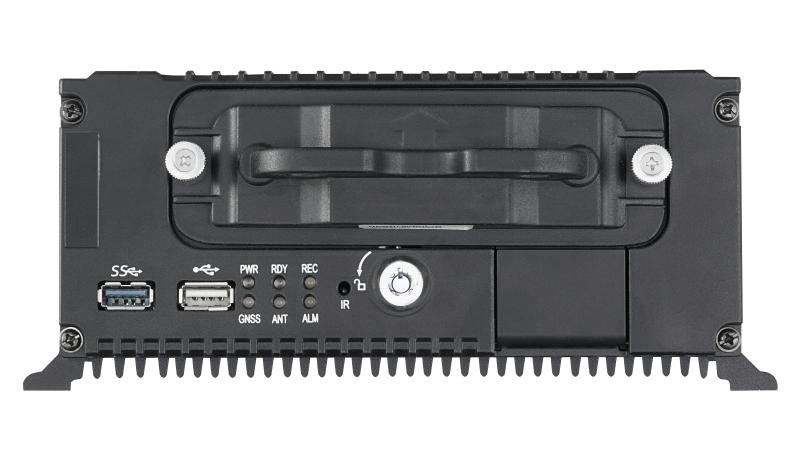

  • USB InterfaceFront panel: 1 × standard USB 2.0 and 1 × A-type USB 3.0 Rear panel: 1 × USB 2.0 of 5-pin aviation plug
  • Alarm Input4 high/low level signal inputs
  • Alarm Output2 relay signal outputs
  • Serial Port1 × RS-232, 1 × RS-422
  • Sensor-in4 high/low level signal inputs, 1 pulse signal inputs
  • Wireless Network
  • 3G/4G Dialing1 × 3G/4G card slot, 1 × Rosenberger antenna
  • Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna WI model: 1 × 2.4 G Wi-Fi SMA antenna
  • SD card1 × SD card slot, up to 256 GB
  • General
  • Working TemperatureDevice that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F) Other devices: -10 °C to +60 °C (14 °F to 140°F)
  • Working Humidity10% to 90%
  • Power Supply9 to 32 VDC
  • ConsumptionStandby: ≤ 0.5 W Full load: ≤ 99 W Note: Without peripheral and storage media: ≤ 20 W
  • Operating MethodMouse, IR remote control, and Web control
  • Dimensions (W × D × H)202 × 260.6 × 85.5mm (8.0 × 10.3 × 3.4 inch)
  • Weight (Without Storage Media)3 kg (6.6 lb)
  • Positioning
  • GNSS (Global Navigation Satellite System)GPS (Global Positioning System), 1 ×Rosenberger antenna
  • Encoding/Decoding Parameters
  • Video CompressionH.264, H.264+
  • Encoding ResolutionMain stream: 1080/720/WD1/4CIF, sub-Stream: 4CIF/2CIF/CIF
  • Frame RatePAL: 1 to 25fps, NTSC: 1 to 30fps;
  • Audio CompressionG.711
  • Stream TypeVideo, video & audio
  • Audio Bitrate16 Kbps
  • Dual StreamSupported
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video/Audio Input
Analog Camera
8 TVI cameras, up to 1080p resolution
Two-way Audio
1, integrated in EXT.DEV interface
Video/Audio Output
Video Output
1 CVBS video output, 1 VGA video output
Storage
HDD/SSD
2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD
External Interface
Network Interface
1 × RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB Interface
Front panel: 1 × standard USB 2.0 and 1 × A-type USB 3.0 Rear panel: 1 × USB 2.0 of 5-pin aviation plug
Alarm Input
4 high/low level signal inputs
Alarm Output
2 relay signal outputs
Serial Port
1 × RS-232, 1 × RS-422
Sensor-in
4 high/low level signal inputs, 1 pulse signal inputs
Wireless Network
3G/4G Dialing
1 × 3G/4G card slot, 1 × Rosenberger antenna
Wi-Fi
WI58 model: 2 × 5.8 G Wi-Fi SMA antenna WI model: 1 × 2.4 G Wi-Fi SMA antenna
SD card
1 × SD card slot, up to 256 GB
General
Working Temperature
Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F) Other devices: -10 °C to +60 °C (14 °F to 140°F)
Working Humidity
10% to 90%
Power Supply
9 to 32 VDC
Consumption
Standby: ≤ 0.5 W Full load: ≤ 99 W Note: Without peripheral and storage media: ≤ 20 W
Operating Method
Mouse, IR remote control, and Web control
Dimensions (W × D × H)
202 × 260.6 × 85.5mm (8.0 × 10.3 × 3.4 inch)
Weight (Without Storage Media)
3 kg (6.6 lb)
Positioning
GNSS (Global Navigation Satellite System)
GPS (Global Positioning System), 1 ×Rosenberger antenna
Encoding/Decoding Parameters
Video Compression
H.264, H.264+
Encoding Resolution
Main stream: 1080/720/WD1/4CIF, sub-Stream: 4CIF/2CIF/CIF
Frame Rate
PAL: 1 to 25fps, NTSC: 1 to 30fps;
Audio Compression
G.711
Stream Type
Video, video & audio
Audio Bitrate
16 Kbps
Dual Stream
Supported
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video/Audio Input
  • Analog Camera8 TVI cameras, up to 1080p resolution
  • Two-way Audio1, integrated in EXT.DEV interface
Video/Audio Output
  • Video Output1 CVBS video output, 1 VGA video output
Storage
  • HDD/SSD2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD
External Interface
  • Network Interface1 × RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • USB InterfaceFront panel: 1 × standard USB 2.0 and 1 × A-type USB 3.0 Rear panel: 1 × USB 2.0 of 5-pin aviation plug
  • Alarm Input4 high/low level signal inputs
  • Alarm Output2 relay signal outputs
  • Serial Port1 × RS-232, 1 × RS-422
  • Sensor-in4 high/low level signal inputs, 1 pulse signal inputs
Wireless Network
  • 3G/4G Dialing1 × 3G/4G card slot, 1 × Rosenberger antenna
  • Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna WI model: 1 × 2.4 G Wi-Fi SMA antenna
  • SD card1 × SD card slot, up to 256 GB
General
  • Working TemperatureDevice that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F) Other devices: -10 °C to +60 °C (14 °F to 140°F)
  • Working Humidity10% to 90%
  • Power Supply9 to 32 VDC
  • ConsumptionStandby: ≤ 0.5 W Full load: ≤ 99 W Note: Without peripheral and storage media: ≤ 20 W
  • Operating MethodMouse, IR remote control, and Web control
  • Dimensions (W × D × H)202 × 260.6 × 85.5mm (8.0 × 10.3 × 3.4 inch)
  • Weight (Without Storage Media)3 kg (6.6 lb)
Positioning
  • GNSS (Global Navigation Satellite System)GPS (Global Positioning System), 1 ×Rosenberger antenna
Encoding/Decoding Parameters
  • Video CompressionH.264, H.264+
  • Encoding ResolutionMain stream: 1080/720/WD1/4CIF, sub-Stream: 4CIF/2CIF/CIF
  • Frame RatePAL: 1 to 25fps, NTSC: 1 to 30fps;
  • Audio CompressionG.711
  • Stream TypeVideo, video & audio
  • Audio Bitrate16 Kbps
  • Dual StreamSupported
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
