DS-2DY9236I-CWX

EOL

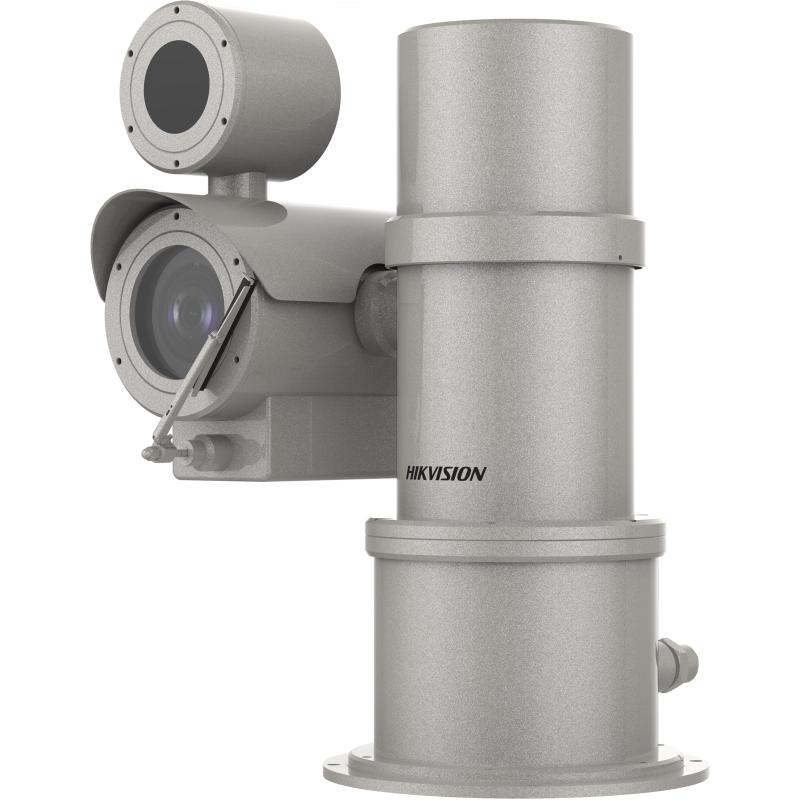

9-inch 2MP 36X DarkFighter Explosion Network Position system

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • 36x optical zoom provides close up views over expansive areas
  • Corrosion resistant to NEMA4X standard

View Less
View more
Sales Inquiry

Available models:

DS-2DY9236I-CWX(W/316L)
DS-2DY9236I-CWX
EOL

Specification

  • Lens
  • FOVHorizontal field of view: 59.8° to 2.0° (wide-tele),Vertical field of view: 35° to 1.1° (wide-tele),Diagonal field of view: 66.2° to 2.3° (wide-tele)
  • Zoom SpeedApprox. 4.4 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F4.5
  • Focal Length5.7 mm to 205 mm, 36× optical zoom
  • Image
  • Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • General
  • HeaterYes
  • MaterialSUS316L
  • Dimensions445 mm × 245 mm × 510 mm (17.52" × 9.65" × 20.08")
  • WeightApprox. 36.7 kg (80.91 lb)
  • Protection LevelIP68 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power100 VAC to 240 VAC,Max.: 100 W (Max. 15 W for IR)
  • Working Temperature-40°C to 60°C (-40°F to 140°F)
  • Working Humidity≤ 90%
  • Explosion-proof CertificateTUV 17 ATEX 8118: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IECEx TUR 17.0049: II 2 G Ex db IIC T6 Gb/ II 2 D Ex tb IIIC T80°C Db For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
  • Network
  • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS)
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.
  • Interface
  • BNC1.0V [p-p]/75 Ω, NTSC (or PAL) composite
  • Alarm Output2-ch alarm output
  • Alarm Input7-ch alarm input
  • Audio Input1-ch audio input
  • Audio Output1-ch audio output
  • Network Interface1 RJ45 10 M/100 M Ethernet
  • Compression Standard
  • H.264+Support
  • H.265+Support
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bitrate32 Kbps to 16384 Kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps (MP2L2)
  • SVCSupport
  • Camera Module
  • Image Sensor1/1.8" progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON),0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • GainAuto/Manual
  • Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB WDR
  • Supplement Light
  • IR Distance150 m
  • Smart IRSupport
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 50°/s, ,Preset speed: 50°/s
  • Movement Range (Tilt)From -90° to 90° (auto-flip)
  • Tilt SpeedConfigurable, from 0.1°/s to 40°/s,Preset Speed: 40°/s
  • Proportional ZoomSupport
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemorySupport
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • 3D PositioningSupport
  • PTZ Status DisplaySupport
  • Preset FreezingSupport
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
  • Smart Features
  • Basic Event DetectionMotion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
  • Smart DetectionFace Detection, Audio Exception Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection
  • Smart RecordDual-VCA
  • ROIMain stream, sub-stream, and third stream respectively support four fixed areas.
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Lens
FOV
Horizontal field of view: 59.8° to 2.0° (wide-tele),Vertical field of view: 35° to 1.1° (wide-tele),Diagonal field of view: 66.2° to 2.3° (wide-tele)
Zoom Speed
Approx. 4.4 s (optical lens, wide-tele)
Working Distance
10 mm to 1500 mm (wide-tele)
Aperture Range
F1.5 to F4.5
Focal Length
5.7 mm to 205 mm, 36× optical zoom
Image Enhancement
HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution
1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
General
Heater
Yes
Material
SUS316L
Dimensions
445 mm × 245 mm × 510 mm (17.52" × 9.65" × 20.08")
Weight
Approx. 36.7 kg (80.91 lb)
Protection Level
IP68 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power
100 VAC to 240 VAC,Max.: 100 W (Max. 15 W for IR)
Working Temperature
-40°C to 60°C (-40°F to 140°F)
Working Humidity
≤ 90%
Explosion-proof Certificate
TUV 17 ATEX 8118: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IECEx TUR 17.0049: II 2 G Ex db IIC T6 Gb/ II 2 D Ex tb IIIC T80°C Db For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS)
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Client
iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser
IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Alarm Linkage
Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.
Interface
BNC
1.0V [p-p]/75 Ω, NTSC (or PAL) composite
Alarm Output
2-ch alarm output
Alarm Input
7-ch alarm input
Audio Input
1-ch audio input
Audio Output
1-ch audio output
Network Interface
1 RJ45 10 M/100 M Ethernet
Compression Standard
H.264+
Support
H.265+
Support
H.264 Type
Baseline Profile/Main Profile/High Profile
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
H.265 Type
Main Profile
Video Bitrate
32 Kbps to 16384 Kbps
Audio Compression
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps (MP2L2)
SVC
Support
Camera Module
Image Sensor
1/1.8" progressive scan CMOS
Min. Illumination
Color: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON),0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Gain
Auto/Manual
Shutter Time
50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
Day & Night
IR Cut Filter
Digital Zoom
16×
Privacy Mask
24 programmable privacy masks
Focus Mode
Auto/Semi-automatic/Manual
WDR
120 dB WDR
Supplement Light
IR Distance
150 m
Smart IR
Support
PTZ
Movement Range (Pan)
360° endless
Pan Speed
Configurable, from 0.1°/s to 50°/s, ,Preset speed: 50°/s
Movement Range (Tilt)
From -90° to 90° (auto-flip)
Tilt Speed
Configurable, from 0.1°/s to 40°/s,Preset Speed: 40°/s
Proportional Zoom
Support
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
Support
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
Support
PTZ Status Display
Support
Preset Freezing
Support
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Smart Features
Basic Event Detection
Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
Smart Detection
Face Detection, Audio Exception Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection
Smart Record
Dual-VCA
ROI
Main stream, sub-stream, and third stream respectively support four fixed areas.
