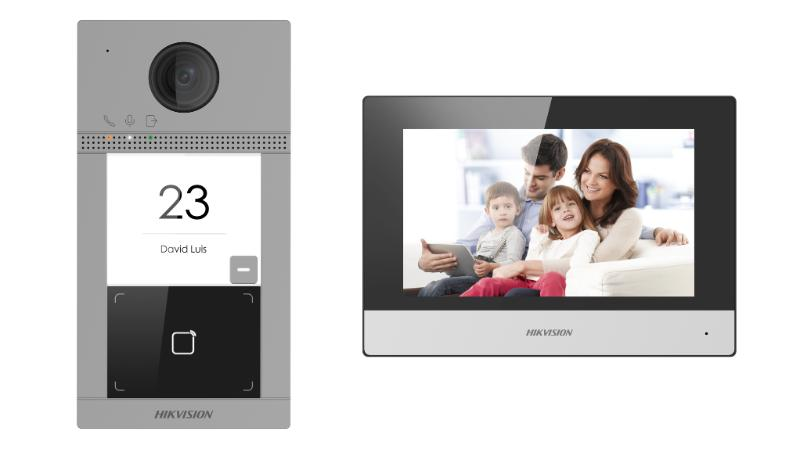

IP video intercom kit

  • Standard PoE
  • Noise suppression and echo cancellation
  • Configuration remotely via Web
  • Stores messages and captured pictures in the TF card
  • Remote unlocking via the client software or the mobile client
View Less
View more
Sales Inquiry

Available models:

DS-KIS604-S(C)
DS-KIS604-S(C)#EU

Specification

  • Door station/System parameters
  • Operation systemEmbedded Linux operation system
  • Flash32 M
  • RAM256 M
  • Door station/Video parameters
  • Supplement lightIR supplement
  • ResolutionMain stream : 1920 × 1080 Sub stream : 640 × 480
  • Lens1
  • WDRSupport
  • FOVHorizontal: 124° Vertical: 75°
  • Video compression standard H.264
  • Door station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker (more than 80 dB within 30 cm)
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustment Adjustable
  • Audio compression standard G.711 U, G.711 A
  • Audio compression Rate64 Kbps
  • Audio intercomTwo-way audio communication
  • Door station/Capacity parameters
  • User capacity2000
  • Door station/Network parameters
  • Network protocol TCP/IP, RTSP
  • Wi-FiWi-Fi 802.11 b/g/n
  • Wired network10/100 Mbps self-adaptive Ethernet
  • 3G/4G/
  • Bluetooth/
  • Door station/Device interfaces
  • Network interface1
  • RS-485 1
  • Wiegand0
  • Alarm input4
  • Lock control2
  • Exit button2 Max.
  • Door contact2
  • Alarm output0
  • Power interface1
  • TAMPER1
  • USB interface0
  • TF card1 (reserved)
  • Door station/General
  • Button1
  • Indicator3
  • Power consumption＜ 10 W
  • Power supplyIEEE802.3af, standard PoE 12 VDC
  • Working temperature-40° C to 53° C(-40° F to 127.4° F)
  • Working humidity10% to 95%
  • Dimension174 mm × 91 mm × 29 mm
  • Application environmentOutdoor
  • Protection level IP65, IK08
  • Weight380 g
  • InstallationSurface Mounting
  • Indoor station/System parameters
  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash 32 MB
  • Indoor station/Display parameters
  • Display screen7-inch colorful TFT screen
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen
  • Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U
  • Audio compression Rate64 Kbps
  • Indoor station/Network parameters
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • Wired network 10/100 Mbps self-adaptive
  • Wireless networkWi-Fi 802.11 b/g/n
  • ProtocolTCP/IP, SIP, RTSP
  • Indoor station/Device interfaces
  • RS-4851
  • Alarm input8-ch alarm inputs
  • Relay output2
  • TF cardMax to 32 G, SD 2.0 or lower version
  • Indoor station/General
  • Power consumption≤ 6 W
  • Power supplyStandard PoE,12VDC
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Door station/System parameters
Operation system
Embedded Linux operation system
Flash
32 M
RAM
256 M
Door station/Video parameters
Supplement light
IR supplement
Resolution
Main stream : 1920 × 1080 Sub stream : 640 × 480
Lens
1
WDR
Support
FOV
Horizontal: 124° Vertical: 75°
Video compression standard
H.264
Door station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker (more than 80 dB within 30 cm)
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Audio compression standard
G.711 U, G.711 A
Audio compression Rate
64 Kbps
Audio intercom
Two-way audio communication
Door station/Capacity parameters
User capacity
2000
Door station/Network parameters
Network protocol
TCP/IP, RTSP
Wi-Fi
Wi-Fi 802.11 b/g/n
Wired network
10/100 Mbps self-adaptive Ethernet
3G/4G
/
Bluetooth
/
Door station/Device interfaces
Network interface
1
RS-485
1
Wiegand
0
Alarm input
4
Lock control
2
Exit button
2 Max.
Door contact
2
Alarm output
0
Power interface
1
TAMPER
1
USB interface
0
TF card
1 (reserved)
Door station/General
Button
1
Indicator
3
Power consumption
＜ 10 W
Power supply
IEEE802.3af, standard PoE 12 VDC
Working temperature
-40° C to 53° C(-40° F to 127.4° F)
Working humidity
10% to 95%
Dimension
174 mm × 91 mm × 29 mm
Application environment
Outdoor
Protection level
IP65, IK08
Weight
380 g
Installation
Surface Mounting
Indoor station/System parameters
Operation system
Embedded Linux operation system
Memory
128 MB
Flash
32 MB
Indoor station/Display parameters
Display screen
7-inch colorful TFT screen
Display resolution
1024 × 600
Operation method
Capacitive touch screen
Indoor station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Audio compression standard
G.711 U
Audio compression Rate
64 Kbps
Indoor station/Network parameters
Network interface
1 RJ-45 10/100 Mbps self-adaptive
Wired network
10/100 Mbps self-adaptive
Wireless network
Wi-Fi 802.11 b/g/n
Protocol
TCP/IP, SIP, RTSP
Indoor station/Device interfaces
RS-485
1
Alarm input
8-ch alarm inputs
Relay output
2
TF card
Max to 32 G, SD 2.0 or lower version
Indoor station/General
Power consumption
≤ 6 W
Power supply
Standard PoE,12VDC
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
10% to 90%
Dimension (L x W x H)
200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Door station/System parameters
  • Operation systemEmbedded Linux operation system
  • Flash32 M
  • RAM256 M
Door station/Video parameters
  • Supplement lightIR supplement
  • ResolutionMain stream : 1920 × 1080 Sub stream : 640 × 480
  • Lens1
  • WDRSupport
  • FOVHorizontal: 124° Vertical: 75°
  • Video compression standard H.264
Door station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker (more than 80 dB within 30 cm)
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustment Adjustable
  • Audio compression standard G.711 U, G.711 A
  • Audio compression Rate64 Kbps
  • Audio intercomTwo-way audio communication
Door station/Capacity parameters
  • User capacity2000
Door station/Network parameters
  • Network protocol TCP/IP, RTSP
  • Wi-FiWi-Fi 802.11 b/g/n
  • Wired network10/100 Mbps self-adaptive Ethernet
  • 3G/4G/
  • Bluetooth/
Door station/Device interfaces
  • Network interface1
  • RS-485 1
  • Wiegand0
  • Alarm input4
  • Lock control2
  • Exit button2 Max.
  • Door contact2
  • Alarm output0
  • Power interface1
  • TAMPER1
  • USB interface0
  • TF card1 (reserved)
Door station/General
  • Button1
  • Indicator3
  • Power consumption＜ 10 W
  • Power supplyIEEE802.3af, standard PoE 12 VDC
  • Working temperature-40° C to 53° C(-40° F to 127.4° F)
  • Working humidity10% to 95%
  • Dimension174 mm × 91 mm × 29 mm
  • Application environmentOutdoor
  • Protection level IP65, IK08
  • Weight380 g
  • InstallationSurface Mounting
Indoor station/System parameters
  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash 32 MB
Indoor station/Display parameters
  • Display screen7-inch colorful TFT screen
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen
Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U
  • Audio compression Rate64 Kbps
Indoor station/Network parameters
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • Wired network 10/100 Mbps self-adaptive
  • Wireless networkWi-Fi 802.11 b/g/n
  • ProtocolTCP/IP, SIP, RTSP
Indoor station/Device interfaces
  • RS-4851
  • Alarm input8-ch alarm inputs
  • Relay output2
  • TF cardMax to 32 G, SD 2.0 or lower version
Indoor station/General
  • Power consumption≤ 6 W
  • Power supplyStandard PoE,12VDC
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.2.65_231213
Firmware_V2.2.96_241111
Version C Villa Door Stations V2.2.65_231213
Applied to:
DS-KIS604-S(C)
