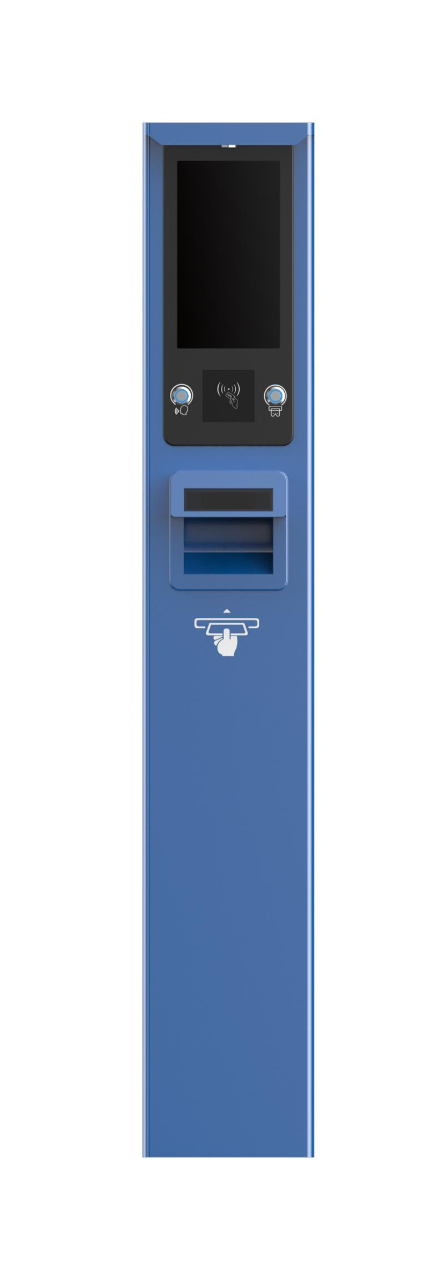

Entrance Ticket Station

10.1 inch wide temperature high brightness LCD screen, support text, two-dimensional code and other information display, support picture, video loop playback
Device integrated IC card reader, support card upload
The device contains 1 relay-out interface, which can be used for remote control barrier
Support real-time voice intercom function, Integrated echo cancellation and noise cancellation technology
Increase the paper damping to prevent the paper from falling off
roll paper diameter up to 15cm, can be used for a longer time
the maximum thickness of the paper can be 120g/1㎡, thicker and harder, to ensure that the printing receipt is maintained for a longer time

View Less

Ficha Técnica

Modelos disponibles:

DS-TMT201-D(LCD)

DS-TMT201-D

Especificación
Resources
Accesorios

Ficha Técnica

Impresora
Print Modethermal printing
Paper Width57mm
Roll Outside Diameter150 mm
Roll Inside Diameter12±1 mm
ObservacionesThe length of ticket depends on the contents you set, the upper margin is 1.5cm, the bottom margin is 1cm

Audio
Audio EncodingG.711U
Velocidad de bits de audio64 Kbps
Entrada de AudioAll-directional microphone
Salida de audioloudspeaker 5.5W
Calidad de audioEcho suppression, Noise cancellation
Two-Way Audio ModeFull duplex two-way voice intercom

Red
Protocolo de interfazTCP/IP

Pantalla de visualización
Screen Type10.1 inch LCD screen 1080P

Interfaz
Entrada de alarma2
Salida de alarma2
Interfaz de red10M/100M self-adaption × 1

lector de tarjetas
Card Reader TypeIC card, CPU card
Card Reader Frequency13.56MHz

General
Working Temperature and Humidity-40°C ~ 70°C 10% ~ 95%
Fuente de alimentación220V 50Hz
Consumo de energía<100W 220VAC
Dimensiones230 × 248 × 1386 mm (9.06 × 9.76 × 54.57 inch)
16.86 kg (37.17 lb.)
Weight (with Package)19.51 kg (43.01 lb.)
Dimensions (with Package)320 × 360 × 1492 mm (12.6 × 14.17 × 58.74 inch)
Sistema operativoEmbedded Linux System

Impresora

Print Mode

thermal printing

Paper Width

57mm

Roll Outside Diameter

150 mm

Roll Inside Diameter

12±1 mm

Observaciones

The length of ticket depends on the contents you set, the upper margin is 1.5cm, the bottom margin is 1cm

Audio

Audio Encoding

G.711U

Velocidad de bits de audio

64 Kbps

Entrada de Audio

All-directional microphone

Salida de audio

loudspeaker 5.5W

Calidad de audio

Echo suppression, Noise cancellation

Two-Way Audio Mode

Full duplex two-way voice intercom

Red

Protocolo de interfaz

TCP/IP

Pantalla de visualización

Screen Type

10.1 inch LCD screen 1080P

Interfaz

Entrada de alarma

Salida de alarma

Interfaz de red

10M/100M self-adaption × 1

lector de tarjetas

Card Reader Type

IC card, CPU card

Card Reader Frequency

13.56MHz

General

Working Temperature and Humidity

-40°C ~ 70°C 10% ~ 95%

Fuente de alimentación

220V 50Hz

Consumo de energía

<100W 220VAC

Dimensiones

230 × 248 × 1386 mm (9.06 × 9.76 × 54.57 inch)

16.86 kg (37.17 lb.)

Weight (with Package)

19.51 kg (43.01 lb.)

Dimensions (with Package)

320 × 360 × 1492 mm (12.6 × 14.17 × 58.74 inch)

Sistema operativo

Embedded Linux System
