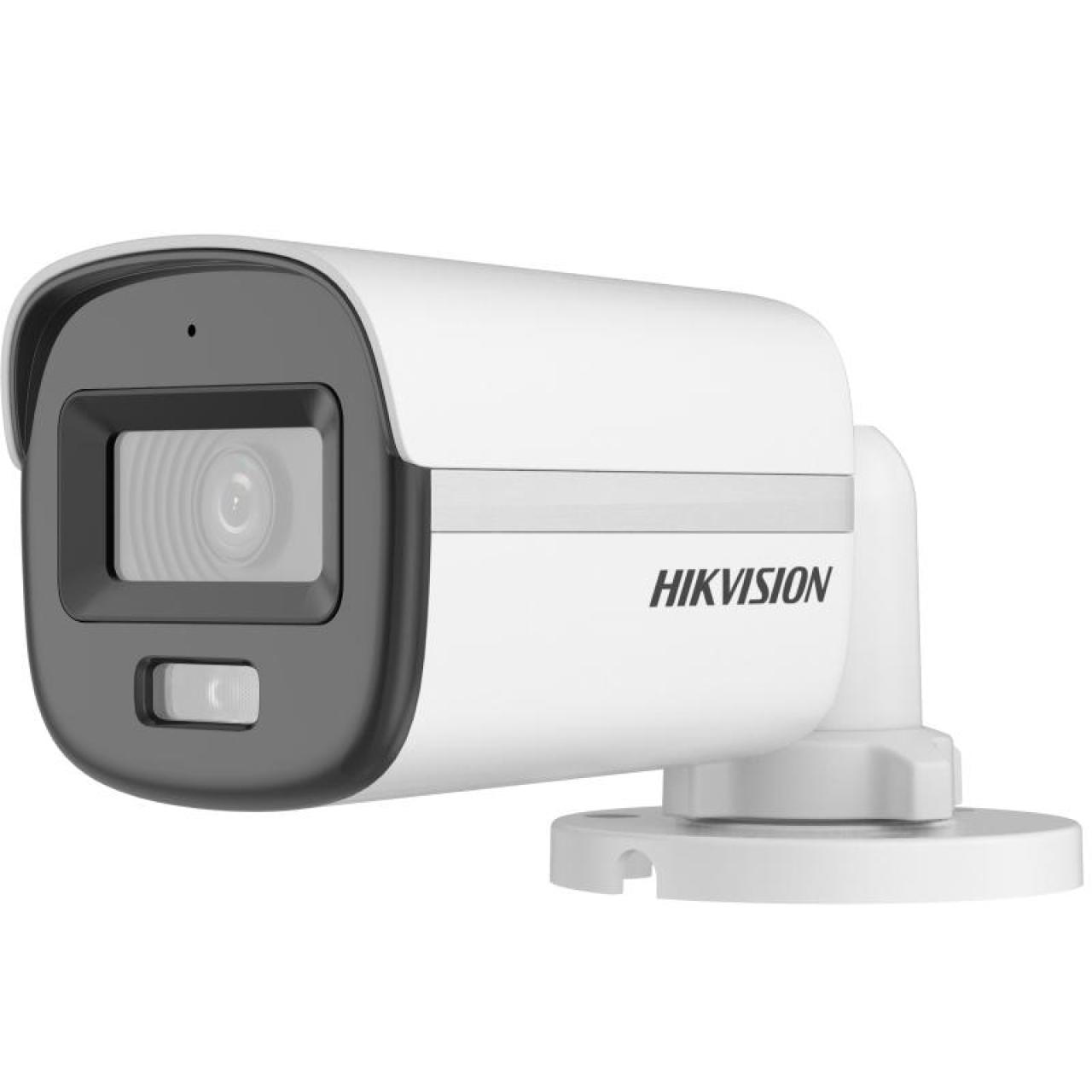

3K ColorVu Audio Fixed Mini Bullet Camera

  • High quality imaging with 3K, 2960 × 1665 resolution
  • 24/7 color imaging with F1.0 aperture
  • 2.8 mm, 3.6 mm fixed focal lens
  • Up to 20 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)
  • High quality audio with audio over coaxial cable, built-in mic
View Less
View more

Modelos disponibles:

DS-2CE10KF0T-FS(2.8mm)
DS-2CE10KF0T-FS(3.6mm)

Especificación

  • Cámara
  • Sensor de imagen3K CMOS
  • Señal del sistemaPAL/NTSC
  • Max. Resolución2960 (H) × 1665 (V)
  • Iluminación mínima0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Tiempo de obturaciónPAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Día y Noche24/7 Color Imaging
  • Ajuste de ánguloPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • Lente
  • Lente2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
  • Montura del lenteM12
  • Iluminador
  • Tipo de luz suplementariaWhite Light
  • Rango de luz suplementariaUp to 20 m
  • Imagen
  • Frame RateTVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC
  • Wide Dynamic Range (WDR)Digital WDR
  • Interruptor de parámetros de imagenSTD/HIGH-SAT/HIGHLIGHT
  • Modo día/nocheColor
  • Balance de blancosAuto/Outdoor/Global/Manual
  • Mejora de la imagenDWDR, BLC, HLC, Global, HLS
  • Reducción de ruido2D DNR
  • Configuración de imagenBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC
  • Interfaz
  • Salida de VídeoSwitchable TVI/AHD/CVI/CVBS
  • AlarmaSolid Light Alarm (White Light)
  • AudioBuilt-in mic
  • General
  • IdiomaEnglish
  • Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • MaterialMetal
  • ComunicaciónHIKVISION-C
  • Dimensión161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
  • Approx. 404 g (0.89 lb.)
  • alimentación12 VDC ± 25%, Max. 2.5 W, *You are recommended to use one power adapter to supply the power for one camera.
  • Certificaciones
  • ProtecciónIP67

Especificación

Especificación
Cámara
  • Sensor de imagen3K CMOS
  • Señal del sistemaPAL/NTSC
  • Max. Resolución2960 (H) × 1665 (V)
  • Iluminación mínima0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Tiempo de obturaciónPAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Día y Noche24/7 Color Imaging
  • Ajuste de ánguloPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Lente
  • Lente2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
  • Montura del lenteM12
Iluminador
  • Tipo de luz suplementariaWhite Light
  • Rango de luz suplementariaUp to 20 m
Imagen
  • Frame RateTVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC
  • Wide Dynamic Range (WDR)Digital WDR
  • Interruptor de parámetros de imagenSTD/HIGH-SAT/HIGHLIGHT
  • Modo día/nocheColor
  • Balance de blancosAuto/Outdoor/Global/Manual
  • Mejora de la imagenDWDR, BLC, HLC, Global, HLS
  • Reducción de ruido2D DNR
  • Configuración de imagenBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC
Interfaz
  • Salida de VídeoSwitchable TVI/AHD/CVI/CVBS
  • AlarmaSolid Light Alarm (White Light)
  • AudioBuilt-in mic
General
  • IdiomaEnglish
  • Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • MaterialMetal
  • ComunicaciónHIKVISION-C
  • Dimensión161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
  • Approx. 404 g (0.89 lb.)
  • alimentación12 VDC ± 25%, Max. 2.5 W, *You are recommended to use one power adapter to supply the power for one camera.
Certificaciones
  • ProtecciónIP67
