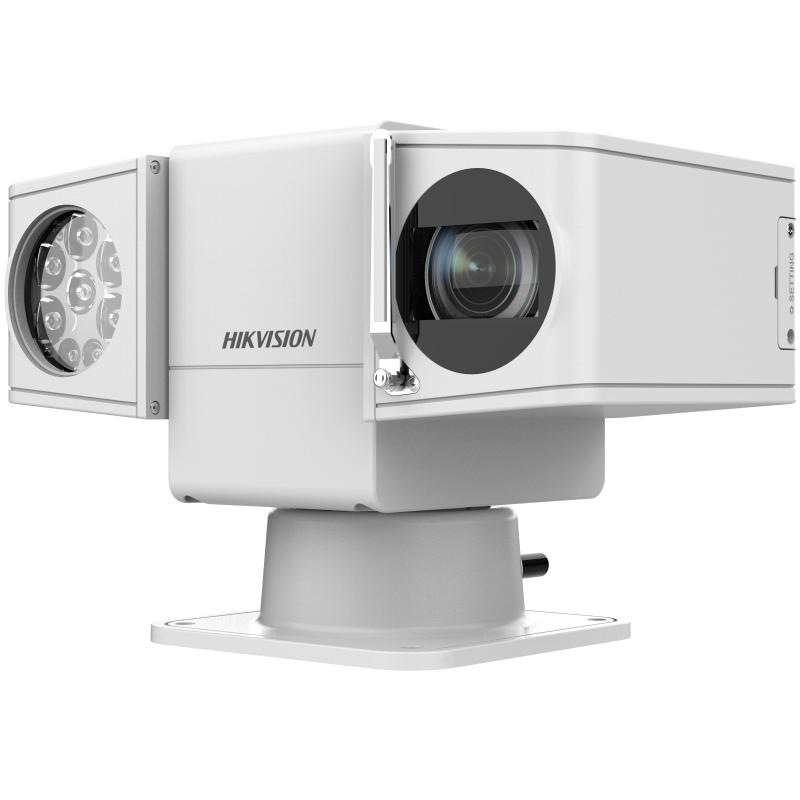

5-inch 2 MP 25X DarkFighter IR Network Positioning System

1/1.8" progressive scan CMOS
Up to 1920 × 1080 @ 30 fps resolution
Min. illumination: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @(F1.5, AGC ON), 0 Lux with IR
25 × optical zoom, 16 × digital zoom
Low bit rate, true WDR, Defog, Smart IR
Power-off memory, proportional zoom
Up to 250 m IR distance
Support Hi-PoE

View Less

Ficha Técnica

Modelos disponibles:

DS-2DY5225IX-AE(T5)

DS-2DY5225IX-DM(T5)

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen1/1.8＂ progressive scan CMOS
Max. Resolución1920 × 1080
Iluminación mínimacolor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Velocidad de obturación1/1s~1/30000 s
Día y NocheICR
Zoom25 × optical, 16 × digital
Obturador lentoYes

Lente
Longitud focal5.9~147.5 mm，25 × optical
FOVHorizontal FOV: 55.4° to 2.1° (wide-tele), Vertical FOV: 32.4° to1.2° (wide-tele), Diagonal FOV: 62° to 3.3° (wide-tele)
EnfoqueAuto/Semi-automatic/Manual
AperturaF1.5
Velocidad del Zoomapprox. 4.8 s

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementaria250 m
Luz de suplemento inteligenteYes

PTZ
Rango de movimiento (pan)360° endless
Rango de movimiento (tilt)From +90° to -90° (auto flip)
Velocidad de movimiento horizontal (pan)Configurable, from 0.1°/s to 150°/s, Preset speed: 150°/s
Velocidad de vertical (tilt)Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s
Proportional PanYes
Preajustes300
Congelación preestablecidaYes
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans, record time over 10 minutes for each scan
Acción del parquePreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
Posicionamiento 3DYes
Pantalla de estado de PTZYes
Tarea programadaPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Memoria de apagadoYes

Vídeo
Main stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoMain Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16384 Kbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Codificación de video escalable (SVC)Support
Región de interés (ROI)8 fixed regions for each stream

Audio
Compresión de audioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/48 kHz
Filtro de ruido ambientalYes

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users, 3 user levels: administrator, operator, and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Almacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClienteiVMS-4200, HikCentral Pro, Hik-Connect
Navegador webIE11, Chrome 57+, Firefox 52+, Safari 11+

Imagen
Interruptor de parámetros de imagenYes
Configuración de imagenSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Interruptor día/nocheDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB WDR
SNR≥52dB
DesempañarDigital defog
Image StabilizationEIS
Mejora de la imagenBLC, HLC, 3D DNR
Máscara de privacidad24 programmable polygon privacy masks, mask color or mosaic configurable
Enfoque regionalYes
Exposición regionalYes

Interfaz
Ethernet Interface1 RJ45 10 M/100 M Ethernet
Almacenamiento a bordosupport microSD/microSDHC/microSDXC cards, up to 256 GB
Audio1-ch audio input and 1-ch audio output
Alarma7-ch alarm input and 2-ch alarm output
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ReiniciarYes

Evento
Evento BásicoMotion detection, video tampering alarm, exception, alarm input and output
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Seguimiento inteligenteManual tracking, Event tracking

Deep Learning Function
Captura de la caraSupport detecting up to 10 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

General
alimentación24 VAC, 3 A, max. 45 W, including max. 1.6 W for heater and 10 W for IR 36 VDC Hi-POE, 42.5~57 V| 1.41 A
DimensiónØ332 mm × 182 mm × 222 mm (Ø 13.07" × 7.17" × 8.74")
Approx. 7.7 kg (16.98 lb.)
MaterialADC12
Operating ConditionTemperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%
Limpiador de lenteYes

Certificaciones
ProtecciónIP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Cámara

Sensor de imagen

1/1.8＂ progressive scan CMOS

Max. Resolución

1920 × 1080

Iluminación mínima

color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR

Velocidad de obturación

1/1s~1/30000 s

Día y Noche

ICR

Zoom

25 × optical, 16 × digital

Obturador lento

Yes

Lente

Longitud focal

5.9~147.5 mm，25 × optical

FOV

Horizontal FOV: 55.4° to 2.1° (wide-tele), Vertical FOV: 32.4° to1.2° (wide-tele), Diagonal FOV: 62° to 3.3° (wide-tele)

Enfoque

Auto/Semi-automatic/Manual

Apertura

F1.5

Velocidad del Zoom

approx. 4.8 s

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

250 m

Luz de suplemento inteligente

Yes

PTZ

Rango de movimiento (pan)

360° endless

Rango de movimiento (tilt)

From +90° to -90° (auto flip)

Velocidad de movimiento horizontal (pan)

Configurable, from 0.1°/s to 150°/s, Preset speed: 150°/s

Velocidad de vertical (tilt)

Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s

Proportional Pan

Yes

Preajustes

300

Congelación preestablecida

Yes

Escaneo de patrulla

8 patrols, up to 32 presets for each patrol

Patrón de escaneo

4 pattern scans, record time over 10 minutes for each scan

Acción del parque

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

Posicionamiento 3D

Yes

Pantalla de estado de PTZ

Yes

Tarea programada

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Memoria de apagado

Yes

Vídeo

Main stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Compresión de vídeo

Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16384 Kbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Codificación de video escalable (SVC)

Support

Región de interés (ROI)

8 fixed regions for each stream

Audio

Compresión de audio

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Velocidad de bits de audio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/48 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Vista en vivo simultánea

Up to 20 channels

API

Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Usuario/operador

Up to 32 users, 3 user levels: administrator, operator, and user

Seguridad

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)

Almacenamiento en red

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Cliente

iVMS-4200, HikCentral Pro, Hik-Connect

Navegador web

IE11, Chrome 57+, Firefox 52+, Safari 11+

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Interruptor día/noche

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB WDR

SNR

≥52dB

Desempañar

Digital defog

Image Stabilization

EIS

Mejora de la imagen

BLC, HLC, 3D DNR

Máscara de privacidad

24 programmable polygon privacy masks, mask color or mosaic configurable

Enfoque regional

Yes

Exposición regional

Yes

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M Ethernet

Almacenamiento a bordo

support microSD/microSDHC/microSDXC cards, up to 256 GB

Audio

1-ch audio input and 1-ch audio output

Alarma

7-ch alarm input and 2-ch alarm output

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reiniciar

Yes

Evento

Evento Básico

Motion detection, video tampering alarm, exception, alarm input and output

Evento inteligente

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Seguimiento inteligente

Manual tracking, Event tracking

Deep Learning Function

Captura de la cara

Support detecting up to 10 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

General

alimentación

24 VAC, 3 A, max. 45 W, including max. 1.6 W for heater and 10 W for IR 36 VDC Hi-POE, 42.5~57 V| 1.41 A

Dimensión

Ø332 mm × 182 mm × 222 mm (Ø 13.07" × 7.17" × 8.74")

Approx. 7.7 kg (16.98 lb.)

Material

ADC12

Operating Condition

Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%

Limpiador de lente

Yes

Certificaciones

Protección

IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Cámara

Sensor de imagen1/1.8＂ progressive scan CMOS
Max. Resolución1920 × 1080
Iluminación mínimacolor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Velocidad de obturación1/1s~1/30000 s
Día y NocheICR
Zoom25 × optical, 16 × digital
Obturador lentoYes

Lente

Longitud focal5.9~147.5 mm，25 × optical
FOVHorizontal FOV: 55.4° to 2.1° (wide-tele), Vertical FOV: 32.4° to1.2° (wide-tele), Diagonal FOV: 62° to 3.3° (wide-tele)
EnfoqueAuto/Semi-automatic/Manual
AperturaF1.5
Velocidad del Zoomapprox. 4.8 s

Iluminador

Tipo de luz suplementariaIR
Rango de luz suplementaria250 m
Luz de suplemento inteligenteYes

PTZ

Rango de movimiento (pan)360° endless
Rango de movimiento (tilt)From +90° to -90° (auto flip)
Velocidad de movimiento horizontal (pan)Configurable, from 0.1°/s to 150°/s, Preset speed: 150°/s
Velocidad de vertical (tilt)Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s
Proportional PanYes
Preajustes300
Congelación preestablecidaYes
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans, record time over 10 minutes for each scan
Acción del parquePreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
Posicionamiento 3DYes
Pantalla de estado de PTZYes
Tarea programadaPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Memoria de apagadoYes

Vídeo

Main stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoMain Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16384 Kbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Codificación de video escalable (SVC)Support
Región de interés (ROI)8 fixed regions for each stream

Audio

Compresión de audioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/48 kHz
Filtro de ruido ambientalYes

Red

ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users, 3 user levels: administrator, operator, and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Almacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClienteiVMS-4200, HikCentral Pro, Hik-Connect
Navegador webIE11, Chrome 57+, Firefox 52+, Safari 11+

Imagen

Interruptor de parámetros de imagenYes
Configuración de imagenSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Interruptor día/nocheDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB WDR
SNR≥52dB
DesempañarDigital defog
Image StabilizationEIS
Mejora de la imagenBLC, HLC, 3D DNR
Máscara de privacidad24 programmable polygon privacy masks, mask color or mosaic configurable
Enfoque regionalYes
Exposición regionalYes

Interfaz

Ethernet Interface1 RJ45 10 M/100 M Ethernet
Almacenamiento a bordosupport microSD/microSDHC/microSDXC cards, up to 256 GB
Audio1-ch audio input and 1-ch audio output
Alarma7-ch alarm input and 2-ch alarm output
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ReiniciarYes

Evento

Evento BásicoMotion detection, video tampering alarm, exception, alarm input and output
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Seguimiento inteligenteManual tracking, Event tracking

Deep Learning Function

Captura de la caraSupport detecting up to 10 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

General

alimentación24 VAC, 3 A, max. 45 W, including max. 1.6 W for heater and 10 W for IR 36 VDC Hi-POE, 42.5~57 V| 1.41 A
DimensiónØ332 mm × 182 mm × 222 mm (Ø 13.07" × 7.17" × 8.74")
Approx. 7.7 kg (16.98 lb.)
MaterialADC12
Operating ConditionTemperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%
Limpiador de lenteYes
