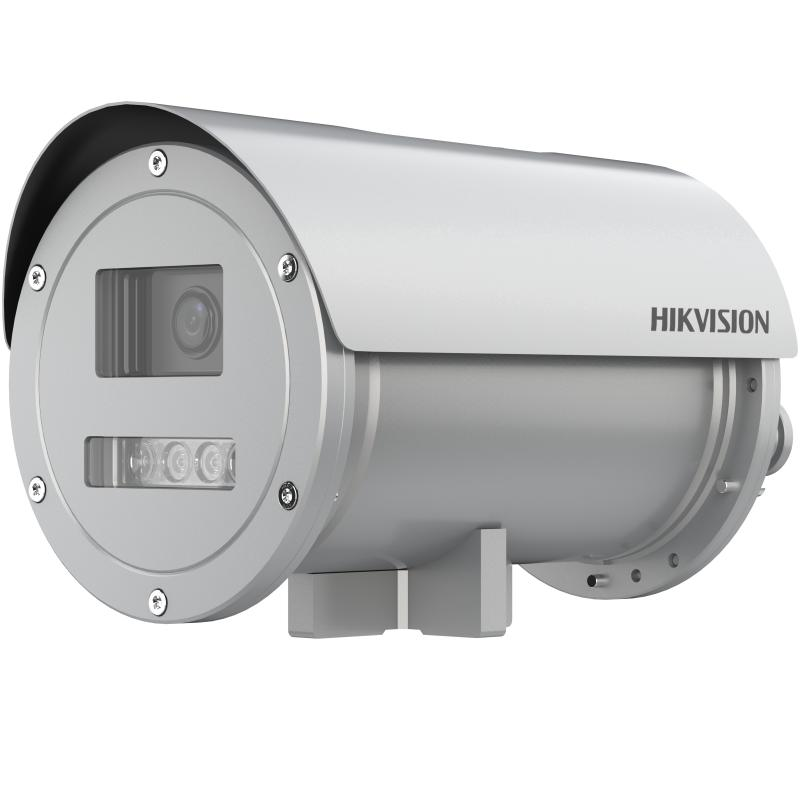

EXIR Motorized Varifocal Bullet Explosion-Proof Network Camera

Explosion-proof design: the camera has passed international ATEX & IECEx certifications, and can be used in gas and dust hazardous scenarios
316L stainless steel enclosure, protecting the camera from damage caused by sparks or corrosive materials
IP68 water resistant, preventing water ingress for outdoor use
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
AC 100 V to 240 V wide range power supply: easy to deploy cables and safer compared to a power adapter solution

View Less

Ficha Técnica

Modelos disponibles:

DS-2XE6845G0-LZHS(8-32mm)

DS-2XE6845G0-IZHS(2.8-12mm)

DS-2XE6845G0-IZHS(8-32mm)

DS-2XE6845G0-(I)(L)Z(H)(S)

EOL

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen1/2.8″ Progressive Scan CMOS
Max. Resolución2688 × 1520
Iluminación mínimaColor: 0.009 Lux @ (F1.2, AGC ON), B/W: 0.0009 Lux @ (F1.2, AGC ON), 0 Lux with IR
Tiempo de obturación1 s to 1/100,000 s
Día y NocheIR cut filter

Lente
LenteVarifocal lens, 2.8 to 12 mm and 8 to 32 mm lens
Focal Length & FOV2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48° 8 to 32 mm, horizontal FOV 43° to 15°, vertical FOV 23° to 9°, diagonal FOV 50° to 17°
Montura del lenteIntegrated
EnfoqueAuto, semi-auto, manual
Iris TypeAuto-iris, DC drive
Apertura2.8 to 12 mm: F1.4 8 to 32 mm: F1.7, constant F1.7 throughout the zoom range

DORI
DORI2.8 to 12 mm: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m 8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Iluminador
Tipo de luz suplementaria-I model: IR -L model: white light
Rango de luz suplementaria-I model: up to 100 m IR range -L model: up to 30 m white light range
IR Wavelength-I model: 850 nm

Vídeo
Main stream50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Vídeo bitrate32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR,VBR
Codificación de video escalable (SVC)H.265 and H.264 support
Región de interés (ROI)5 fixed regions for each stream
Recorte objetivoYes

Audio
Tipo de audioMono sound
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3)
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Vista en vivo simultáneaUp to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Almacenamiento en redSupport microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect, Hik-Central
Navegador web Plug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari12+ Local service: Chrome 57.0+, Firefox 52.0+

Imagen
Interruptor de parámetros de imagenYes
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Interruptor día/nocheDay, Night, Auto, Schedule, Alarm Trigger (-S), Video Trigger
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image StabilizationEIS
Mejora de la imagenBLC, HLC, Defog, 3D DNR
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interfaz
Salida de Vídeo1Vp-p Composite Output (75 Ω/BNC)
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port, optical interface FC -S: RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Audio-S: 1 line in/out
Alarma-S: 1 input, 1 output (max. 24 VDC, 1 A or 110 VAC 500 mA)

Evento
Evento Básico Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)) Scene change detection, audio exception detection (-S model), defocus detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output (-S model), trigger recording, trigger capture, audible warning

Deep Learning Function
Detección de cascosDetects up to 30 human targets simultaneously Supports up to 4 shield regions
MetadatosMetadata of road traffic is supported
Tráfico por carretera y detección de vehículosBlocklist and allowlist: up to 10,000 records; Captures vehicle that has no license plate; Support license plate recognition of motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

General
alimentación-L: 100 to 240 VAC, 0.4 A, max. 22 W, terminal block; PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 22 W -I: 100 to 240 VAC, 0.4 A, max. 18 W, terminal block; PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 18 W
Dimensión352 × 200 × 214 mm (13.6" × 7.9" × 8.4")
Dimensión del paquete438 × 283 × 303 mm (17.2" × 11.1" × 11.9")
14 kg (37.5 lb.)
Con peso del paquete15 kg (40.2 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-H model: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing) Without -H model: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Idioma32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Función generalAnti-flicker, 5 streams and 5 custom streams, heartbeat, mirror, privacy mask, pixel counter
Calentador-H: Yes

Certificaciones
EMCFCC: FCC-SDoC(ANSI C63.4, FCC Part15 sub B) CE: CE-EMC(EN 55024: 2010 + A1: 2015, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013) RCM: AS/NZS 60950.1: 2003 + Am1, Am2 and Am3, AS/NZS CISPR 32: 2015 IC: IC-VoC(ICES-003 Issue 7: 2020)
SeguridadUL: UL 60950-1: 2014, CAN/CSA C22.2 No. 60950-1-07: 2014 UL: Class I, Zone 1, AEx db IIC T6 Zone 21, AEx tb IIIC T80°C Ex db IIC T6 Gb X Ex tb IIIC T80°C Db X CB: IEC IEC 60079-0 CE: CE-LVD(EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013) BIS: IS 13252(Part 1)2010 + A1: 2013 + A2: 2015
ProtecciónIP68: IEC 60529-2013
Protección a prueba de explosionesATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 For explosive gas atmospheres, the maximum surface temperature is 85°C For flammable dust atmospheres, the maximum surface temperature is 80°C IIC: for explosive gas atmospheres other than mines susceptible to firedamp For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
Protección anticorrosivaNEMA 4X (NEMA 250-2014) C5 (ISO 6270-1, ISO 9227)

Cámara

Sensor de imagen

1/2.8″ Progressive Scan CMOS

Max. Resolución

2688 × 1520

Iluminación mínima

Color: 0.009 Lux @ (F1.2, AGC ON), B/W: 0.0009 Lux @ (F1.2, AGC ON), 0 Lux with IR

Tiempo de obturación

1 s to 1/100,000 s

Día y Noche

IR cut filter

Lente

Varifocal lens, 2.8 to 12 mm and 8 to 32 mm lens

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48° 8 to 32 mm, horizontal FOV 43° to 15°, vertical FOV 23° to 9°, diagonal FOV 50° to 17°

Montura del lente

Integrated

Enfoque

Auto, semi-auto, manual

Iris Type

Auto-iris, DC drive

Apertura

2.8 to 12 mm: F1.4 8 to 32 mm: F1.7, constant F1.7 throughout the zoom range

DORI

2.8 to 12 mm: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m 8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Iluminador

Tipo de luz suplementaria

-I model: IR -L model: white light

Rango de luz suplementaria

-I model: up to 100 m IR range -L model: up to 30 m white light range

IR Wavelength

-I model: 850 nm

Vídeo

Main stream

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Fifth Stream

50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Vídeo bitrate

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR,VBR

Codificación de video escalable (SVC)

H.265 and H.264 support

Región de interés (ROI)

5 fixed regions for each stream

Recorte objetivo

Yes

Audio

Tipo de audio

Mono sound

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

Velocidad de bits de audio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3)

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets

Vista en vivo simultánea

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator and user

Seguridad

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Almacenamiento en red

Support microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador web

Plug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari12+ Local service: Chrome 57.0+, Firefox 52.0+

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Interruptor día/noche

Day, Night, Auto, Schedule, Alarm Trigger (-S), Video Trigger

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image Stabilization

EIS

Mejora de la imagen

BLC, HLC, Defog, 3D DNR

Superposición de imagen

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interfaz

Salida de Vídeo

1Vp-p Composite Output (75 Ω/BNC)

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port, optical interface FC -S: RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

On-Board Storage

Built-in microSD/SDHC/SDXC slot, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Audio

-S: 1 line in/out

Alarma

-S: 1 input, 1 output (max. 24 VDC, 1 A or 110 VAC 500 mA)

Evento

Evento Básico

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection

Evento inteligente

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)) Scene change detection, audio exception detection (-S model), defocus detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output (-S model), trigger recording, trigger capture, audible warning

Deep Learning Function

Detección de cascos

Detects up to 30 human targets simultaneously Supports up to 4 shield regions

Metadatos

Metadata of road traffic is supported

Tráfico por carretera y detección de vehículos

Blocklist and allowlist: up to 10,000 records; Captures vehicle that has no license plate; Support license plate recognition of motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

General

alimentación

-L: 100 to 240 VAC, 0.4 A, max. 22 W, terminal block; PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 22 W -I: 100 to 240 VAC, 0.4 A, max. 18 W, terminal block; PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 18 W

Dimensión

352 × 200 × 214 mm (13.6" × 7.9" × 8.4")

Dimensión del paquete

438 × 283 × 303 mm (17.2" × 11.1" × 11.9")

14 kg (37.5 lb.)

Con peso del paquete

15 kg (40.2 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-H model: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing) Without -H model: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Idioma

32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Función general

Anti-flicker, 5 streams and 5 custom streams, heartbeat, mirror, privacy mask, pixel counter

Calentador

-H: Yes

Certificaciones

EMC

FCC: FCC-SDoC(ANSI C63.4, FCC Part15 sub B) CE: CE-EMC(EN 55024: 2010 + A1: 2015, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013) RCM: AS/NZS 60950.1: 2003 + Am1, Am2 and Am3, AS/NZS CISPR 32: 2015 IC: IC-VoC(ICES-003 Issue 7: 2020)

Seguridad

UL: UL 60950-1: 2014, CAN/CSA C22.2 No. 60950-1-07: 2014 UL: Class I, Zone 1, AEx db IIC T6 Zone 21, AEx tb IIIC T80°C Ex db IIC T6 Gb X Ex tb IIIC T80°C Db X CB: IEC IEC 60079-0 CE: CE-LVD(EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013) BIS: IS 13252(Part 1)2010 + A1: 2013 + A2: 2015

Protección

IP68: IEC 60529-2013

Protección a prueba de explosiones

ATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 For explosive gas atmospheres, the maximum surface temperature is 85°C For flammable dust atmospheres, the maximum surface temperature is 80°C IIC: for explosive gas atmospheres other than mines susceptible to firedamp For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.

Protección anticorrosiva

NEMA 4X (NEMA 250-2014) C5 (ISO 6270-1, ISO 9227)

Cámara

Sensor de imagen1/2.8″ Progressive Scan CMOS
Max. Resolución2688 × 1520
Iluminación mínimaColor: 0.009 Lux @ (F1.2, AGC ON), B/W: 0.0009 Lux @ (F1.2, AGC ON), 0 Lux with IR
Tiempo de obturación1 s to 1/100,000 s
Día y NocheIR cut filter

Lente

LenteVarifocal lens, 2.8 to 12 mm and 8 to 32 mm lens
Focal Length & FOV2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48° 8 to 32 mm, horizontal FOV 43° to 15°, vertical FOV 23° to 9°, diagonal FOV 50° to 17°
Montura del lenteIntegrated
EnfoqueAuto, semi-auto, manual
Iris TypeAuto-iris, DC drive
Apertura2.8 to 12 mm: F1.4 8 to 32 mm: F1.7, constant F1.7 throughout the zoom range

DORI

DORI2.8 to 12 mm: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m 8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Iluminador

Tipo de luz suplementaria-I model: IR -L model: white light
Rango de luz suplementaria-I model: up to 100 m IR range -L model: up to 30 m white light range
IR Wavelength-I model: 850 nm

Vídeo

Main stream50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Vídeo bitrate32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR,VBR
Codificación de video escalable (SVC)H.265 and H.264 support
Región de interés (ROI)5 fixed regions for each stream
Recorte objetivoYes

Audio

Tipo de audioMono sound
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3)
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtro de ruido ambientalYes

Red

ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Vista en vivo simultáneaUp to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Almacenamiento en redSupport microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect, Hik-Central
Navegador web Plug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari12+ Local service: Chrome 57.0+, Firefox 52.0+

Imagen

Interruptor de parámetros de imagenYes
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Interruptor día/nocheDay, Night, Auto, Schedule, Alarm Trigger (-S), Video Trigger
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image StabilizationEIS
Mejora de la imagenBLC, HLC, Defog, 3D DNR
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interfaz

Salida de Vídeo1Vp-p Composite Output (75 Ω/BNC)
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port, optical interface FC -S: RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Audio-S: 1 line in/out
Alarma-S: 1 input, 1 output (max. 24 VDC, 1 A or 110 VAC 500 mA)

Evento

Evento Básico Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)) Scene change detection, audio exception detection (-S model), defocus detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output (-S model), trigger recording, trigger capture, audible warning

Deep Learning Function

Detección de cascosDetects up to 30 human targets simultaneously Supports up to 4 shield regions
MetadatosMetadata of road traffic is supported
Tráfico por carretera y detección de vehículosBlocklist and allowlist: up to 10,000 records; Captures vehicle that has no license plate; Support license plate recognition of motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

General

alimentación-L: 100 to 240 VAC, 0.4 A, max. 22 W, terminal block; PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 22 W -I: 100 to 240 VAC, 0.4 A, max. 18 W, terminal block; PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 18 W
Dimensión352 × 200 × 214 mm (13.6" × 7.9" × 8.4")
Dimensión del paquete438 × 283 × 303 mm (17.2" × 11.1" × 11.9")
14 kg (37.5 lb.)
Con peso del paquete15 kg (40.2 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-H model: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing) Without -H model: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Idioma32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Función generalAnti-flicker, 5 streams and 5 custom streams, heartbeat, mirror, privacy mask, pixel counter
Calentador-H: Yes

Certificaciones

EMCFCC: FCC-SDoC(ANSI C63.4, FCC Part15 sub B) CE: CE-EMC(EN 55024: 2010 + A1: 2015, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013) RCM: AS/NZS 60950.1: 2003 + Am1, Am2 and Am3, AS/NZS CISPR 32: 2015 IC: IC-VoC(ICES-003 Issue 7: 2020)
SeguridadUL: UL 60950-1: 2014, CAN/CSA C22.2 No. 60950-1-07: 2014 UL: Class I, Zone 1, AEx db IIC T6 Zone 21, AEx tb IIIC T80°C Ex db IIC T6 Gb X Ex tb IIIC T80°C Db X CB: IEC IEC 60079-0 CE: CE-LVD(EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013) BIS: IS 13252(Part 1)2010 + A1: 2013 + A2: 2015
ProtecciónIP68: IEC 60529-2013
Protección a prueba de explosionesATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 For explosive gas atmospheres, the maximum surface temperature is 85°C For flammable dust atmospheres, the maximum surface temperature is 80°C IIC: for explosive gas atmospheres other than mines susceptible to firedamp For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
Protección anticorrosivaNEMA 4X (NEMA 250-2014) C5 (ISO 6270-1, ISO 9227)
