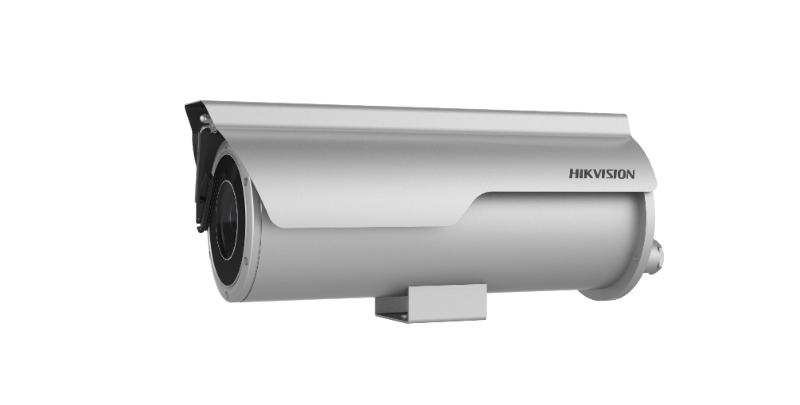

EXIR Motorized Varifocal Bullet Anti-Corrosion Network Camera

316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
A built-in wiper removes water and dust on the screen and ensures clear images when the camera is used in dusty or damp environments
IP67 water resistant, preventing water ingress for outdoor use
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements

View Less

Modelos disponibles:

DS-2XC6645G0-IZHRS(2.8-12mm)

DS-2XC6645G0-IZHRS(8-32mm)

DS-2XC6645G0

EOL

Especificación
Resources
Accesorios

Cámara
Sensor de imagen1/1.8″ Progressive Scan CMOS
Max. Resolución2688 × 1520
Iluminación mínimaColor: 0.0005 Lux @(F1.2, AGC ON) B/W: 0.0001 Lux @(F1.2，AGC ON), 0 Lux with IR
Tiempo de obturación1/3 s to 1/100,000 s
Día y NocheIR cut filter

Lente
LenteMotorized focal length, 2.8 to 12 mm, 8 to 32 mm
Focal Length & FOV2.8 to 12 mm, F1.4: horizontal field of view, 94.2° to 38.1° 8 to 32 mm, F1.7: horizontal field of view, 42.2° to 15.1°
EnfoqueAuto, semi-auto, manual

Iluminador
Rango de luz suplementaria2.8~12 mm: 80 m, 8~32 mm: 150 m
IR Wavelength850 nm

Vídeo
Main streamH.264/H.265: 50 Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-streamH.264/H.265/MJPEG: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third StreamH.264/H.265: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Compresión de videoMain stream: H.265/H.264/H.264+/H.265+ Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Vídeo bitrate32 Kbps~8Mbps
Tipo H.264BaseLine Profile/Main Profile/High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR, VBR
Codificación de video escalable (SVC)H.265 and H.264 support
Región de interés (ROI)1 fixed regions for main stream and sub-stream
Recorte objetivoYes

Audio
Tipo de audioMono sound
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
Vista en vivo simultáneaUp to 6 channels
APIOpen Network Video Interface, ISAPI, SDK, Ehome
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
Almacenamiento en redMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect, Hik-Central
Navegador webPlug-in required live view: IE8+, Chrome41.0~44, Firefox30.0~51, Safari8.0~11 Plug-in free live view: Chrome45.0+, Firefox52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge

Imagen
Interruptor de parámetros de imagenYes
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interruptor día/nocheDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 50db
Mejora de la imagenBLC, HLC, 3D DNR, Defog, EIS
Máscara de privacidadYes

Interfaz
Salida de Vídeo1Vp-p composite output (75 Ω/BNC)
Ethernet InterfaceRJ45 10M/100M self-adaptive Ethernet port
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Alarma1 input, 1 output (max. 24 VDC, 1 A or 110 VAC, 500 mA)
Reset KeyYes

Evento
Evento BásicoException (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, defocus detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

General
alimentación24 VAC ± 20%, 1.7A, 50/60Hz, 40 W PoE: 802.3at, 42.5 V to 57 V, 0.57 A to 0.43 A, Max: 24 W
Dimensión179.9 mm × 203.2 mm × 472 mm (7.08" × 8" × 18.58")
10.95 kg (24.14 lb.)
Condiciones de inicio y funcionamiento-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
Función generalAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Certificaciones
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SeguridadUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Ambiente2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtecciónIP67
Protección anticorrosivaNEMA 4X C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.
