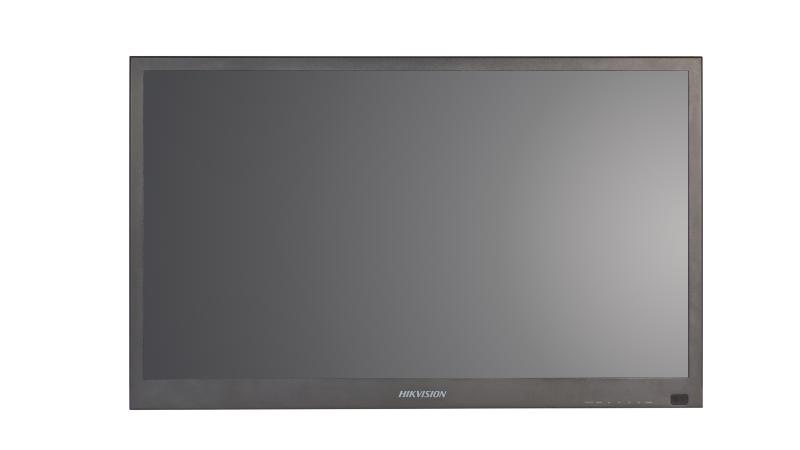

49-inch FHD Monitor

  • LED backlit technology with full HD 1920 x1080
  • 49" LED backlight monitor
  • Image processing: 3D comb filter, 3D De-interlace, 3D noise reduction
  • Multiple interfaces: HDMI, VGA, DVI, BNC input, audio in, audio out, USB
  • Built-in speaker
  • Wide viewing angle: Horizontal 178°, Vertical 178°
  • 24/7 operation
  • Industrial grade A+ LCD panel
  • Designed for surveillance, high reliability and stability
  • Abundant varieties of interfaces: BNC, VGA, digital interface and diversified interfaces
  • 16.7 million color, display picture perfectly
  • Support horizontal and vertical display
  • Horizontal 178°, Vertical 178°
  • Dedicated project RS232 interface
  • Build-in loudspeaker, audio visual connection
  • VESA standard
  • Metal shell
View Less
View more
Sales Inquiry

Available models:

DS-D5049FL
DS-D5049FL
DS-D5049FL Discontinued

Specification

  • General
  • Loudspeaker3W x 2
  • VESAM6 300 mm × 200 mm
  • Dimensions(W*H*D)1141.18 mm × 677.5 mm × 69 mm
  • Packing Dimensions(W*H*D)1520mm × 965mm × 245mm
  • Gross Weight32.0 Kg
  • Net Weight24.65 Kg
  • Storage Temperature-20°C ~ 60°C(-4℉ ~ 140℉)
  • Power SupplyAC 100~240V, 50/60 Hz
  • Working Temperature0 °C ~ 40 °C(32℉ ~ 104℉)
  • Working Humidity10% ~ 90% (No Condensation)
  • Storage Humidity10%~90% (No Condensation)
  • Standby Power Consumption< 1 W(Standby)
  • Power Consumption≤ 60 W
  • Color of CasingBlack
  • Interfaces
  • RS-232 interface1
  • HDMI Input1
  • VGA Input1
  • DVI Input1
  • BNC Input1
  • Audio Input1
  • Audio Output1
  • USB Interface1
  • RS-232 Interface1
  • USB interface1
  • Accessories
  • Power Cord1
  • Remote control1
  • User Manual1
  • Warranty Card1
  • Remote Control1
  • CD1
  • Battery2
  • Power cord1
  • User manual1
  • Warranty card1
  • Monitor
  • BacklightLED Backlight
  • Screen Size48.5”
  • Pixel Pitch0.55926 mm x 0.55926 mm
  • Max Resolution1920 x 1080
  • Brightness450 cd/m² (Typical)
  • Contrast45.834027777777777
  • Response Time12 ms
  • Color16.7 M
  • Active Area1073.78(H) mm x 604 (V) mm
  • Viewing AngleHorizontal 178°, Vertical 178°
  • Bracket
  • PedestalOptional DS-DM4901B
  • Wall MountedOptional DS-DM4255W
  • Wall mountedOptional DS-DM4255W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Loudspeaker
3W x 2
VESA
M6 300 mm × 200 mm
Dimensions(W*H*D)
1141.18 mm × 677.5 mm × 69 mm
Packing Dimensions(W*H*D)
1520mm × 965mm × 245mm
Gross Weight
32.0 Kg
Net Weight
24.65 Kg
Storage Temperature
-20°C ~ 60°C(-4℉ ~ 140℉)
Power Supply
AC 100~240V, 50/60 Hz
Working Temperature
0 °C ~ 40 °C(32℉ ~ 104℉)
Working Humidity
10% ~ 90% (No Condensation)
Storage Humidity
10%~90% (No Condensation)
Standby Power Consumption
< 1 W(Standby)
Power Consumption
≤ 60 W
Color of Casing
Black
Interfaces
RS-232 interface
1
HDMI Input
1
VGA Input
1
DVI Input
1
BNC Input
1
Audio Input
1
Audio Output
1
USB Interface
1
RS-232 Interface
1
USB interface
1
Accessories
Power Cord
1
Remote control
1
User Manual
1
Warranty Card
1
Remote Control
1
CD
1
Battery
2
Power cord
1
User manual
1
Warranty card
1
Monitor
Backlight
LED Backlight
Screen Size
48.5”
Pixel Pitch
0.55926 mm x 0.55926 mm
Max Resolution
1920 x 1080
Brightness
450 cd/m² (Typical)
Contrast
45.834027777777777
Response Time
12 ms
Color
16.7 M
Active Area
1073.78(H) mm x 604 (V) mm
Viewing Angle
Horizontal 178°, Vertical 178°
Bracket
Pedestal
Optional DS-DM4901B
Wall Mounted
Optional DS-DM4255W
Wall mounted
Optional DS-DM4255W
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
General
  • Loudspeaker3W x 2
  • VESAM6 300 mm × 200 mm
  • Dimensions(W*H*D)1141.18 mm × 677.5 mm × 69 mm
  • Packing Dimensions(W*H*D)1520mm × 965mm × 245mm
  • Gross Weight32.0 Kg
  • Net Weight24.65 Kg
  • Storage Temperature-20°C ~ 60°C(-4℉ ~ 140℉)
  • Power SupplyAC 100~240V, 50/60 Hz
  • Working Temperature0 °C ~ 40 °C(32℉ ~ 104℉)
  • Working Humidity10% ~ 90% (No Condensation)
  • Storage Humidity10%~90% (No Condensation)
  • Standby Power Consumption< 1 W(Standby)
  • Power Consumption≤ 60 W
  • Color of CasingBlack
Interfaces
  • RS-232 interface1
  • HDMI Input1
  • VGA Input1
  • DVI Input1
  • BNC Input1
  • Audio Input1
  • Audio Output1
  • USB Interface1
  • RS-232 Interface1
  • USB interface1
Accessories
  • Power Cord1
  • Remote control1
  • User Manual1
  • Warranty Card1
  • Remote Control1
  • CD1
  • Battery2
  • Power cord1
  • User manual1
  • Warranty card1
Monitor
  • BacklightLED Backlight
  • Screen Size48.5”
  • Pixel Pitch0.55926 mm x 0.55926 mm
  • Max Resolution1920 x 1080
  • Brightness450 cd/m² (Typical)
  • Contrast45.834027777777777
  • Response Time12 ms
  • Color16.7 M
  • Active Area1073.78(H) mm x 604 (V) mm
  • Viewing AngleHorizontal 178°, Vertical 178°
Bracket
  • PedestalOptional DS-DM4901B
  • Wall MountedOptional DS-DM4255W
  • Wall mountedOptional DS-DM4255W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.2.0_180824
