DS-D2055NL-B/G

    EOL

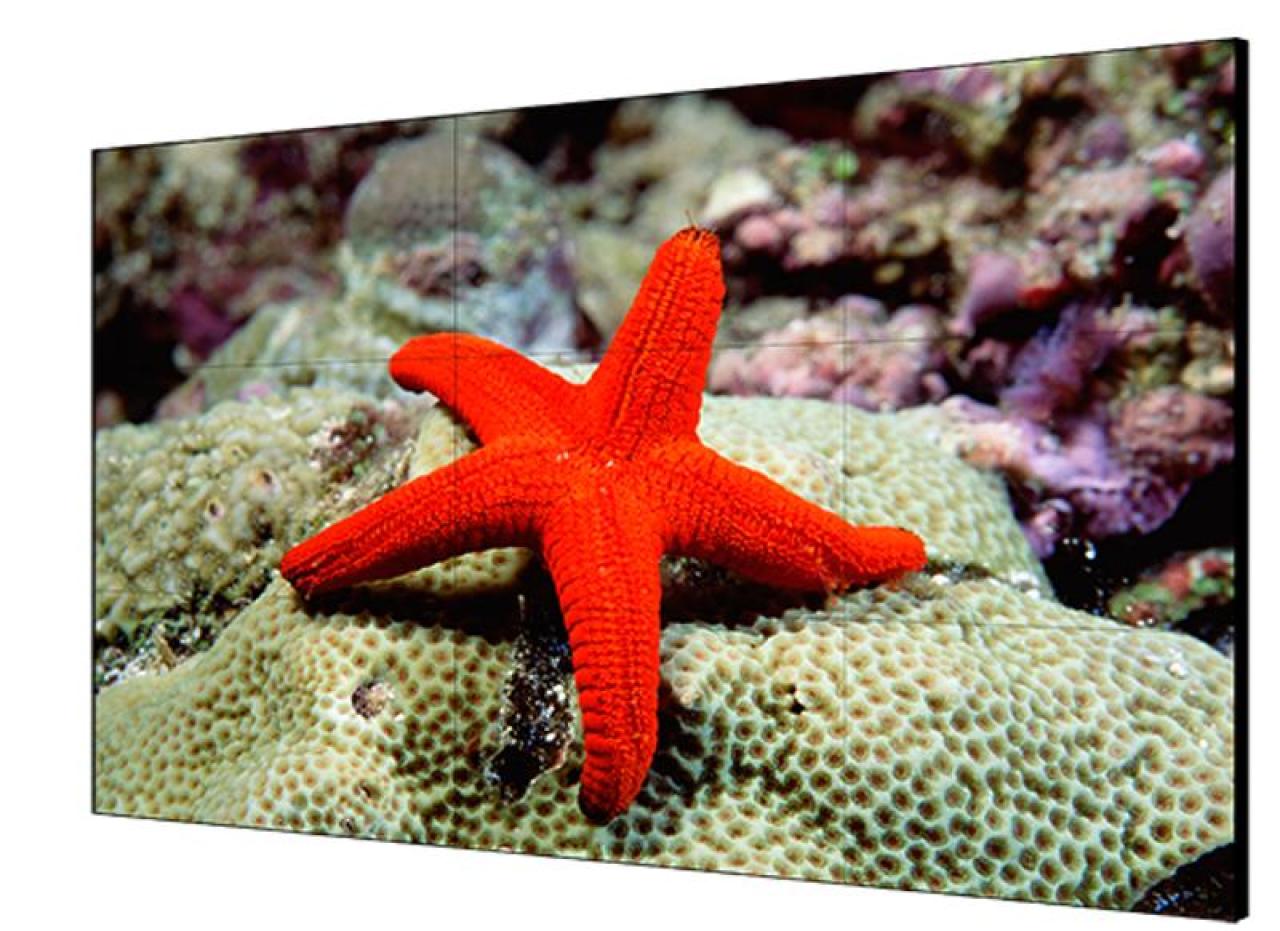

    55-inch 3.5mm LCD Display Unit

    • LED Direct-lit backlight with uniform brightness and no boundary shadow
    • Resolution:1920×1080
    • High display resolution, and delicate image with rich color
    • High definition; high brightness; high color gamut
    • DID LCD screen with 178° wide angle
    • Large display area and light weight
    • Longer display lifespan
    • Multiple jointing methods, applicable for various scenes
    • Ultra-slim bi-side seam
    • Stable running and low maintenance cost, supporting 24 hours continuous working
    • Working humidity: 10%~85%, able to work under harsh environment
    View Less
    View more

    Available models:

    DS-D2055NL-B/G
    DS-D2055NL-B/G

    Specification

    • Display
    • Visual AngleHorizontal: 178°, Vertical: 178°
    • Screen Moving Area (H×V)1209.6mm×680.4mm(47.62″×26.79″)
    • Response Time12ms (G to G)
    • Resolution1920×1080
    • PanelIPS
    • Dot Pitch (H×V)0.63mm×0.63mm (0.025″×0.025″)
    • Diagonal Size (inch)55″
    • Contrast4000:1
    • Color Saturation0.92
    • Color16.7M
    • Brightness500cd/㎡
    • BacklightLED Backlight (Direct type)
    • Interface
    • Input InterfaceVGA×1, DVI×1, BNC×1, YPbPr×1, HDMI×1
    • Output InterfaceVGA×1, DVI×1, BNC×2
    • Control InterfaceIn: RS-232×1, Out: RS-232×2
    • Working Environment
    • Working Life≥60,000 Hours
    • Operating Temperature0 °C ~ 40 °C (32 °F ~ 104 °F)
    • Operating Humidity10%~85% (No Condensation)
    • Power
    • Power Requirement90~264VAC
    • Power Consumption192W
    • Physical Features
    • Dimension (W×H×D)1213.5mm×684.3mm×112.9mm (47.78″×26.94″×4.44″)
    • Frame Width0.09″ (Left/Upper),0.047″ (Right/Lower)
    • Side Frame Size
    • Physical Seam3.5 mm (0.14″)
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Display
    Visual Angle
    Horizontal: 178°, Vertical: 178°
    Screen Moving Area (H×V)
    1209.6mm×680.4mm(47.62″×26.79″)
    Response Time
    12ms (G to G)
    Resolution
    1920×1080
    Panel
    IPS
    Dot Pitch (H×V)
    0.63mm×0.63mm (0.025″×0.025″)
    Diagonal Size (inch)
    55″
    Contrast
    4000:1
    Color Saturation
    0.92
    Color
    16.7M
    Brightness
    500cd/㎡
    Backlight
    LED Backlight (Direct type)
    Interface
    Input Interface
    VGA×1, DVI×1, BNC×1, YPbPr×1, HDMI×1
    Output Interface
    VGA×1, DVI×1, BNC×2
    Control Interface
    In: RS-232×1, Out: RS-232×2
    Working Environment
    Working Life
    ≥60,000 Hours
    Operating Temperature
    0 °C ~ 40 °C (32 °F ~ 104 °F)
    Operating Humidity
    10%~85% (No Condensation)
    Power
    Power Requirement
    90~264VAC
    Power Consumption
    192W
    Physical Features
    Dimension (W×H×D)
    1213.5mm×684.3mm×112.9mm (47.78″×26.94″×4.44″)
    Frame Width
    0.09″ (Left/Upper),0.047″ (Right/Lower)
    Side Frame Size
    Physical Seam
    3.5 mm (0.14″)
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Display
    • Visual AngleHorizontal: 178°, Vertical: 178°
    • Screen Moving Area (H×V)1209.6mm×680.4mm(47.62″×26.79″)
    • Response Time12ms (G to G)
    • Resolution1920×1080
    • PanelIPS
    • Dot Pitch (H×V)0.63mm×0.63mm (0.025″×0.025″)
    • Diagonal Size (inch)55″
    • Contrast4000:1
    • Color Saturation0.92
    • Color16.7M
    • Brightness500cd/㎡
    • BacklightLED Backlight (Direct type)
    Interface
    • Input InterfaceVGA×1, DVI×1, BNC×1, YPbPr×1, HDMI×1
    • Output InterfaceVGA×1, DVI×1, BNC×2
    • Control InterfaceIn: RS-232×1, Out: RS-232×2
    Working Environment
    • Working Life≥60,000 Hours
    • Operating Temperature0 °C ~ 40 °C (32 °F ~ 104 °F)
    • Operating Humidity10%~85% (No Condensation)
    Power
    • Power Requirement90~264VAC
    • Power Consumption192W
    Physical Features
    • Dimension (W×H×D)1213.5mm×684.3mm×112.9mm (47.78″×26.94″×4.44″)
    • Frame Width0.09″ (Left/Upper),0.047″ (Right/Lower)
    Side Frame Size
    • Physical Seam3.5 mm (0.14″)
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Firmware

    Firmware_V1.5.3_180731
    Applied to:
    DS-D2055NL-B/G
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
