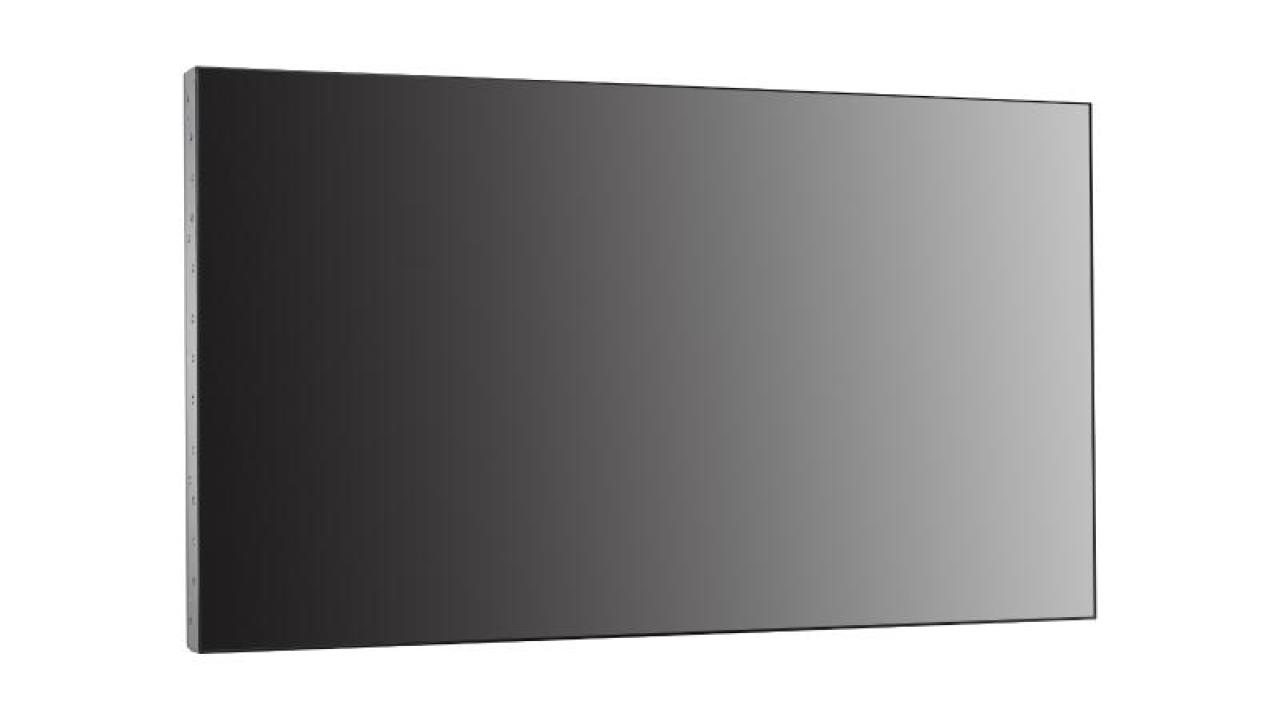

46-inch 5.5mm LCD Display Unit

  • 46 inch LCD video wall
  • Ultra slim design: 5.3 mm bezel-to-bezel
  • Cost-effective solution for video walls
  • Self-splicing function easily provides 4K resolution
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D2046NL-B
DS-D2046NL-B
EOL
Data Sheet

Specification

  • Display
  • Visual AngleHorizontal: 178°, Vertical: 178°
  • Screen Moving Area (H×V)1018.08mm×572.67mm (40.08″×22.55″)
  • Response Time8ms (G to G)
  • Resolution1920×1080
  • PanelS-PVA
  • Dot Pitch (H×V)0.53025mm×0.53025mm(0.021″×0.021″)
  • Diagonal Size (inch)46″
  • Contrast187.50069444444443
  • Color Saturation0.92
  • Color16.7M
  • Brightness500cd/㎡
  • BacklightLED Backlight (Direct type)
  • Interface
  • Input InterfaceVGA×1, DVI×1, BNC×1, YPbPr×1, HDMI×1
  • Output InterfaceVGA×1, DVI×1, BNC×2
  • Control InterfaceRJ45 for RS-232
  • Working Environment
  • Working Life≥60,000 Hours
  • Operating Temperature0 °C ~ 40 °C (32 °F ~ 104 °F)
  • Operating Humidity10%~85% (No Condensation)
  • Power
  • Power Requirement90~264VAC, 50/60Hz
  • Power Consumption111 W
  • Physical Features
  • Dimension (W×H×D)1023.8mm×579mm×132mm (40.31″×22.77″×5.20″ )
  • Frame Width0.14″ (Left/Upper),0.067″ (Right/Lower)
  • Side Frame Size
  • Physical Seam5.3 mm (0.21″)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Visual Angle
Horizontal: 178°, Vertical: 178°
Screen Moving Area (H×V)
1018.08mm×572.67mm (40.08″×22.55″)
Response Time
8ms (G to G)
Resolution
1920×1080
Panel
S-PVA
Dot Pitch (H×V)
0.53025mm×0.53025mm(0.021″×0.021″)
Diagonal Size (inch)
46″
Contrast
187.50069444444443
Color Saturation
0.92
Color
16.7M
Brightness
500cd/㎡
Backlight
LED Backlight (Direct type)
Interface
Input Interface
VGA×1, DVI×1, BNC×1, YPbPr×1, HDMI×1
Output Interface
VGA×1, DVI×1, BNC×2
Control Interface
RJ45 for RS-232
Working Environment
Working Life
≥60,000 Hours
Operating Temperature
0 °C ~ 40 °C (32 °F ~ 104 °F)
Operating Humidity
10%~85% (No Condensation)
Power
Power Requirement
90~264VAC, 50/60Hz
Power Consumption
111 W
Physical Features
Dimension (W×H×D)
1023.8mm×579mm×132mm (40.31″×22.77″×5.20″ )
Frame Width
0.14″ (Left/Upper),0.067″ (Right/Lower)
Side Frame Size
Physical Seam
5.3 mm (0.21″)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Visual AngleHorizontal: 178°, Vertical: 178°
  • Screen Moving Area (H×V)1018.08mm×572.67mm (40.08″×22.55″)
  • Response Time8ms (G to G)
  • Resolution1920×1080
  • PanelS-PVA
  • Dot Pitch (H×V)0.53025mm×0.53025mm(0.021″×0.021″)
  • Diagonal Size (inch)46″
  • Contrast187.50069444444443
  • Color Saturation0.92
  • Color16.7M
  • Brightness500cd/㎡
  • BacklightLED Backlight (Direct type)
Interface
  • Input InterfaceVGA×1, DVI×1, BNC×1, YPbPr×1, HDMI×1
  • Output InterfaceVGA×1, DVI×1, BNC×2
  • Control InterfaceRJ45 for RS-232
Working Environment
  • Working Life≥60,000 Hours
  • Operating Temperature0 °C ~ 40 °C (32 °F ~ 104 °F)
  • Operating Humidity10%~85% (No Condensation)
Power
  • Power Requirement90~264VAC, 50/60Hz
  • Power Consumption111 W
Physical Features
  • Dimension (W×H×D)1023.8mm×579mm×132mm (40.31″×22.77″×5.20″ )
  • Frame Width0.14″ (Left/Upper),0.067″ (Right/Lower)
Side Frame Size
  • Physical Seam5.3 mm (0.21″)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.5.3_180731
Applied to:
DS-D2046NL-B
