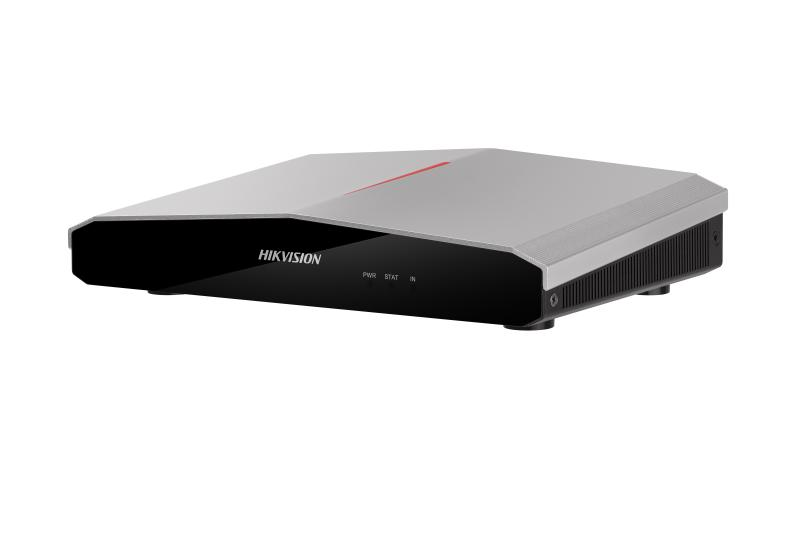

Video Wall Controller

  • 1 × HDMI 4K input, 4 × HDMI outputs
  • 4 device cascading, controlling up to 16-display video wall
  • Accurate to 0.1° rotation for a single display
  • Various display solutions with display mirroring and replication
  • Pix SYNC technology for synchronized image
  • Bezel compensation technology for continuous image
  • Export video wall design drawings for project deployment
  • Simple and easy-to-use software

Available models:

DS-C12A-0104H

Specification

  • Feature
  • Casade connection1 HDMI LOOP OUT
  • Network Interface
  • Network Interface1 × RJ45 10M/100M/1000Mbps self-adaptive Ethernet interface
  • Power
  • Power consumption18W
  • Device
  • Operating humidity10% to 90% RH
  • External Interface
  • Serial interface number1
  • Serial interfaceRS232, RS485
  • Input
  • Video input Resolution3840 × 2160P60, 3840 × 2160P30, 3840 × 2160P25, 3840 × 2160P24, wuxgaP60(1920 × 1200), 1920 × 1080P60, 1920 × 1080P50, uxgaP60(1600 × 1200), wsxgaP60 (1680 × 1050), sxgaP60 (1280 × 1024)
  • Video input interface typeHDMI
  • Video input interface number1
  • Operating Temperature
  • Operating temperature–10℃ to 45℃ (14℉ to 113℉)
  • Output
  • Video output interface typeHDMI
  • Video output interface number4
  • Output resolution3840 × 2160@30 Hz, 2560 × 1600@60 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1600 × 1200@60 Hz, 1680 × 1050@60 Hz
  • Audio output interface number1
  • Audio Output
  • Audio output interface type3.5 mm

Specification

Firmware
Applied to:
DS-C12A-0104H
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
