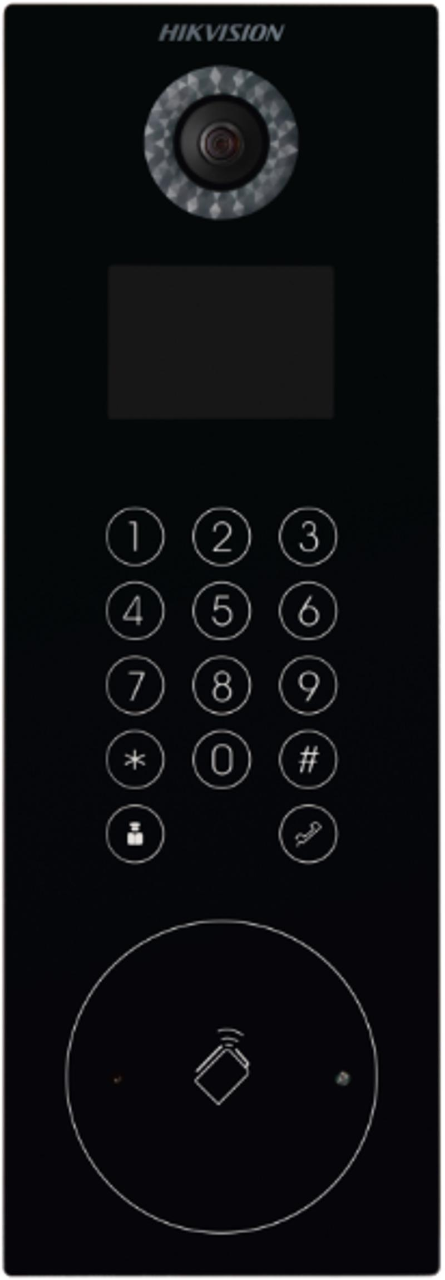

KD8 Series Pro Acrylic Door Station

  • IP door station
  • 1.3 MP Door Station, Visible Light Supplement, Plastic
  • 3.5-inch LCD, 3.5" Capacitive Touch Key
  • Wiegand & RS-485, 8-ch alarm input,4-ch alarm output
  • IP65, USB 2.0, 12 VDC
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KD8102-V
DS-KD8102
EOL
Data Sheet

Specification

  • System parameters
  • ProcessorHigh-Performance Embedded SOC Processor
  • Operation systemEmbedded Linux Operation System
  • Network parameters
  • Ethernet10/100/1000 Mbps Self-Adaptive Ethernet
  • Network protocolTCP/IP, RTSP
  • Device interfaces
  • Network interface1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
  • I/O input8
  • I/O output4
  • RS-4851 RS-485 Half-Duplex Port
  • Wiegand1 Wiegand Port for Accessing Wiegand IC Card Reader
  • USB1 USB 2.0, Supporting U-Disk
  • General
  • Power supply12 VDC
  • Power consumption≤15 W
  • Working temperature-40° C to +60° C (-40° F to 140° F)
  • Working humidity10% to 90%
  • IP protection levelIP65
  • CertificationFCC, IC, CE, C-TICK, ROHS, REACH, WEEE
  • Dimensions(L × W × H)418 mm × 145 mm × 61 mm (16.5" × 5.7" × 2.4")
  • MaterialPlastic
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System parameters
Processor
High-Performance Embedded SOC Processor
Operation system
Embedded Linux Operation System
Network parameters
Ethernet
10/100/1000 Mbps Self-Adaptive Ethernet
Network protocol
TCP/IP, RTSP
Device interfaces
Network interface
1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
I/O input
8
I/O output
4
RS-485
1 RS-485 Half-Duplex Port
Wiegand
1 Wiegand Port for Accessing Wiegand IC Card Reader
USB
1 USB 2.0, Supporting U-Disk
General
Power supply
12 VDC
Power consumption
≤15 W
Working temperature
-40° C to +60° C (-40° F to 140° F)
Working humidity
10% to 90%
IP protection level
IP65
Certification
FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Dimensions(L × W × H)
418 mm × 145 mm × 61 mm (16.5" × 5.7" × 2.4")
Material
Plastic
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System parameters
  • ProcessorHigh-Performance Embedded SOC Processor
  • Operation systemEmbedded Linux Operation System
Network parameters
  • Ethernet10/100/1000 Mbps Self-Adaptive Ethernet
  • Network protocolTCP/IP, RTSP
Device interfaces
  • Network interface1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
  • I/O input8
  • I/O output4
  • RS-4851 RS-485 Half-Duplex Port
  • Wiegand1 Wiegand Port for Accessing Wiegand IC Card Reader
  • USB1 USB 2.0, Supporting U-Disk
General
  • Power supply12 VDC
  • Power consumption≤15 W
  • Working temperature-40° C to +60° C (-40° F to 140° F)
  • Working humidity10% to 90%
  • IP protection levelIP65
  • CertificationFCC, IC, CE, C-TICK, ROHS, REACH, WEEE
  • Dimensions(L × W × H)418 mm × 145 mm × 61 mm (16.5" × 5.7" × 2.4")
  • MaterialPlastic
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.5.1_190130
Video Intercom Firmware V1.5.1 Release Notes
Applied to:
DS-KD8102-V
