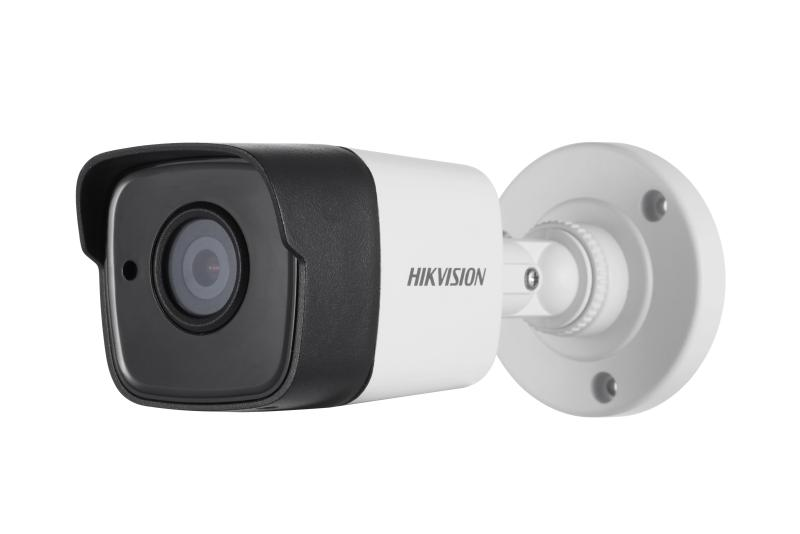

5 MP PoC Mini Bullet Camera

  • 5 MP bullet camera
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • Water and dust resistant (IP67)
  • Transmits both HD video and power over the same coaxial cable

Specification
  • Camera
  • Image Sensor5 MP CMOS image sensor
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Focal Length & FOV85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
  • Lens MountM12
  • Image
  • Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
  • Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Image EnhancementBLC
  • White BalanceATW/MWB
  • AGCSupport
  • Interface
  • Video Output1 HD analog output
  • General
  • MaterialMetal
  • Dimension58 mm × 61 mm × 163 mm (2.28" × 2.40" × 6.42")
  • Approx. 350 g (0.77 lb.)
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • LanguageEnglish
  • Power Supply12 VDC ±25%, PoC.at
  • ConsumptionMax. 5.4 W
  • IR RangeUp to 20 m
  • Approval
  • ProtectionIP67
