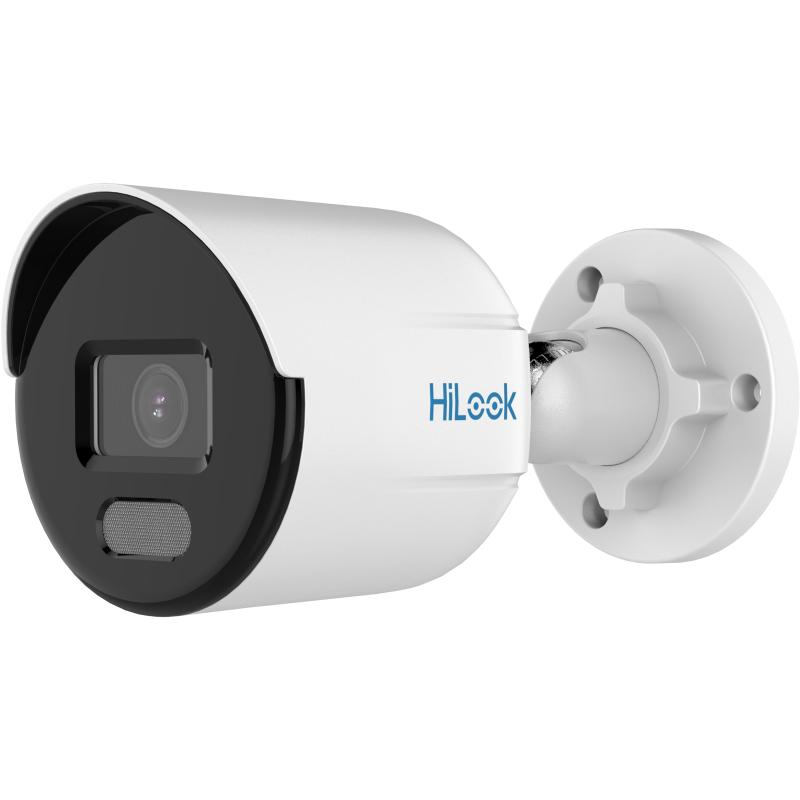

2 MP ColorVu Fixed Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • 24/7 colorful imaging

View Less
View more
Data Sheet
Sales Inquiry

Available models:

IPC-B129H(2.8mm)(HiLookSTD)
IPC-B129H(4mm)(HiLookSTD)
IPC-B129H
EOL
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Day & Night24/7 Color imaging
  • Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light
  • Shutter Speed1/3 s to 1/100, 000 s
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1° 4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.0
  • DORI
  • DORI2.8 mm, D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m 4 mm, D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
  • Illuminator
  • Supplement Light TypeWhite light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region of Interest (ROI)1 fixed region for main stream
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email, trigger capture
  • General
  • Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Camera MaterialAluminum alloy body
  • Camera DimensionØ76.6 mm × 164.4 mm (Ø3" × 6.5")
  • Package Dimension234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
  • Camera WeightApprox. 400 g (0.9 lb.)
  • With Package WeightApprox. 670 g (1.5 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval
  • EMCFCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014; KC: KN 32: 2015, KN 35: 2015
  • SafetyCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Day & Night
24/7 Color imaging
Min. Illumination
Color: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Speed
1/3 s to 1/100, 000 s
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1° 4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
DORI
DORI
2.8 mm, D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m 4 mm, D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
Illuminator
Supplement Light Type
White light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Region of Interest (ROI)
1 fixed region for main stream
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection, video tampering alarm, exception
Linkage
Upload to FTP, notify surveillance center, send email, trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Camera Material
Aluminum alloy body
Camera Dimension
Ø76.6 mm × 164.4 mm (Ø3" × 6.5")
Package Dimension
234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Camera Weight
Approx. 400 g (0.9 lb.)
With Package Weight
Approx. 670 g (1.5 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC
FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014; KC: KN 32: 2015, KN 35: 2015
Safety
CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Day & Night24/7 Color imaging
  • Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light
  • Shutter Speed1/3 s to 1/100, 000 s
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1° 4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.0
DORI
  • DORI2.8 mm, D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m 4 mm, D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
Illuminator
  • Supplement Light TypeWhite light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region of Interest (ROI)1 fixed region for main stream
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, 3D DNR
Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
  • Basic Event Motion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email, trigger capture
General
  • Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Camera MaterialAluminum alloy body
  • Camera DimensionØ76.6 mm × 164.4 mm (Ø3" × 6.5")
  • Package Dimension234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
  • Camera WeightApprox. 400 g (0.9 lb.)
  • With Package WeightApprox. 670 g (1.5 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
  • EMCFCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014; KC: KN 32: 2015, KN 35: 2015
  • SafetyCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
