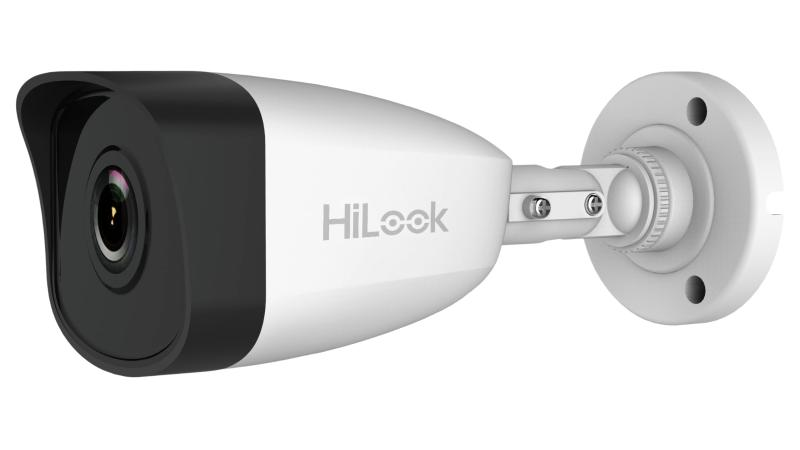

2 MP Fixed Bullet Network Camera

High quality imaging with 2 MP resolution
Clear imaging against strong back light due to DWDR technology
Easy installation with Power over Ethernet (PoE) technology.

View Less

Available models:

IPC-B120(2.8mm)(HiLookSTD)

IPC-B120(2.8mm)(B)(HiLookSTD)

IPC-B120(-M)

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON)
Shutter Speed1/3 s to 1/100, 000 s
Slow ShutterYes
Wide Dynamic RangeDWDR
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
DNR3D DNR
Day & NightIR cut filter
Auto-IrisNo

Lens
ApertureF2.0
FocusFixed
FOV2.8 mm @F2.0, horizontal FOV 114°, vertical FOV 62°, diagonal FOV: 135° 4 mm @F2.0, horizontal FOV 87°, vertical FOV 48°, diagonal FOV: 102° 6 mm @F2.0, horizontal FOV 58°, vertical FOV 32°, diagonal FOV: 75°
Lens MountM12
Focal Length2.8, 4, 6 mm

Network
Alarm TriggerMotion detection, video tampering alarm, illegal login
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users 3 levels: Administrator, Operator and User
ClientHiLookVision PC Client, HiLookVision App
Web BrowserIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Firmware VersionV5.5.4

Image EnhancementBLC, 3D DNR
Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Scheduled
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

IR
IR RangeUp to 30 m
Wavelength850 nm

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current12 VDC, 0.4 A, max. 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
MaterialWithout –M model: Front cover: metal, back cover: plastic -M model: Front cover: metal, camera body: metal, bracket: metal
DimensionsCamera: Ø 70 mm × 191.3 mm (Ø 2.8" × 7.5") With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
WeightWithout –M model: Camera: Approx. 280 g (0.6 lb.) With package: Approx. 340 g (0.7 lb.) -M model: Camera: Approx. 340 g (0.9 lb.) With package: Approx. 420 g (0.9 lb.)
Protection LevelIP67
Operating Condition-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Compression Standard
H.264+Main stream supports
H.264 TypeBaseline Profile/Main Profile
Video CompressionMain stream: H.264 Sub-stream: H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON)

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Wide Dynamic Range

DWDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°

DNR

3D DNR

Day & Night

IR cut filter

Auto-Iris

Lens

Aperture

F2.0

Focus

Fixed

FOV

2.8 mm @F2.0, horizontal FOV 114°, vertical FOV 62°, diagonal FOV: 135° 4 mm @F2.0, horizontal FOV 87°, vertical FOV 48°, diagonal FOV: 102° 6 mm @F2.0, horizontal FOV 58°, vertical FOV 32°, diagonal FOV: 75°

Lens Mount

M12

Focal Length

2.8, 4, 6 mm

Network

Alarm Trigger

Motion detection, video tampering alarm, illegal login

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users 3 levels: Administrator, Operator and User

Client

HiLookVision PC Client, HiLookVision App

Web Browser

IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Firmware Version

V5.5.4


Image Enhancement

BLC, 3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Scheduled

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

IR Range

Up to 30 m

Wavelength

850 nm

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

General

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.4 A, max. 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W

Material

Without –M model: Front cover: metal, back cover: plastic -M model: Front cover: metal, camera body: metal, bracket: metal

Dimensions

Camera: Ø 70 mm × 191.3 mm (Ø 2.8" × 7.5") With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Weight

Without –M model: Camera: Approx. 280 g (0.6 lb.) With package: Approx. 340 g (0.7 lb.) -M model: Camera: Approx. 340 g (0.9 lb.) With package: Approx. 420 g (0.9 lb.)

Protection Level

IP67

Operating Condition

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Compression Standard

H.264+

Main stream supports

H.264 Type

Baseline Profile/Main Profile

Video Compression

Main stream: H.264 Sub-stream: H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps
