Mega-pixel Auto-Iris Lens

View Less
View more
Data Sheet
Sales Inquiry

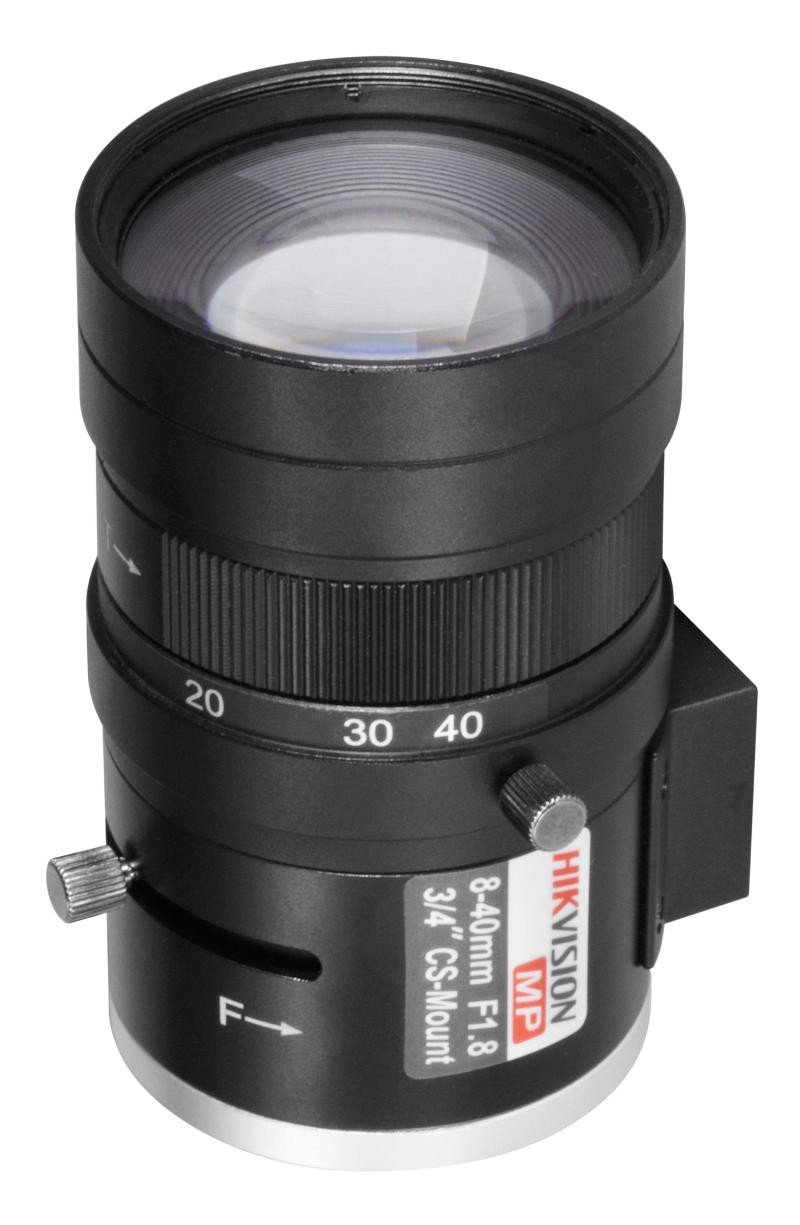

MV0840D-MP
Data Sheet

Specification

  • Parameters
  • Weight252g
  • DimensionΦ45.4*79.3
  • SpecificationVari-focal Auto Iris DCDrive3MP
  • Focal length8-40mm
  • MountCS-Mount
  • F numberF1.8-C
  • Flange Back Length12.5mm
  • Max. Image formatΦ12.1mm（3/4"）
  • M.O.D1m
  • OperatingTemperature-20~60℃
  • Control
  • IrisDC Auto Iris
  • FocusManual
  • ZoomManual
  • Field of View
  • Diagonal3/4":66.2°～19.4° 2/3":59.9°～17.3°
  • Horizontal3/4":57.4°～16.6° 2/3":47.6°～13.8°
  • Vertical3/4":31.8°～9.2° 2/3":35.4°～10.2°
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Parameters
Weight
252g
Dimension
Φ45.4*79.3
Specification
Vari-focal Auto Iris DCDrive3MP
Focal length
8-40mm
Mount
CS-Mount
F number
F1.8-C
Flange Back Length
12.5mm
Max. Image format
Φ12.1mm（3/4"）
M.O.D
1m
OperatingTemperature
-20~60℃
Control
Iris
DC Auto Iris
Focus
Manual
Zoom
Manual
Field of View
Diagonal
3/4":66.2°～19.4° 2/3":59.9°～17.3°
Horizontal
3/4":57.4°～16.6° 2/3":47.6°～13.8°
Vertical
3/4":31.8°～9.2° 2/3":35.4°～10.2°
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Parameters
  • Weight252g
  • DimensionΦ45.4*79.3
  • SpecificationVari-focal Auto Iris DCDrive3MP
  • Focal length8-40mm
  • MountCS-Mount
  • F numberF1.8-C
  • Flange Back Length12.5mm
  • Max. Image formatΦ12.1mm（3/4"）
  • M.O.D1m
  • OperatingTemperature-20~60℃
Control
  • IrisDC Auto Iris
  • FocusManual
  • ZoomManual
Field of View
  • Diagonal3/4":66.2°～19.4° 2/3":59.9°～17.3°
  • Horizontal3/4":57.4°～16.6° 2/3":47.6°～13.8°
  • Vertical3/4":31.8°～9.2° 2/3":35.4°～10.2°
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
