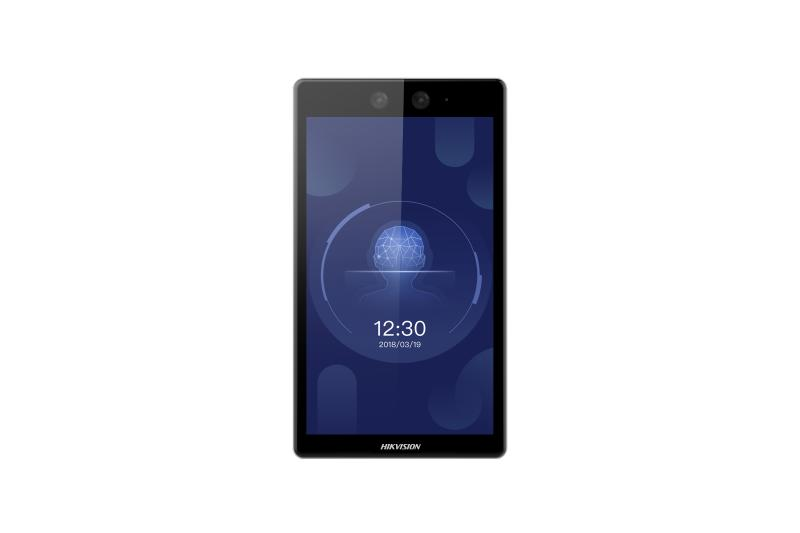

Ultra Series Wall-Mounted Face Access Terminal

  • Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
  • Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
  • 7-inch touch screen with bezel-less design
  • Presents card on the screen to authenticate card permission
  • Face recognition. Distance: 0.3 m to 3 m, Duration ＜ 0.2 s/User, Accuracy rate ≥ 99%
  • 50,000 face capacity, 50,000 card capacity（EM card）, and 50,000 event capacity
  • Supports wiegand protocol and RS-485 protocol
  • Two-way audio with indoor station and main station
  • Supports ISAPI and ISUP5.0 protocol
  • Configuration via the web client
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1T672E
DS-K1T672E
Data Sheet

Specification

  • Display
  • Screen size7 inch
  • Operation methodCapacitive touch screen
  • TypeLCD
  • Video
  • LensVisible light lens × 1，850nm Infrared lens × 1
  • Resolution2 MP
  • FOVHFOV= 75.5°；VFOV=41.5°；DFOV=87°
  • Audio
  • Audio qualityNoise Suppression and Echo Cancellation
  • Network
  • Wired networkSupport
  • Interface
  • Network interface1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm input2
  • Alarm output1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
  • Authentication
  • Card typeEM card
  • Card reading frequency125 KHz
  • General
  • Power supply12 VDC, 2 A
  • Working temperature-10 °C to 50 °C (-58 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions185.8 × 103.36 × 20.7mm (7.31'' × 4.07'' × 0.81'' )
  • InstallationSurface mounting
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
  • PlatformHik-ProConnect and HikCentral Professional
  • Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Screen size
7 inch
Operation method
Capacitive touch screen
Type
LCD
Video
Lens
Visible light lens × 1，850nm Infrared lens × 1
Resolution
2 MP
FOV
HFOV= 75.5°；VFOV=41.5°；DFOV=87°
Audio
Audio quality
Noise Suppression and Echo Cancellation
Network
Wired network
Support
Interface
Network interface
1 RJ-45, 10/100/1000 M self-adaptive
Lock control
1
Exit button
1
Door contact input
1
Alarm input
2
Alarm output
1
TAMPER
1
RS-485
1 RS-485 (Half duplex, HIKVISION)
Wiegand
1 Wiegand(Hik 26bit,Hik 34bit)
USB
1
Authentication
Card type
EM card
Card reading frequency
125 KHz
General
Power supply
12 VDC, 2 A
Working temperature
-10 °C to 50 °C (-58 °F to 122 °F)
Working humidity
0 to 90% (No condensing)
Dimensions
185.8 × 103.36 × 20.7mm (7.31'' × 4.07'' × 0.81'' )
Installation
Surface mounting
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
Platform
Hik-ProConnect and HikCentral Professional
Function
QR code recognition
Support
Face anti-spoofing
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Screen size7 inch
  • Operation methodCapacitive touch screen
  • TypeLCD
Video
  • LensVisible light lens × 1，850nm Infrared lens × 1
  • Resolution2 MP
  • FOVHFOV= 75.5°；VFOV=41.5°；DFOV=87°
Audio
  • Audio qualityNoise Suppression and Echo Cancellation
Network
  • Wired networkSupport
Interface
  • Network interface1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm input2
  • Alarm output1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
Authentication
  • Card typeEM card
  • Card reading frequency125 KHz
General
  • Power supply12 VDC, 2 A
  • Working temperature-10 °C to 50 °C (-58 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions185.8 × 103.36 × 20.7mm (7.31'' × 4.07'' × 0.81'' )
  • InstallationSurface mounting
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
  • PlatformHik-ProConnect and HikCentral Professional
Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.0.3_231018
Firmware_V3.7.0_240614
DS-K1T672 Series MinMoe Terminal Release Notes_V3.7.0_build231207
