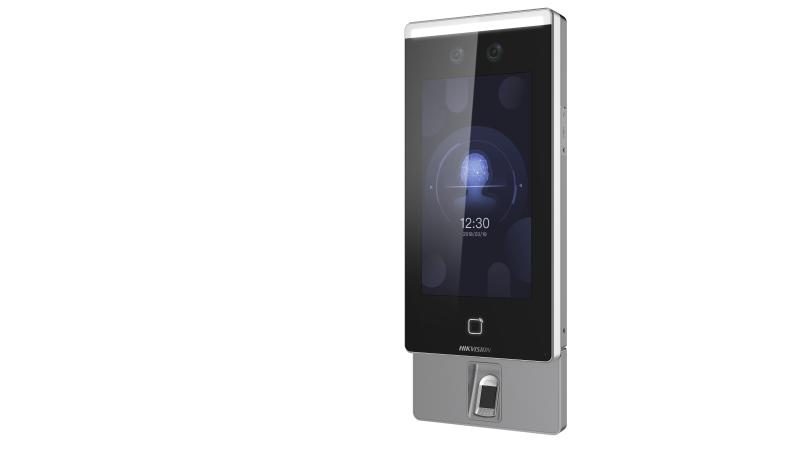

DS-K1T607MFW
EOL
Data Sheet

Specification

  • System Parameters
  • Operation SystemLinux
  • Camera2 MP dual-lens camera, with IR supplement light, WDR
  • LCD screen7 inch touch screen; Ratio: 16:9; Resolution: 1024 × 600
  • 1:N face recognition duration＜ 0.5 s per person
  • Face picture capacity6,000
  • Event capacity10,000
  • general
  • Fingerprint Capacity5,000
  • Card Reading Distance0 to 3 cm
  • Power Supply12 VDC/3 A
  • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working Humidity0 to 90% (No condensing)
  • General
  • Card TypeM1 card
  • Face Recognition Distance0.3 to 1.5 m
  • Card Capacity6,000
  • Wi-FiSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System Parameters
Operation System
Linux
Camera
2 MP dual-lens camera, with IR supplement light, WDR
LCD screen
7 inch touch screen; Ratio: 16:9; Resolution: 1024 × 600
1:N face recognition duration
＜ 0.5 s per person
Face picture capacity
6,000
Event capacity
10,000
general
Fingerprint Capacity
5,000
Card Reading Distance
0 to 3 cm
Power Supply
12 VDC/3 A
Working Temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity
0 to 90% (No condensing)
General
Card Type
M1 card
Face Recognition Distance
0.3 to 1.5 m
Card Capacity
6,000
Wi-Fi
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System Parameters
  • Operation SystemLinux
  • Camera2 MP dual-lens camera, with IR supplement light, WDR
  • LCD screen7 inch touch screen; Ratio: 16:9; Resolution: 1024 × 600
  • 1:N face recognition duration＜ 0.5 s per person
  • Face picture capacity6,000
  • Event capacity10,000
general
  • Fingerprint Capacity5,000
  • Card Reading Distance0 to 3 cm
  • Power Supply12 VDC/3 A
  • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working Humidity0 to 90% (No condensing)
General
  • Card TypeM1 card
  • Face Recognition Distance0.3 to 1.5 m
  • Card Capacity6,000
  • Wi-FiSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.0.2_191023
Applied to:
DS-K1T607MFW
