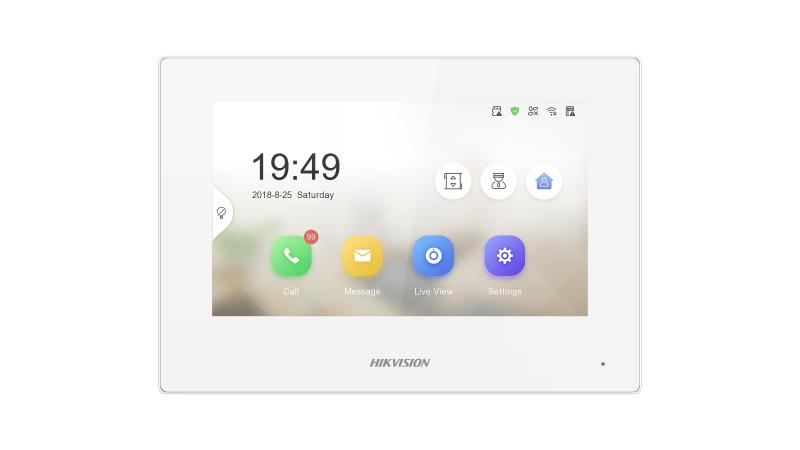

KH6 Series IP-Based Indoor Station

  • New UI V2.0: User friendly design
  • 7-inch colorful touch screen with resolution 1024 × 600
  • Standard PoE
  • Stores messages and capture pictures in the TF card
  • Remote unlocking via the client software or the mobile client
  • Views live videos of door stations and linked cameras
View Less
View more
Sales Inquiry

Available models:

DS-KH6320-WTE1-W(Europe BV)
DS-KH6320#EU&UK

Specification

  • Display parameters
  • Size 7-inch colorful TFT screen
  • Operation methodCapacitive touch screen
  • TypeColorful TFT screen
  • Video parameters
  • Lens/
  • FOV/
  • Pixel/
  • Audio parameters
  • Audio qualityNoise suppression and echo cancellation
  • Network parameters
  • Communication protocolTCP/IP, SIP, RTSP
  • Wired network10/100 Mbps self-adaptive
  • Wi-FiWi-Fi 802.11 b/g/n
  • Bluetooth/
  • Zigbee/
  • Device interfaces
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • Power interface1
  • General
  • Button0
  • InstallationSurface mounting
  • Indicator0
  • WeightWith package: 683 g Without package: 355 g
  • Protective level/
  • Power supply methodIEEE802.3af, standard PoE 12 VDC/1 A
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimensions200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
  • Battery/
  • Application environmentIndoor
  • Power consumption≤ 6 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display parameters
Size
7-inch colorful TFT screen
Operation method
Capacitive touch screen
Type
Colorful TFT screen
Video parameters
Lens
/
FOV
/
Pixel
/
Audio parameters
Audio quality
Noise suppression and echo cancellation
Network parameters
Communication protocol
TCP/IP, SIP, RTSP
Wired network
10/100 Mbps self-adaptive
Wi-Fi
Wi-Fi 802.11 b/g/n
Bluetooth
/
Zigbee
/
Device interfaces
Network interface
1 RJ-45 10/100 Mbps self-adaptive
Power interface
1
General
Button
0
Installation
Surface mounting
Indicator
0
Weight
With package: 683 g Without package: 355 g
Protective level
/
Power supply method
IEEE802.3af, standard PoE 12 VDC/1 A
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
10% to 90%
Dimensions
200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
Battery
/
Application environment
Indoor
Power consumption
≤ 6 W
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display parameters
  • Size 7-inch colorful TFT screen
  • Operation methodCapacitive touch screen
  • TypeColorful TFT screen
Video parameters
  • Lens/
  • FOV/
  • Pixel/
Audio parameters
  • Audio qualityNoise suppression and echo cancellation
Network parameters
  • Communication protocolTCP/IP, SIP, RTSP
  • Wired network10/100 Mbps self-adaptive
  • Wi-FiWi-Fi 802.11 b/g/n
  • Bluetooth/
  • Zigbee/
Device interfaces
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • Power interface1
General
  • Button0
  • InstallationSurface mounting
  • Indicator0
  • WeightWith package: 683 g Without package: 355 g
  • Protective level/
  • Power supply methodIEEE802.3af, standard PoE 12 VDC/1 A
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimensions200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
  • Battery/
  • Application environmentIndoor
  • Power consumption≤ 6 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.2.96_241111
R0 Indoor Station Firmware V2.2.96_build241111 Release Note
Applied to:
DS-KH6320-WTE1-W(Europe BV)
