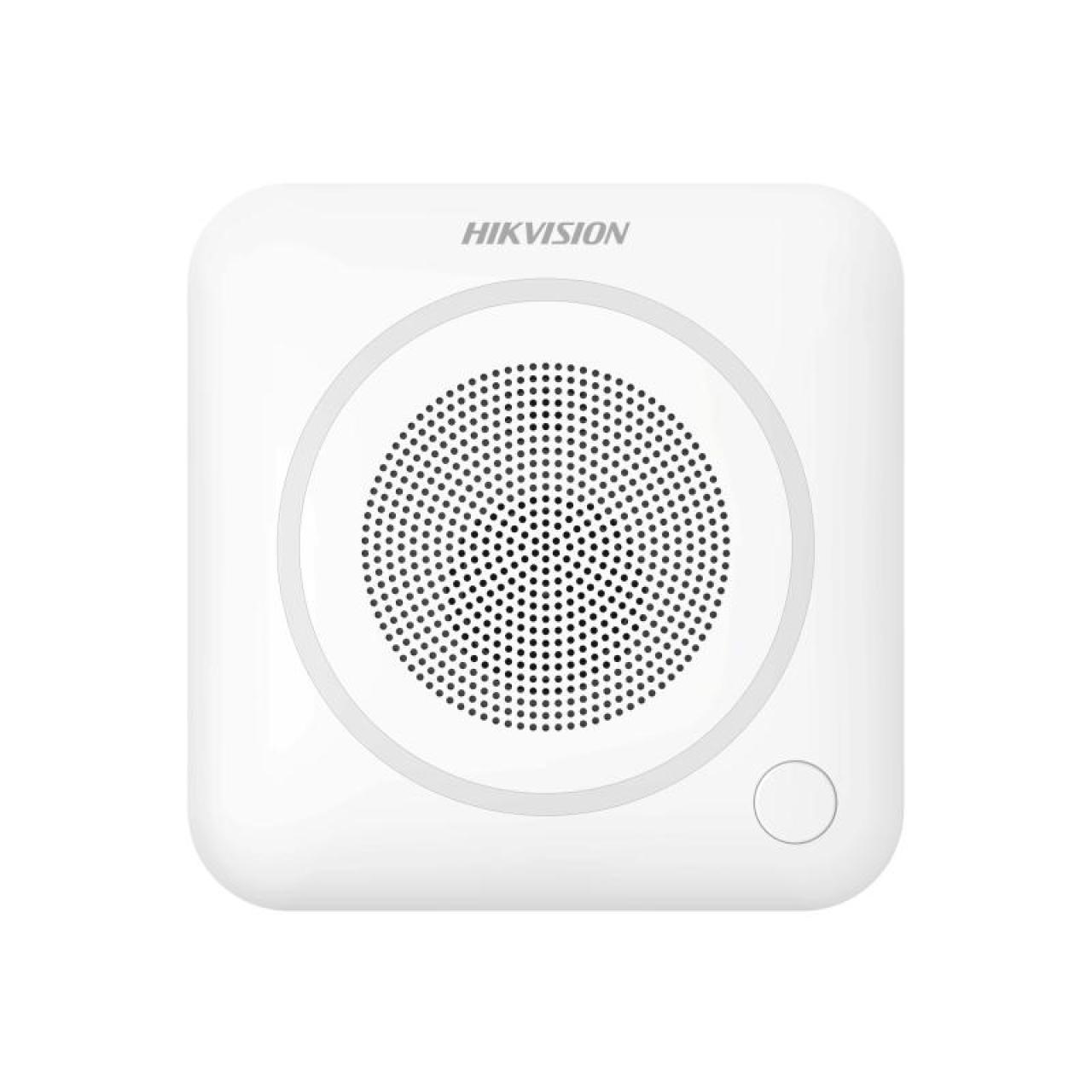

Wireless Indoor Intercom Sounder Plus

  • Two-way audio communication
  • Kinds of prompt sound and LED indications
  • Fully remote configurable through APP
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PS403I-WE
DS-PS403I-WE
DS-PS403I-WE
Data Sheet

Specification

  • Indication
  • Voice promptSupported
  • Indication methodAcoustic and LED
  • Sound volume levelAdjustable Alarm: 105 dB max at a distance of 1 m Intercom: 85 dB max at a distance of 1 m
  • Alarm durationAdjustable, 10 s−15 min
  • Indication of armed/disarmed statusYes
  • Hardware features
  • Tamper-ProofSupported
  • BuzzerSupported
  • Power switchPower on/off
  • MicSupported
  • Display
  • LED IndicatorEnrollment/Signal (red/green), Alarm(blue/red), Two-way audio service(blue/red)
  • Audio
  • IntercomTwo-way communication
  • Electrical characteristics
  • Operation humidity10% to 90% (no condensing)
  • Operation temperature–10°C to 55°C
  • Battery type4 × CR123A
  • Power supplySupport 12 VDC power supply
  • Power consumptionQuiescent current: 5 uA Max current: 1.6 A Voltage: 3 V
  • Battery life spanUp to 4 years (The battery working time can be significantly reduced at low temperatures)
  • Wireless transmission
  • RF frequency868 MHz
  • RF modulation2GFSK
  • RF distance1000m (open area)
  • Wireless technologyCAM-X Wireless Technology
  • General
  • Dimension(WxHxD)130 mm × 128 mm × 39.5 mm
  • ColorWhite case (blue or red LED alarm)
  • Installation methodWall-mounting
  • 355 g
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Indication
Voice prompt
Supported
Indication method
Acoustic and LED
Sound volume level
Adjustable Alarm: 105 dB max at a distance of 1 m Intercom: 85 dB max at a distance of 1 m
Alarm duration
Adjustable, 10 s−15 min
Indication of armed/disarmed status
Yes
Hardware features
Tamper-Proof
Supported
Buzzer
Supported
Power switch
Power on/off
Mic
Supported
Display
LED Indicator
Enrollment/Signal (red/green), Alarm(blue/red), Two-way audio service(blue/red)
Audio
Intercom
Two-way communication
Electrical characteristics
Operation humidity
10% to 90% (no condensing)
Operation temperature
–10°C to 55°C
Battery type
4 × CR123A
Power supply
Support 12 VDC power supply
Power consumption
Quiescent current: 5 uA Max current: 1.6 A Voltage: 3 V
Battery life span
Up to 4 years (The battery working time can be significantly reduced at low temperatures)
Wireless transmission
RF frequency
868 MHz
RF modulation
2GFSK
RF distance
1000m (open area)
Wireless technology
CAM-X Wireless Technology
General
Dimension(WxHxD)
130 mm × 128 mm × 39.5 mm
Color
White case (blue or red LED alarm)
Installation method
Wall-mounting
355 g
