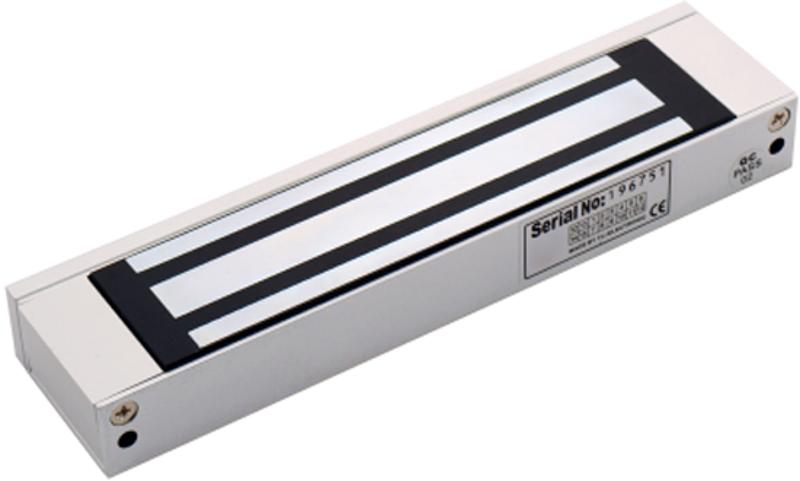

Pro Series Magnetic Lock

  • Magnetic lock supports static linear thrust of 600kg
  • Power supply can be customized to be 12VDC or 24VDC, (default voltage is 12VDC)
  • Equipped with internal voltage dependent resistor (MOV)
  • LED indicator displays door lock status
  • Abrasion-proof materials;S model for single-door, D model for double-door.
Specification
  • Général
  • Working Temperature-10°C to +55°C (14°F to 131°F)
  • Working Humidity0 to 95% (Relative Humidity)
  • Working Current12V/500mA 24V/250mA
  • LED IndicatorDry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking
  • Dimension of Lock Body (L×W×H)240×49×25.5mm (9.45×1.93×1.00")
  • Dimension of Armature Plate (L×W×H)180×38×11mm (7.1×1.5×0.4")
  • Maximum Thrust300kg Linear Thrust
  • Input VoltageDC12V/DC24V
  • Suitable DoorRed (Door is Unlocked) Green (Door is Locked)
  • Surface TemperatureWooden Door, Glass Door, Metal Door, Fireproof Door
  • ShellHard Anodizing Electroplating Operated
  • Lock BodyEco-friendly Zinc with Electroplating Operated
  • Armature PlateEco-friendly Zinc with Electroplating Operated
  • Weight2.1kg(4.63lb)
