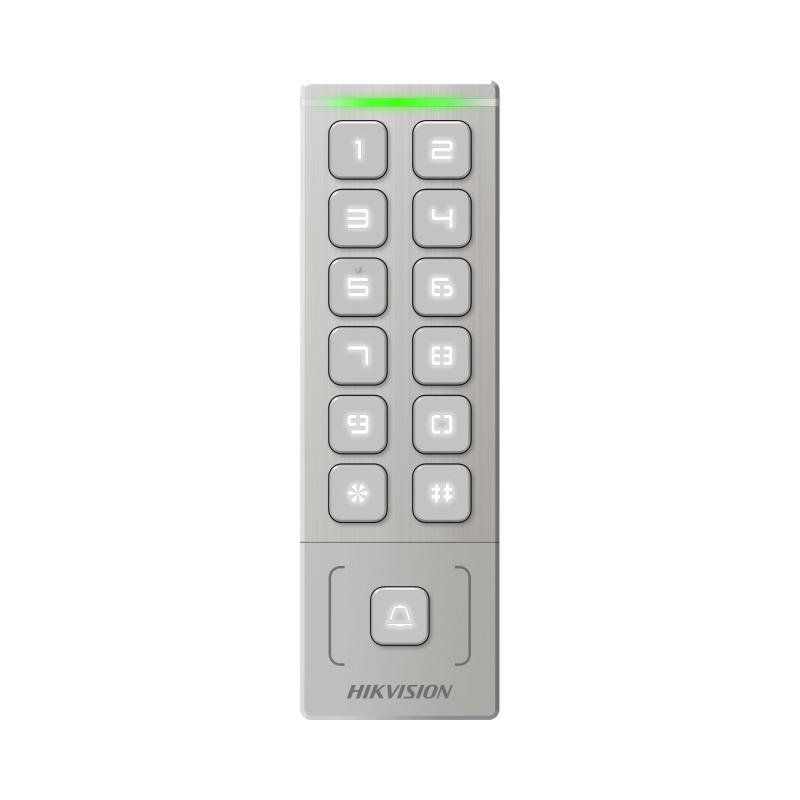

Value Card Terminal

  • Slim and flexible design with metal.
  • Max. 5000 cards and 1000 users.
  • Built-in card reader for M1 card reading.
  • Outdoor application, supports IP65.
  • Supports multiple authentication types: card, PIN.
  • Supports AP mode and operation via mobile Web
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1T809MWX
DS-K1T809MWX
Data Sheet

Specification

  • Network
  • Wi-FiSupport
  • Interface
  • Lock control1
  • Exit button1
  • Door contact input1
  • WiegandWiegand out, supports Wiegand 26/34
  • Capacity
  • User capacity1000
  • Card capacity5000
  • Authentication
  • Card typeM1 card
  • Card reading distance3 cm
  • Card reading duration1 s
  • General
  • ButtonPhysical buttons
  • IndicatorSupport
  • Power supply12 VDC, 1 A
  • Working temperature-40 °C to 65 °C (-40 °F to 149 °F)
  • Working humidity0 % to 90 % (no condensing)
  • Dimensions151 mm × 48 mm × 21.5 mm (5.9" × 1.9" × 0.8")
  • WeightNet weight: 220.3 g (0.5 lb) Rough weight: 352 g (0.8 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Network
Wi-Fi
Support
Interface
Lock control
1
Exit button
1
Door contact input
1
Wiegand
Wiegand out, supports Wiegand 26/34
Capacity
User capacity
1000
Card capacity
5000
Authentication
Card type
M1 card
Card reading distance
3 cm
Card reading duration
1 s
General
Button
Physical buttons
Indicator
Support
Power supply
12 VDC, 1 A
Working temperature
-40 °C to 65 °C (-40 °F to 149 °F)
Working humidity
0 % to 90 % (no condensing)
Dimensions
151 mm × 48 mm × 21.5 mm (5.9" × 1.9" × 0.8")
Weight
Net weight: 220.3 g (0.5 lb) Rough weight: 352 g (0.8 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Network
  • Wi-FiSupport
Interface
  • Lock control1
  • Exit button1
  • Door contact input1
  • WiegandWiegand out, supports Wiegand 26/34
Capacity
  • User capacity1000
  • Card capacity5000
Authentication
  • Card typeM1 card
  • Card reading distance3 cm
  • Card reading duration1 s
General
  • ButtonPhysical buttons
  • IndicatorSupport
  • Power supply12 VDC, 1 A
  • Working temperature-40 °C to 65 °C (-40 °F to 149 °F)
  • Working humidity0 % to 90 % (no condensing)
  • Dimensions151 mm × 48 mm × 21.5 mm (5.9" × 1.9" × 0.8")
  • WeightNet weight: 220.3 g (0.5 lb) Rough weight: 352 g (0.8 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.2.1_250320
Applied to:
DS-K1T809MWX
