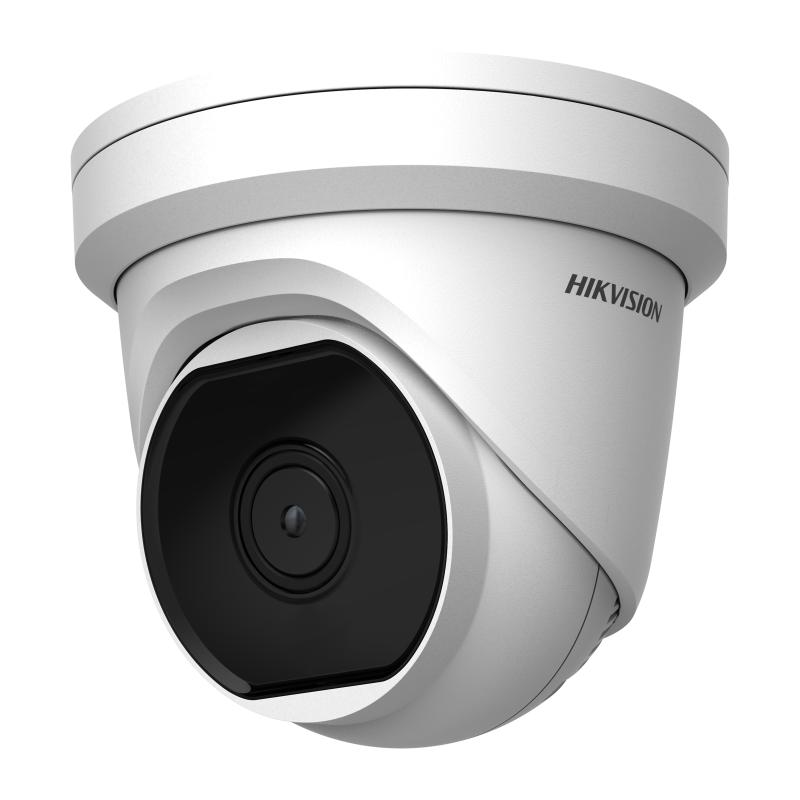

Thermal Network Turret Camera

High sensitivity thermal module with 160 x 120 resolution
NETD is less than 40 mk (@25° C, F#=1.1)
Supports contrast adjustment
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Up to 15 palettes of adjustable color
Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
Reliable temperature-anomaly alarm
Advanced fire detection algorithm

View Less

Modelos disponibles:

DS-2TD1117-2/P

EOL

Especificación
Resources
Accesorios

Módulo térmico
Sensor de imagenVanadium Oxide Uncooled Focal Plane Arrays
Resolución160 × 120 (the resolution of output image is 320 × 240)
Intervalo de píxeles17 μm
Respuesta de Waveband8 μm to 14 μm
NETD≤ 40 mk (25 °C, F# = 1.1)
Longitud focal1.8 mm
IFOV9.44 mrad
Campo de visión90° × 66.4° (H × V)
Min. Distancia de enfoque0.1 m
AperturaF1.1
Zoom Digital×2, ×4, ×8

Función inteligente
VCA4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.
Medida de temperatura3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Rango de temperatura-20 °C to 150 °C (-4 °F to 302 °F)
Precisión de la temperatura± 8 °C (±14.4 °F)
Detección de fuegoDynamic fire point detection, up to 10 fire points detectable.

Video and Audio
Main stream50Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub-stream50Hz: 25 fps (704 × 576, 352 × 288, 320 × 240)
Third Stream50Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 320 × 240)
Compresión de vídeoMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Compresión de audioG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
SeguridadUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Vista en vivo simultáneaUp to 20 channels
ClienteiVMS-4200, Hik-Connect
Navegador webLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
Almacenamiento en redBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
Nivel de usuario/operadorUp to 32 users, 3 levels: Administrator, Operator, User

Interfaz
Entrada de alarma1-ch inputs (0-5 VDC)
Salida de alarma1-ch relay outputs, alarm response actions configurable
Acción de alarmaSD recording/Relay output/Smart capture/FTP upload/Email linkage
Entrada de Audio1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Salida de audioLinear Level; Impedance: 600 Ω
Interfaz de comunicación1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

General
Idioma del cliente web32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Fuente de alimentación12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3)
Consumo de energía12 VDC ± 20%: 0.4 A, max. 4.5 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5 W
Working Temperature/Humidity-40 °C to 65 °C (-40 °F to 149 °F) 95% or less
Nivel de protecciónIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensiones138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
920 g (2.03 lb)

Tabla de rango de detección/cobertura de rango amplio
Rango de detección para humanos (1.8 × 0.5m)53 m
Alcance de detección para vehículos (4.0 × 1.4m)162 m
Rango de reconocimiento para humanos (1.8 × 0.5m)13 m
Rango de reconocimiento para vehículos (4.0 × 1.4m)41 m
Rango de identificación para humanos (1.8 × 0.5m)7 m
Rango de identificación para vehículos (4.0 × 1.4m)20 m

Tabla de rango de detección/rango de función inteligente
Rango VCA para humanos14 m
Rango VCA para vehículos42 m
Rango de medición de temperatura para objeto (2m × 2m)44 m
Rango de medición de temperatura para objeto (1m × 1m)22 m
Rango de detección de fuego para objeto (2m × 2m)108 m
Rango de detección de fuego para objeto (1m × 1m)54 m

Módulo térmico

Sensor de imagen

Vanadium Oxide Uncooled Focal Plane Arrays

Resolución

160 × 120 (the resolution of output image is 320 × 240)

Intervalo de píxeles

17 μm

Respuesta de Waveband

8 μm to 14 μm

NETD

≤ 40 mk (25 °C, F# = 1.1)

Longitud focal

1.8 mm

IFOV

9.44 mrad

Campo de visión

90° × 66.4° (H × V)

Min. Distancia de enfoque

0.1 m

Apertura

F1.1

Zoom Digital

×2, ×4, ×8

Función inteligente

VCA

4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.

Medida de temperatura

3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Rango de temperatura

-20 °C to 150 °C (-4 °F to 302 °F)

Precisión de la temperatura

± 8 °C (±14.4 °F)

Detección de fuego

Dynamic fire point detection, up to 10 fire points detectable.

Video and Audio

Main stream

50Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

Sub-stream

50Hz: 25 fps (704 × 576, 352 × 288, 320 × 240)

Third Stream

50Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 320 × 240)

Compresión de vídeo

Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG

Compresión de audio

G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

API

ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)

Seguridad

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Vista en vivo simultánea

Up to 20 channels

Cliente

iVMS-4200, Hik-Connect

Navegador web

Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Almacenamiento en red

Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

Nivel de usuario/operador

Up to 32 users, 3 levels: Administrator, Operator, User

Interfaz

Entrada de alarma

1-ch inputs (0-5 VDC)

Salida de alarma

1-ch relay outputs, alarm response actions configurable

Acción de alarma

SD recording/Relay output/Smart capture/FTP upload/Email linkage

Entrada de Audio

1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Salida de audio

Linear Level; Impedance: 600 Ω

Interfaz de comunicación

1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

General

Idioma del cliente web

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Fuente de alimentación

12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3)

Consumo de energía

12 VDC ± 20%: 0.4 A, max. 4.5 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5 W

Working Temperature/Humidity

-40 °C to 65 °C (-40 °F to 149 °F) 95% or less

Nivel de protección

IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensiones

138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")

920 g (2.03 lb)

Tabla de rango de detección/cobertura de rango amplio

Rango de detección para humanos (1.8 × 0.5m)

53 m

Alcance de detección para vehículos (4.0 × 1.4m)

162 m

Rango de reconocimiento para humanos (1.8 × 0.5m)

13 m

Rango de reconocimiento para vehículos (4.0 × 1.4m)

41 m

Rango de identificación para humanos (1.8 × 0.5m)

7 m

Rango de identificación para vehículos (4.0 × 1.4m)

20 m

Tabla de rango de detección/rango de función inteligente

Rango VCA para humanos

14 m

Rango VCA para vehículos

42 m

Rango de medición de temperatura para objeto (2m × 2m)

44 m

Rango de medición de temperatura para objeto (1m × 1m)

22 m

Rango de detección de fuego para objeto (2m × 2m)

108 m

Rango de detección de fuego para objeto (1m × 1m)

54 m

Módulo térmico

Sensor de imagenVanadium Oxide Uncooled Focal Plane Arrays
Resolución160 × 120 (the resolution of output image is 320 × 240)
Intervalo de píxeles17 μm
Respuesta de Waveband8 μm to 14 μm
NETD≤ 40 mk (25 °C, F# = 1.1)
Longitud focal1.8 mm
IFOV9.44 mrad
Campo de visión90° × 66.4° (H × V)
Min. Distancia de enfoque0.1 m
AperturaF1.1
Zoom Digital×2, ×4, ×8

Función inteligente

VCA4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.
Medida de temperatura3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Rango de temperatura-20 °C to 150 °C (-4 °F to 302 °F)
Precisión de la temperatura± 8 °C (±14.4 °F)
Detección de fuegoDynamic fire point detection, up to 10 fire points detectable.

Video and Audio

Main stream50Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub-stream50Hz: 25 fps (704 × 576, 352 × 288, 320 × 240)
Third Stream50Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 320 × 240)
Compresión de vídeoMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Compresión de audioG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Red

ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
SeguridadUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Vista en vivo simultáneaUp to 20 channels
ClienteiVMS-4200, Hik-Connect
Navegador webLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
Almacenamiento en redBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
Nivel de usuario/operadorUp to 32 users, 3 levels: Administrator, Operator, User

Interfaz

Entrada de alarma1-ch inputs (0-5 VDC)
Salida de alarma1-ch relay outputs, alarm response actions configurable
Acción de alarmaSD recording/Relay output/Smart capture/FTP upload/Email linkage
Entrada de Audio1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Salida de audioLinear Level; Impedance: 600 Ω
Interfaz de comunicación1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

General

Idioma del cliente web32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Fuente de alimentación12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3)
Consumo de energía12 VDC ± 20%: 0.4 A, max. 4.5 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5 W
Working Temperature/Humidity-40 °C to 65 °C (-40 °F to 149 °F) 95% or less
Nivel de protecciónIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensiones138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
920 g (2.03 lb)
