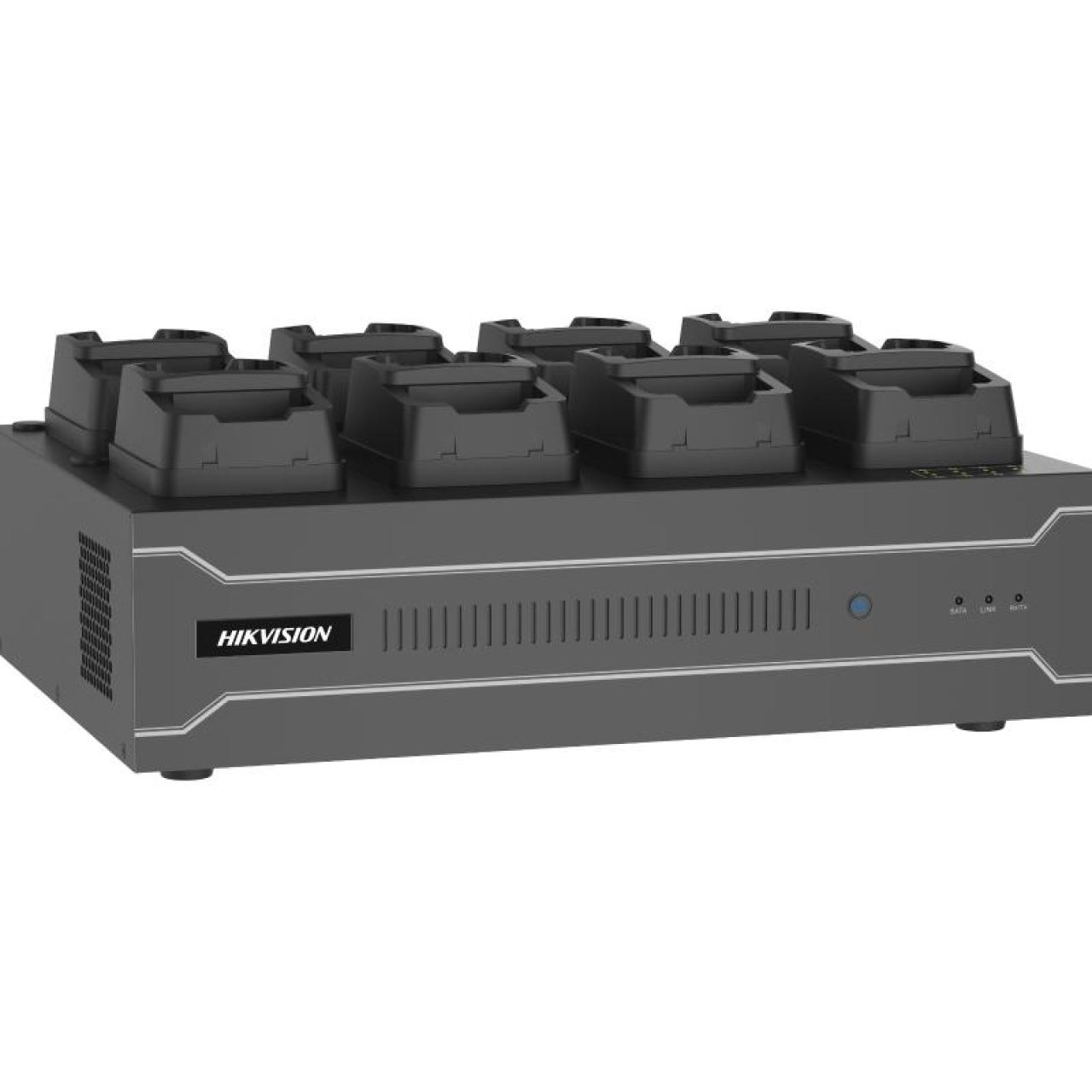

8 Ports Desktop Dock Station

1000 M dual network interface
Collects data from multiple body cameras.
Charges, uploads data, and cleans the storage space automatically.
Prevents data loss via ANR (Automatic Network Replenishment).
Cyclic covering: Files will be covered automatically according to the storage timeline when there is no enough space.
Reads time, date, product No., etc. of the body camera automatically.
Plays videos, audios, and images.
Log management.

View Less

Ficha Técnica

Modelos disponibles:

DS-MDS001/2T(DS-MH2311)

DS-MDS001/2T(MCW407)

DS-MDS001

Especificación
Resources
Accesorios

Ficha Técnica

Almacenamiento
RAM2 GB
HDDUp to 4 disk(s) (Max. 8 TB for each disk) and default 2 TB

Red
ProtocoloHTTPS, FTP, NTP, SADP, ISAPI

Interfaz
indicadorPower indicator,Hard disk indicator,Network indicator,8 indicator(s) for charging/working/recording/exception
BotónPower
General Interface1 × USB 3.0
Body Camera Access NumberUp to 8 body camera(s)
Base Paramaters5 VDC, 1.5 A for each channel, rate ≥ 8 MB/s

General
ClienteHikCentral Pro,HikCentral Master
Altavoz1 build-in speaker
Navegador webPlug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Sistema operativoLinux
alimentación100 to 240 VAC, max. 250 W
Operating Condition-10 °C to 55 °C (-14 °F to 131 °F). Humidity 95% or less (non-condensing)
Dimensiones400 mm × 300 mm × 124 mm (15.75" × 11.81" × 4.88")
7.1 kg (15.65 lb.)
Installation MethodDesk-mounted

Certificaciones
EMCCE-EMC: EN 55032: 2015,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014,EN 61000-3-2: 2014
SeguridadCE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11

Almacenamiento

RAM

2 GB

HDD

Up to 4 disk(s) (Max. 8 TB for each disk) and default 2 TB

Red

Protocolo

HTTPS, FTP, NTP, SADP, ISAPI

Interfaz

indicador

Power indicator,Hard disk indicator,Network indicator,8 indicator(s) for charging/working/recording/exception

Botón

Power

General Interface

1 × USB 3.0

Body Camera Access Number

Up to 8 body camera(s)

Base Paramaters

5 VDC, 1.5 A for each channel, rate ≥ 8 MB/s

General

Cliente

HikCentral Pro,HikCentral Master

Altavoz

1 build-in speaker

Navegador web

Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Sistema operativo

Linux

alimentación

100 to 240 VAC, max. 250 W

Operating Condition

-10 °C to 55 °C (-14 °F to 131 °F). Humidity 95% or less (non-condensing)

Dimensiones

400 mm × 300 mm × 124 mm (15.75" × 11.81" × 4.88")

7.1 kg (15.65 lb.)

Installation Method

Desk-mounted

Certificaciones

EMC

CE-EMC: EN 55032: 2015,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014,EN 61000-3-2: 2014

Seguridad

CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11

Almacenamiento

RAM2 GB
HDDUp to 4 disk(s) (Max. 8 TB for each disk) and default 2 TB

Red

ProtocoloHTTPS, FTP, NTP, SADP, ISAPI

Interfaz

indicadorPower indicator,Hard disk indicator,Network indicator,8 indicator(s) for charging/working/recording/exception
BotónPower
General Interface1 × USB 3.0
Body Camera Access NumberUp to 8 body camera(s)
Base Paramaters5 VDC, 1.5 A for each channel, rate ≥ 8 MB/s

General

ClienteHikCentral Pro,HikCentral Master
Altavoz1 build-in speaker
Navegador webPlug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Sistema operativoLinux
alimentación100 to 240 VAC, max. 250 W
Operating Condition-10 °C to 55 °C (-14 °F to 131 °F). Humidity 95% or less (non-condensing)
Dimensiones400 mm × 300 mm × 124 mm (15.75" × 11.81" × 4.88")
7.1 kg (15.65 lb.)
Installation MethodDesk-mounted

Certificaciones

EMCCE-EMC: EN 55032: 2015,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014,EN 61000-3-2: 2014
SeguridadCE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11
