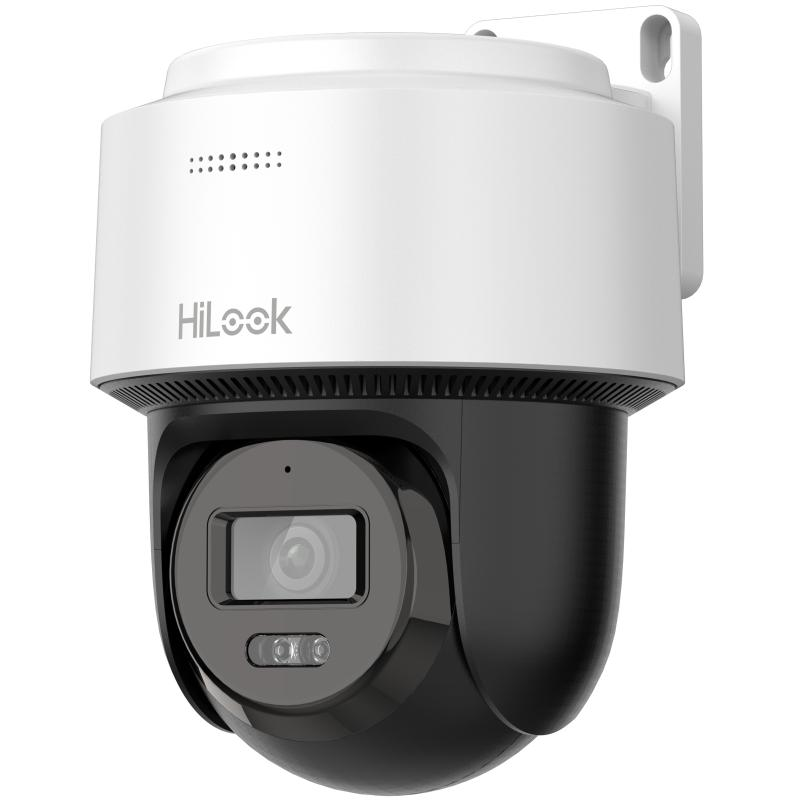

2-inch 4 MP 0X Powered by DarkFighter IR Network Speed Dome

High quality imaging with 4 MP resolution
Support Human Detection and Auto-tracking Lite
Smart Hybrid Light: advanced technology with long range
Hik-Connect cloud service and APP for remote management and views of devices
Built-in microphone and speaker for real-time audio security
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
Water and dust resistant IP66

View Less

Ficha Técnica

Modelos disponibles:

PTZ-N2C400M-DE(2.8mm)(HiLookSTD)(B)

PTZ-N2C400M-DE

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen 1/3″ Progressive Scan CMOS
Max. Resolución 2560 × 1440
Iluminación mínima Color: 0.01 Lux @(F1.2，AGC ON), B/W: 0 Lux with light

Lente
Longitud focal 2.8 mm, 4 mm
FOV 2.8 mm, horizontal FOV 104.9°, vertical FOV 58.3°, diagonal FOV 123.3° 4 mm, horizontal FOV 81.3°, vertical FOV 43.7°, diagonal FOV 96.9°
Apertura F1.6

Iluminador
Tipo de luz suplementaria IR & White Light
Rango de luz suplementaria White Light Distance: up to 30 m IR Distance: up to 30 m
Luz de suplemento inteligente Yes
IR Wavelength 850 nm

PTZ
Rango de movimiento (pan) 0° to 345°
Rango de movimiento (tilt) 0° to 80°
Velocidad de movimiento horizontal (pan) Pan speed: configurable from 4° to 25°/s
Velocidad de vertical (tilt) Tilt speed: configurable from 4° to 20°/s

Vídeo
Compresión de vídeo H.265, H.264, MJPEG
Tipo H.264 Baseline Profile, Main Profile, High Profile
Tipo H.265 Main Profile
Main stream 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360） 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Vídeo bitrate 32 Kbps to 8 Mbps

Audio
Compresión de audio G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
Velocidad de bits de audio 16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
Frecuencia de muestreo de audio 8 kHz/16 kHz
Filtro de ruido ambiental Yes

Red
Protocolos IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Imagen
Configuración de imagen Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
Wide Dynamic Range (WDR) Digital WDR
Mejora de la imagen BLC, HLC, 3D DNR

Interfaz
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Almacenamiento a bordo Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
Micrófono incorporado 1 built-in microphone
Altavoz incorporado 1 built-in speaker
Reiniciar Yes

Evento
Evento Básico Motion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception
Enlace de alarma Upload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite

General
Operating Condition -10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
Función general Mirror, password protection, watermark
alimentación 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W
Dimensiones Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19") With package dimension: 224 mm × 164 mm × 230 mm (8.82" × 6.46" × 9.06")
Camera weight: 600 g (1.32 lb.) With package weight: 900 g (2.0 lb.)

Certificaciones
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
Protección IP66

Cámara

Sensor de imagen

1/3″ Progressive Scan CMOS

Max. Resolución

2560 × 1440

Iluminación mínima

Color: 0.005 Lux @(F1.2，AGC ON), B/W: 0 Lux with IR

Lente

Longitud focal

2.8 mm/ 4 mm

FOV

2.8 mm, horizontal FOV 97°, vertical FOV 52.3°, diagonal FOV 114.3° 4 mm, horizontal FOV 79°, vertical FOV 42.4°, diagonal FOV 93.3°

Apertura

F1.6

Iluminador

Tipo de luz suplementaria

IR & White Light

Rango de luz suplementaria

White Light Distance: up to 30 m IR Distance: up to 30 m

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

PTZ

Rango de movimiento (pan)

0° to 340°

Rango de movimiento (tilt)

-5° to 105°

Velocidad de movimiento horizontal (pan)

Pan speed: configurable from 4° to 21°/s

Velocidad de vertical (tilt)

Tilt speed: configurable from 4° to 19°/s

Vídeo

Compresión de vídeo

H.265, H.264, MJPEG

Tipo H.264

Baseline Profile, Main Profile, High Profile

Tipo H.265

Main Profile

Main stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

Vídeo bitrate

32 Kbps to 8 Mbps

Audio

Compresión de audio

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM

Velocidad de bits de audio

64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC)

Frecuencia de muestreo de audio

8 kHz/16 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour

API

Open Network Video Interface, ISAPI, SDK

Imagen

Configuración de imagen

Saturation, brightness, contrast, sharpness

Wide Dynamic Range (WDR)

Digital WDR

Mejora de la imagen

BLC, HLC, 3D DNR

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Almacenamiento a bordo

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB

Micrófono incorporado

Yes

Altavoz incorporado

Yes

Reiniciar

Yes

Evento

Evento Básico

Motion detection

Enlace de alarma

Upload to FTP, notify surveillance center, send email, upload to memory card

General

Operating Condition

With supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing) With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)

Función general

Mirror, password protection, watermark

alimentación

12 VDC ± 25%, 1 A, max. 12 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 12 W

Dimensiones

Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") Package dimension: 205 mm × 167 mm × 289 mm (8.1" × 6.6" × 11.4")

Camera weight: 600g(1.32lb.) With package weight: 900g(2.0lb.)

Certificaciones

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016)

Protección

IP66 (IEC 60529-2013)
