Camera Tester

Camera Tester
For Analog&IP Camera
Support 4K
Support TVI, CVI, AHD, and CVBS

View Less

Ficha Técnica

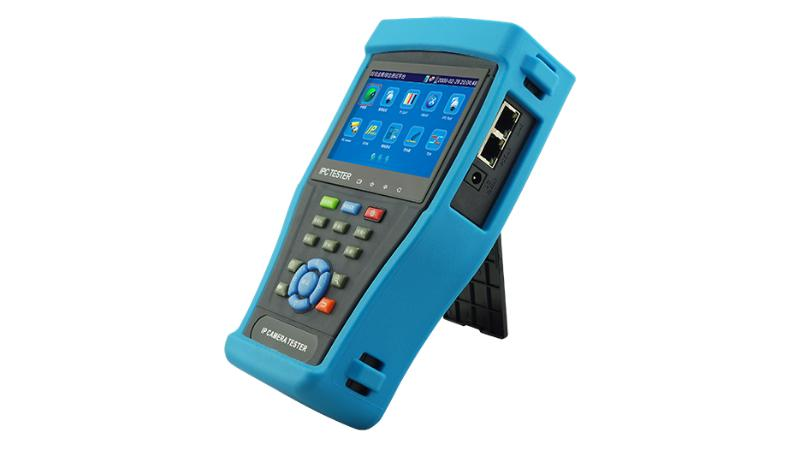

IPC-4300H

Especificación
Resources
Accesorios

Ficha Técnica

Parámetros
pantalla4.3 inch IPS LCD test monitor with touch screen , resolution 800（RGB）x 480
Puerto de red10/100M auto adapt,RJ45
Wi-FiBuilt in WIFI,speeds150M,display wireless camera image
Tipo de cámara IPONVIF, Hikvision. Customized welcome
Zoom de imagenSupport Analog camera and IP camera image zoom /move
Instantánea, grabación de vídeo y reproducciónImage Screen snapshot, record ,save ,view and record and play back
Potencia de salida 12V/2AOutput DC12V/2A power for camera
Potencia de salida PoE48V PoE power output,Max power 24W
Prueba de audio1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Control PTZSupport RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
generador de barra de colorOutput one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )
Probador de cable UTPTest UTP cable connection status and display on the screen. Read the number on the screen
Monitor de datosCaptures and analyzes the command data from controlling device,also can send hexadecimal
Prueba de redIP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address
Ajuste de operaciónCapacitive touch screen, OSD menu,Chinese/English
Apagado automático5-30 (mins)
Descubrimiento de IPauto-scan the whole network segment camera IP
ONVIF rápidosearch camera quickly, auto log in and display image from the camera, activate Hikvision camera
Herramienta de prueba de Hikactivate Hikvision camera，Camera image test, support modify IP, user name and password etc parameters .
Prueba de cámara HD TVISupport resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable
Prueba de señal de vídeo CVBS1 channel Video IN BNC input,1 channel Video OUT BNC output,support PAL/NTSC

Alimentación
Fuente de alimentación externaDC 12V（2A）
bateríaBuilt-in 7.4V Lithium polymer battery , 5000mAh
RecargableAfter charging 7~8 hours, normal working time 16 hours

General
Temperatura de trabajo-10℃---+50℃
Condiciones de Humedad30%-90%
Dimensión/Peso212mm×135.5mm×56.5mm / 0.75Kg

Parámetros

pantalla

4.3 inch IPS LCD test monitor with touch screen , resolution 800（RGB）x 480

Puerto de red

10/100M auto adapt,RJ45

Wi-Fi

Built in WIFI,speeds150M,display wireless camera image

Tipo de cámara IP

ONVIF, Hikvision. Customized welcome

Zoom de imagen

Support Analog camera and IP camera image zoom /move

Instantánea, grabación de vídeo y reproducción

Image Screen snapshot, record ,save ,view and record and play back

Potencia de salida 12V/2A

Output DC12V/2A power for camera

Potencia de salida PoE

48V PoE power output,Max power 24W

Prueba de audio

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Control PTZ

Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc

generador de barra de color

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )

Probador de cable UTP

Test UTP cable connection status and display on the screen. Read the number on the screen

Monitor de datos

Captures and analyzes the command data from controlling device,also can send hexadecimal

Prueba de red

IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address

Ajuste de operación

Capacitive touch screen, OSD menu,Chinese/English

Apagado automático

5-30 (mins)

Descubrimiento de IP

auto-scan the whole network segment camera IP

ONVIF rápido

search camera quickly, auto log in and display image from the camera, activate Hikvision camera

Herramienta de prueba de Hik

activate Hikvision camera，Camera image test, support modify IP, user name and password etc parameters .

Prueba de cámara HD TVI

Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable

Prueba de señal de vídeo CVBS

1 channel Video IN BNC input,1 channel Video OUT BNC output,support PAL/NTSC

Alimentación

Fuente de alimentación externa

DC 12V（2A）

batería

Built-in 7.4V Lithium polymer battery , 5000mAh

Recargable

After charging 7~8 hours, normal working time 16 hours

General

Temperatura de trabajo

-10℃---+50℃

Condiciones de Humedad

30%-90%

Dimensión/Peso

212mm×135.5mm×56.5mm / 0.75Kg
