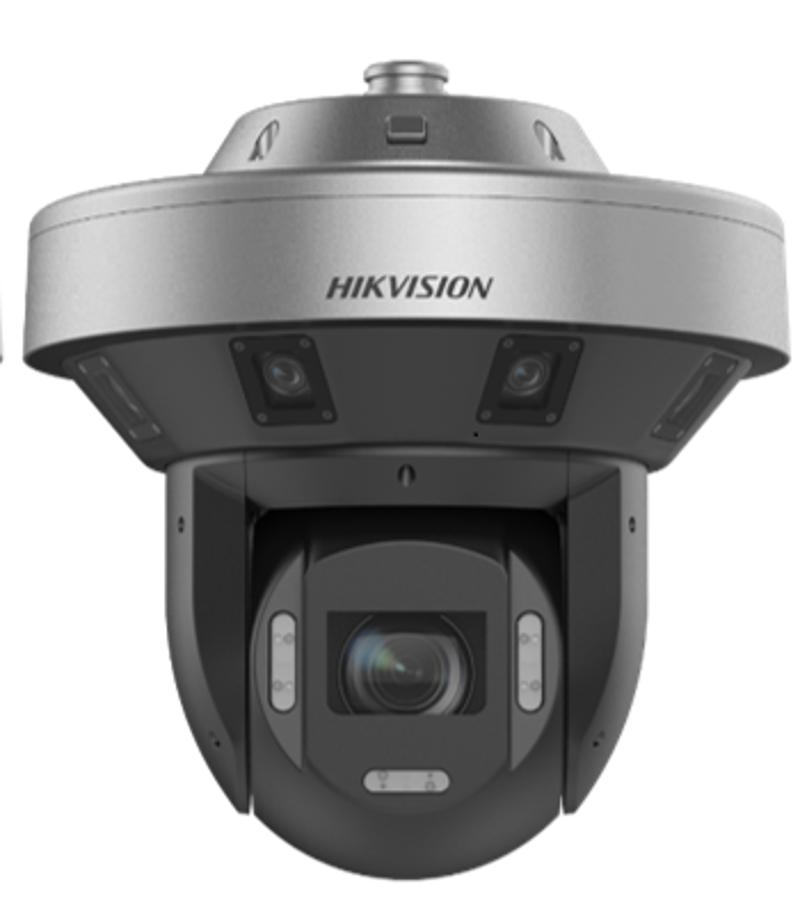

64MP 360° Panoramic & PTZ Camera

High quality imaging with 64 MP resolution, up to 2 × 8160 × 3616 @30 fps for panoramic channels
True 360° coverage with eight F1.0 lenses, no blind spots in the panoramas
Excellent low-light performance with DarkFighter 2.0 technology
45 × optical zoom and 16 × digital zoom provide close up views over expansive areas
Expansive night view with up to 500 m IR distance
With one click on the panoramic channel, the PTZ channel shows the details automatically
Continous and stable manual tracking, auto-tracking, and panorama tracking
Automatic switch between multiple targets
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output

View Less

Data Sheet

Available models:

DS-2DP8A845IXG1-LF/864(F0)

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.2" progressive scan CMOS
Min. Illumination[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.5, AGC ON), B/W: 0.0001 Lux (F1.5, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30000 s
Slow ShutterYes
Day & NightIR cut filter
Zoom[PTZ channel] 45 × optical, 16 × digital
Max. Resolution8160 × 3616

Lens
FocusAuto, semi-auto, manual, rapid focus
Focal Length[Panoramic channel] 2mm; [PTZ channel] 7.1-320mm
Zoom Speed[PTZ channel] Approx. 5.6 s
FOV[Panoramic channel] Horizontal FOV 360°, vertical FOV 110°；[PTZ channel]Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
Aperture[Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.5

Illuminator
Supplement Light TypeLaser
Supplement Light Rangeup to 500 m
Smart Supplement LightYes

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan SpeedPan speed: configurable from 0.1° to 500°/s; preset speed: 500°/s
Tilt SpeedTilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s
Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemoryYes
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video
Main Stream[Panoramic channel]: 50Hz: 25fps (32MP：8160×3616×2, 5520×2400×2, 8MP：4096×1800×2,3840×1680×2, 2720×1192×2); 60Hz: 30fps (32MP：8160×3616×2, 5520×2400×2, 8MP：4096×1800×2,3840×1680×2, 2720×1192×2) [PTZ channel]: 50Hz:25fps (3840×2160,2560×1440,1920×1080,1280×960,1280×720) 60Hz: 24fps(3840×2160,2560×1440,1920×1080,1280×960,1280×720)
Sub-Stream[Panoramic channel]: 50Hz: 25fps (1560×656×2,704×320×2, 8MP: 704×320×2,512×232×2) 60Hz: 30fps (1560×656×2,704×320×2, 8MP: 704×320×2,512×232×2) [PTZ channel]: 50Hz: 25fps(704×576,640×480,352×288); 60Hz: 24fps(704×480,640×480,352×240)
Third Stream[Panoramic channel]: no [PTZ channel]: 50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288) 60Hz: 24fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Sampling RatePCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Network
Network StorageNAS (NFS, SMB/CIFS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 user levels: administrator, operator, and user
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
ClientiVMS-4200, HikCentral Pro, Hik-Connect
Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+

Day/Night SwitchDay, night, auto, scheduled-switch
Image EnhancementBLC, HLC, 3D DNR
Wide Dynamic Range (WDR)[Panoramic channel] no, [PTZ channel] 120 dB
Defog[Panoramic channel]: no; [PTZ channel]: optical defog
Image StabilizationEIS (Built-in gyroscope to improve EIS performance),OIS
Regional ExposureYes
Regional FocusYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters SwitchYes
Privacy MaskProgrammable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
SNR≥ 55 dB

Interface
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Fiber Optical1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm7 alarm inputs, 2 alarm outputs
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ResetYes

Event
Smart EventLine crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
Smart TrackingManual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes
Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Multi-Target-Type Detection[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle
People DensitySupports detecting the level of people density in the configured area
Congestion AlarmYes

General
Power36 VDC±20%, max. 135 W (including max. 12 W for IR)
Operating Condition-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
WiperNo
DemistYes
MaterialADC12
DimensionØ 427.6 mm x 425.9 mm(Ø16.8" × 16.7")
WeightApprox. 14.6kg

Approval
SafetyCB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017);
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10

Camera

Image Sensor

[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.2" progressive scan CMOS

Min. Illumination

[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.5, AGC ON), B/W: 0.0001 Lux (F1.5, AGC ON), 0 Lux with IR

Shutter Speed

1 s to 1/30000 s

Slow Shutter

Yes

Day & Night

IR cut filter

Zoom

[PTZ channel] 45 × optical, 16 × digital

Max. Resolution

8160 × 3616

Lens

Focus

Auto, semi-auto, manual, rapid focus

Focal Length

[Panoramic channel] 2mm; [PTZ channel] 7.1-320mm

Zoom Speed

[PTZ channel] Approx. 5.6 s

FOV

[Panoramic channel] Horizontal FOV 360°, vertical FOV 110°；[PTZ channel]Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°

Aperture

[Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.5

Illuminator

Supplement Light Type

Laser

Supplement Light Range

up to 500 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

Pan speed: configurable from 0.1° to 500°/s; preset speed: 500°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s

Proportional Pan

[Panoramic channel]: no; [PTZ channel]: yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

[Panoramic channel]: 50Hz: 25fps (32MP：8160×3616×2, 5520×2400×2, 8MP：4096×1800×2,3840×1680×2, 2720×1192×2); 60Hz: 30fps (32MP：8160×3616×2, 5520×2400×2, 8MP：4096×1800×2,3840×1680×2, 2720×1192×2) [PTZ channel]: 50Hz:25fps (3840×2160,2560×1440,1920×1080,1280×960,1280×720) 60Hz: 24fps(3840×2160,2560×1440,1920×1080,1280×960,1280×720)

Sub-Stream

[Panoramic channel]: 50Hz: 25fps (1560×656×2,704×320×2, 8MP: 704×320×2,512×232×2) 60Hz: 30fps (1560×656×2,704×320×2, 8MP: 704×320×2,512×232×2) [PTZ channel]: 50Hz: 25fps(704×576,640×480,352×288); 60Hz: 24fps(704×480,640×480,352×240)

Third Stream

[Panoramic channel]: no [PTZ channel]: 50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288) 60Hz: 24fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

Audio

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM

Audio Sampling Rate

PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Network

Network Storage

NAS (NFS, SMB/CIFS), ANR

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Security

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Client

iVMS-4200, HikCentral Pro, Hik-Connect

Web Browser

IE10-11, Chrome 57+, Firefox 52+, Safari 12+


Day/Night Switch

Day, night, auto, scheduled-switch

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

[Panoramic channel] no, [PTZ channel] 120 dB

Defog

[Panoramic channel]: no; [PTZ channel]: optical defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance),OIS

Regional Exposure

Yes

Regional Focus

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

Privacy Mask

Programmable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable

SNR

≥ 55 dB

Interface

Ethernet Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet port

Fiber Optical

1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB

Alarm

7 alarm inputs, 2 alarm outputs

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset

Yes

Event

Smart Event

Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection

Smart Tracking

Manual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes

Alarm Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Multi-Target-Type Detection

[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

People Density

Supports detecting the level of people density in the configured area

Congestion Alarm

Yes

General

Power

36 VDC±20%, max. 135 W (including max. 12 W for IR)

Operating Condition

-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)

Wiper

Demist

Yes

Material

ADC12

Dimension

Ø 427.6 mm x 425.9 mm(Ø16.8" × 16.7")

Weight

Approx. 14.6kg

Approval

Safety

CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017);

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10

Camera

Image Sensor[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.2" progressive scan CMOS
Min. Illumination[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.5, AGC ON), B/W: 0.0001 Lux (F1.5, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30000 s
Slow ShutterYes
Day & NightIR cut filter
Zoom[PTZ channel] 45 × optical, 16 × digital
Max. Resolution8160 × 3616

Lens

FocusAuto, semi-auto, manual, rapid focus
Focal Length[Panoramic channel] 2mm; [PTZ channel] 7.1-320mm
Zoom Speed[PTZ channel] Approx. 5.6 s
FOV[Panoramic channel] Horizontal FOV 360°, vertical FOV 110°；[PTZ channel]Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
Aperture[Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.5

Illuminator

Supplement Light TypeLaser
Supplement Light Rangeup to 500 m
Smart Supplement LightYes

PTZ

Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan SpeedPan speed: configurable from 0.1° to 500°/s; preset speed: 500°/s
Tilt SpeedTilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s
Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemoryYes
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream[Panoramic channel]: 50Hz: 25fps (32MP：8160×3616×2, 5520×2400×2, 8MP：4096×1800×2,3840×1680×2, 2720×1192×2); 60Hz: 30fps (32MP：8160×3616×2, 5520×2400×2, 8MP：4096×1800×2,3840×1680×2, 2720×1192×2) [PTZ channel]: 50Hz:25fps (3840×2160,2560×1440,1920×1080,1280×960,1280×720) 60Hz: 24fps(3840×2160,2560×1440,1920×1080,1280×960,1280×720)
Sub-Stream[Panoramic channel]: 50Hz: 25fps (1560×656×2,704×320×2, 8MP: 704×320×2,512×232×2) 60Hz: 30fps (1560×656×2,704×320×2, 8MP: 704×320×2,512×232×2) [PTZ channel]: 50Hz: 25fps(704×576,640×480,352×288); 60Hz: 24fps(704×480,640×480,352×240)
Third Stream[Panoramic channel]: no [PTZ channel]: 50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288) 60Hz: 24fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

Audio

Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Sampling RatePCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Network

Network StorageNAS (NFS, SMB/CIFS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 user levels: administrator, operator, and user
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
ClientiVMS-4200, HikCentral Pro, Hik-Connect
Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+


Day/Night SwitchDay, night, auto, scheduled-switch
Image EnhancementBLC, HLC, 3D DNR
Wide Dynamic Range (WDR)[Panoramic channel] no, [PTZ channel] 120 dB
Defog[Panoramic channel]: no; [PTZ channel]: optical defog
Image StabilizationEIS (Built-in gyroscope to improve EIS performance),OIS
Regional ExposureYes
Regional FocusYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters SwitchYes
Privacy MaskProgrammable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
SNR≥ 55 dB

Interface

Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Fiber Optical1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm7 alarm inputs, 2 alarm outputs
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ResetYes

Event

Smart EventLine crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
Smart TrackingManual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes
Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Multi-Target-Type Detection[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle
People DensitySupports detecting the level of people density in the configured area
Congestion AlarmYes

General

Power36 VDC±20%, max. 135 W (including max. 12 W for IR)
Operating Condition-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
WiperNo
DemistYes
MaterialADC12
DimensionØ 427.6 mm x 425.9 mm(Ø16.8" × 16.7")
WeightApprox. 14.6kg

Approval

SafetyCB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017);
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
