*Images are for illustrative purposes. Actual product appearance and specifications may vary.
add compare icon

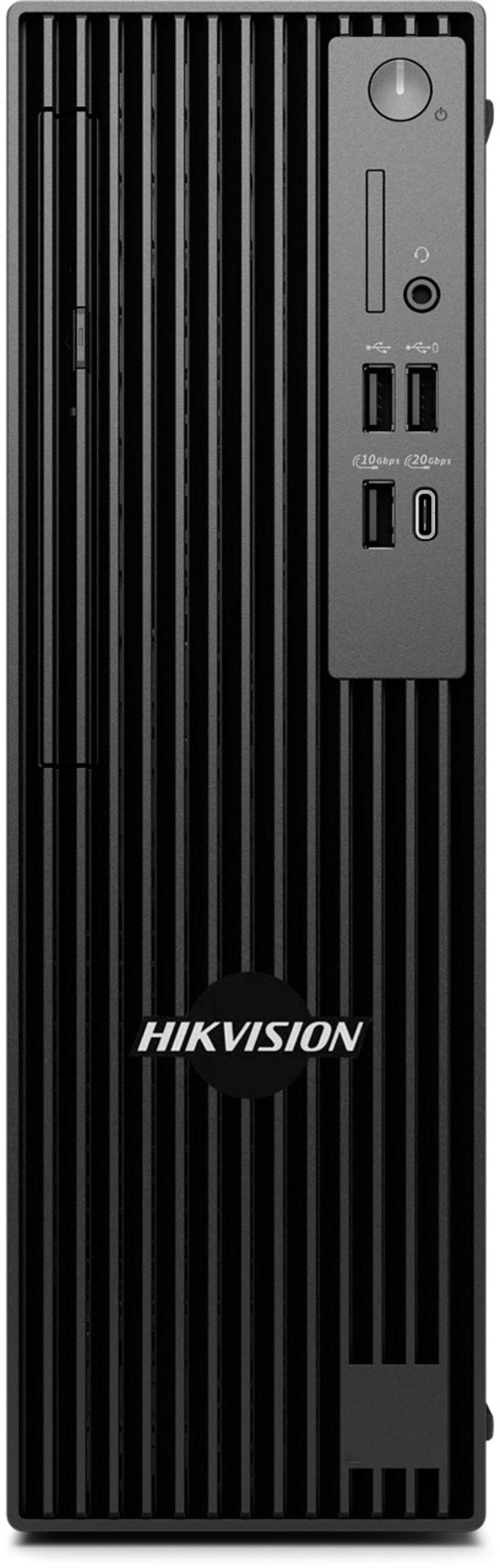

Tower Workstation

  • Four-screen independent output for efficient management
  • Pre-installed operating system and configured with keyboard and mouse, plug and play
  • Operates in extreme temperatures and high humidity
  • Customized dust filters for effective protection against wind borne sand and dust
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-VE41-T/HW7(B)
View more View Less
DS-VE41-T/HW7(B)
Data Sheet

Specification

  • Hardware Specifications
  • CPUUltra 7 265 Total Cores: 20 (Performance-cores: 8; Efficient-cores: 12) Total Threads: 20 Max Turbo Frequency: 5.3 GHz
  • Memory2 × 8GB Support 8GB/16GB/32GB, DDR5 Slots: 4 x DDR5 slots, supports 4 x 32 GB MAX
  • Hard Disks1TB M.2 SSD Support 256GB/ 512GB/ 1TB/2TB M.2 NVMe SSD Support 2TB 7200RPM/ 4TB 5400RPM 3.5-inch SATA HDD Slots: 1 x 3.5-inch SATA HDD slot
  • Supported Operating SystemsWin11 IoT
  • Graphic CardIntegrated Graphic
  • PCIe Slots1 half-height Gen4 PCIe x16 slot 1 half-height Gen3 PCIe x4 slot 1 half-height Gen3 PCIe x1 slot
  • Ports
  • Front Ports1 USB 2.0 (480 Mbps) port 1 USB 2.0 (480 Mbps) port with PowerShare 1 USB 3.2 Gen 2 (10 Gbps) port 1 USB 3.2 Gen 2x2 (20 Gbps) Type-C® port 1 global headset jack

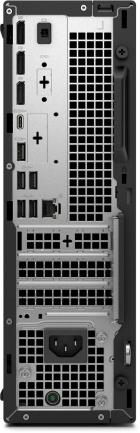

  • Rear Ports2 x USB 2.0 (480 Mbps) ports with SmartPower On 3 x USB 3.2 Gen 1 (5 Gbps) ports 1 x USB 3.2 Gen 2 (10 Gbps) Type-C port 1 x HDMI 2.1, up to 5120 x 3200 @60Hz 3 x DisplayPort™ 1.4a (HBR3) ports up to 5120 x 3200 @ 60Hz 1 x RJ45 (1GbE) Ethernet port
  • General
  • Net Weight6.58 kg (14.51 lb)
  • Gross Weight7.93 kg (17.49 lb)
  • Dimension (W × H × D)95.00 mm × 303.5 mm × 293.0 mm (3.74'' × 11.95'' × 11.54'')
  • Package Dimensions (W × H × D)396.00 mm × 267.00 mm × 494.00 mm (15.59'' × 10.51'' × 19.44'')
  • Operating Temperature5 °C to 45 °C (41 °F to 113 °F)
  • Storage Temperature-40 °C to 65 °C (-40 °F to 149 °F)
  • Operating Humidity10% to 90% (no condensation)
  • Storage Humidity0% to 95% (no condensation)
  • Power Supply360 W, Platinum
  • Form FactorTower SFF
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Hardware Specifications
CPU
Ultra 7 265 Total Cores: 20 (Performance-cores: 8; Efficient-cores: 12) Total Threads: 20 Max Turbo Frequency: 5.3 GHz
Memory
2 × 8GB Support 8GB/16GB/32GB, DDR5 Slots: 4 x DDR5 slots, supports 4 x 32 GB MAX
Hard Disks
1TB M.2 SSD Support 256GB/ 512GB/ 1TB/2TB M.2 NVMe SSD Support 2TB 7200RPM/ 4TB 5400RPM 3.5-inch SATA HDD Slots: 1 x 3.5-inch SATA HDD slot
Supported Operating Systems
Win11 IoT
Graphic Card
Integrated Graphic
PCIe Slots
1 half-height Gen4 PCIe x16 slot 1 half-height Gen3 PCIe x4 slot 1 half-height Gen3 PCIe x1 slot
Ports
Front Ports
1 USB 2.0 (480 Mbps) port 1 USB 2.0 (480 Mbps) port with PowerShare 1 USB 3.2 Gen 2 (10 Gbps) port 1 USB 3.2 Gen 2x2 (20 Gbps) Type-C® port 1 global headset jack
Rear Ports
2 x USB 2.0 (480 Mbps) ports with SmartPower On 3 x USB 3.2 Gen 1 (5 Gbps) ports 1 x USB 3.2 Gen 2 (10 Gbps) Type-C port 1 x HDMI 2.1, up to 5120 x 3200 @60Hz 3 x DisplayPort™ 1.4a (HBR3) ports up to 5120 x 3200 @ 60Hz 1 x RJ45 (1GbE) Ethernet port
General
Net Weight
6.58 kg (14.51 lb)
Gross Weight
7.93 kg (17.49 lb)
Dimension (W × H × D)
95.00 mm × 303.5 mm × 293.0 mm (3.74'' × 11.95'' × 11.54'')
Package Dimensions (W × H × D)
396.00 mm × 267.00 mm × 494.00 mm (15.59'' × 10.51'' × 19.44'')
Operating Temperature
5 °C to 45 °C (41 °F to 113 °F)
Storage Temperature
-40 °C to 65 °C (-40 °F to 149 °F)
Operating Humidity
10% to 90% (no condensation)
Storage Humidity
0% to 95% (no condensation)
Power Supply
360 W, Platinum
Form Factor
Tower SFF
