*Images are for illustrative purposes. Actual product appearance and specifications may vary.
add compare icon

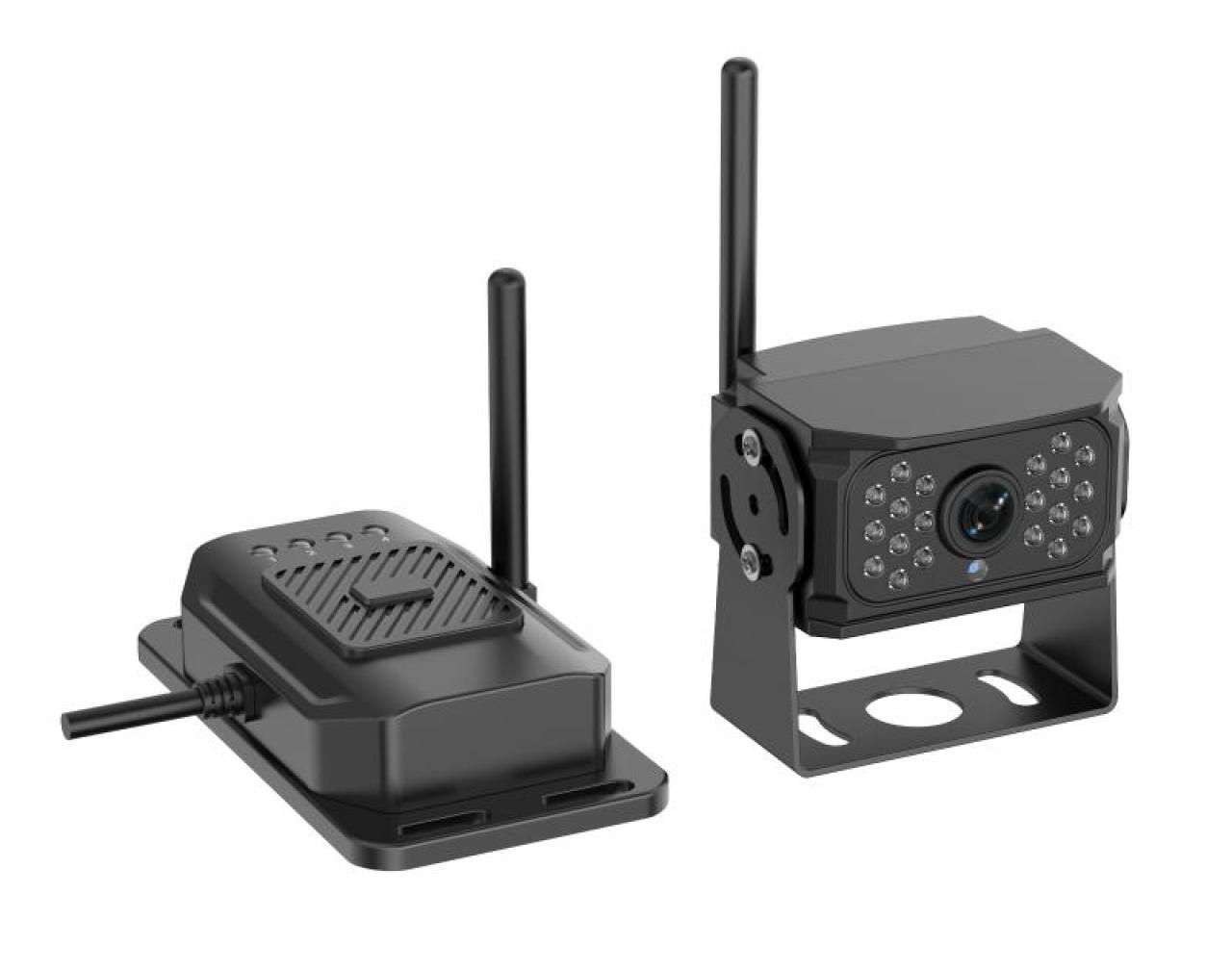

AE-VC257W-IT

  • On-board transmission range up to 150 meters or more (300 meters for open environment)
  • Support PAL / NTSC Standard，default PAL Standard
  • Min. illumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
  • With wireless automatic frequency hopping function
  • Power supply: DC9-36V
  • Waterproof, dustproof，IP67
View Less
View more
Sales Inquiry

Available models:

AE-VC257W-IT(2.8mm)(Kit)
View more View Less
AE-VC257W-IT

Specification

  • Camera
  • Shutter Speed1/50 s to 1/50,000 s
  • Day & NightAuto IR-CUT
  • Lens
  • FOVhorizontal: 114°, vertical: 61°, diagonal: 142°
  • Lens MountM12
  • Illuminator
  • IR Range8m~10m
  • Video
  • Video Compression H.264
  • Frame Rate1080P@25 fps
  • Wi-Fi
  • Wi-Fi ProtocolPwifi
  • Frequency RangeUtility Frequency：2403 MHz～2478 MHz，5170 MHz～5835
  • Wireless Range300m(Open Environment)，90m(Loading environment)
  • Receive Sensitivity-86dBm
  • Image
  • SNR42 dB
  • Wide Dynamic Range (WDR)DWR≥80db
  • Interface
  • Video OutputAHD，1920x1080，Video Latency Within 200ms
  • Interface Typecamera：1: video, 2: empty, 3: power, 4: ground Telematics Receiver：1:empty, 2: empty, 3: power, 4: ground
  • General
  • Camera MaterialCamera：metal Telematics Receiver：Plastic
  • Product DimensionCamera：81 mm × 48 mm ×65mm Telematics Receiver：128 mm × 69.1 mm ×31mm
  • Camera：365g Telematics Receiver：141g
  • Power9 to 36 V DC
  • Power ConsumptionCamera&Telematics Receiver：Max. 3W
  • Storage Conditions-40 °C to 85 °C (-40°F to 185 °F)
  • ProtectionIP67
  • Operating Temperature-30 °C to 75 °C (-22°F to 167 °F)
  • Operating Humidity0% - 95%
  • SensorProgressive Scan CMOS
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Shutter Speed
1/50 s to 1/50,000 s
Day & Night
Auto IR-CUT
Lens
FOV
horizontal: 114°, vertical: 61°, diagonal: 142°
Lens Mount
M12
Illuminator
IR Range
8m~10m
Video
Video Compression
H.264
Frame Rate
1080P@25 fps
Wi-Fi
Wi-Fi Protocol
Pwifi
Frequency Range
Utility Frequency：2403 MHz～2478 MHz，5170 MHz～5835
Wireless Range
300m(Open Environment)，90m(Loading environment)
Receive Sensitivity
-86dBm
SNR
42 dB
Wide Dynamic Range (WDR)
DWR≥80db
Interface
Video Output
AHD，1920x1080，Video Latency Within 200ms
Interface Type
camera：1: video, 2: empty, 3: power, 4: ground Telematics Receiver：1:empty, 2: empty, 3: power, 4: ground
General
Camera Material
Camera：metal Telematics Receiver：Plastic
Product Dimension
Camera：81 mm × 48 mm ×65mm Telematics Receiver：128 mm × 69.1 mm ×31mm
Camera：365g Telematics Receiver：141g
Power
9 to 36 V DC
Power Consumption
Camera&Telematics Receiver：Max. 3W
Storage Conditions
-40 °C to 85 °C (-40°F to 185 °F)
Protection
IP67
Operating Temperature
-30 °C to 75 °C (-22°F to 167 °F)
Operating Humidity
0% - 95%
Sensor
Progressive Scan CMOS
