EOL

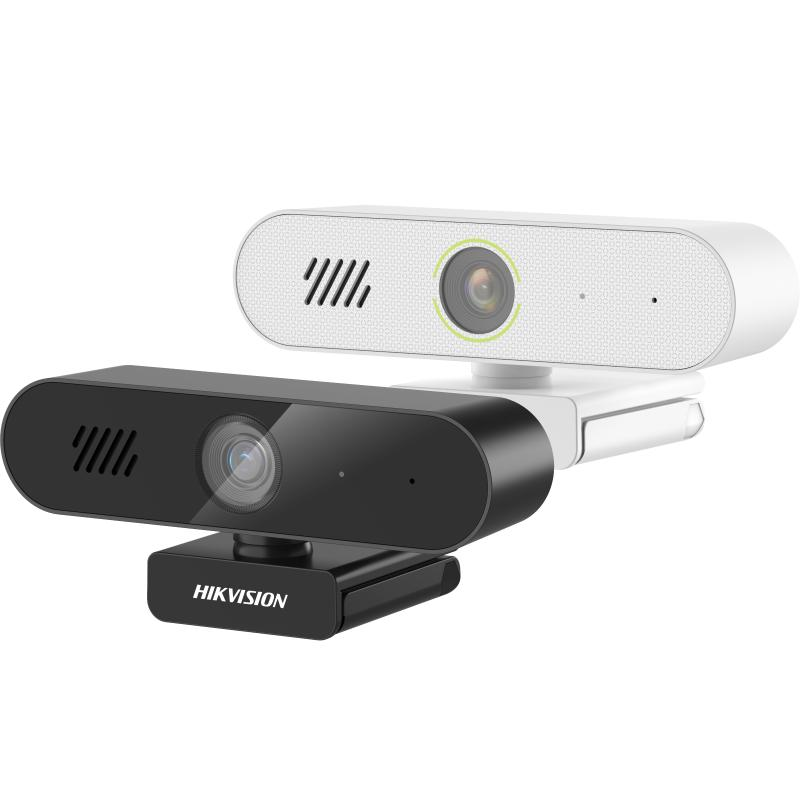

2 MP Web Camera

  • 2 MP CMOS
  • High quality imaging with 1920 × 1080 resolution
  • Min. illumination: 0.1 Lux @ (F1.2, AGC ON)
  • AGC for self-adaptive brightness
  • Built-in microphone with clear sound
  • Built-in speaker supports echo suppression
  • Type A interface, supporting USB 3.0 protocol. Plug-and-play, no need to install driver software

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-UA12
DS-UA12
EOL
Data Sheet

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.1 Lux @ (F1.2, AGC ON)
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night24/7 Color Imaging
  • Angle Adjustmentpan: 360°; tilt: -15° to 15°; ratation: 0°
  • Pickup Distance3 m
  • Lens
  • Lens Type3.6 mm fixed focal lens
  • Focal Length & FOVhorizontal FOV: 86°, vertical FOV: 55°, diagonal FOV: 95°
  • Lens MountM8
  • Object Distance Range0.5 m to ∞
  • Speaker
  • Speaker Range0 m to 2 m
  • Image
  • Frame RateMJPG: 1920 × 1080 @30/25 fps 1280 × 960 @30/25 fps 1280 × 720 @30/25 fps 640 × 480 @30/25 fps 640 × 360 @30/25 fps YUV: 1920 × 1080 @5 fps 1280 × 960 @5 fps 1280 × 720 @10 fps 640 × 480 @30/25 fps 640 × 360 @30/25 fps NV12： 1920 × 1080 @5 fps 1280 × 960 @10 fps 1280 × 720 @15 fps 640 × 480 @30/25 fps 640 × 360 @30/25 fps
  • Wide Dynamic Range (WDR)Digital WDR
  • Audio
  • Audio Sampling RateMicrophone: 16 kHz Speaker: 48 kHz
  • Interface
  • Video OutputUSB 3.0
  • AudioBuilt-in speaker Built-in microphone
  • General
  • Operating Condition-10 °C to 45 °C, humidity: 90% or less (non-condensing)
  • MaterialPlastic
  • Dimension103 mm × 48.5 mm × 43.6 mm (4.05" × 1.91" × 1.72")
  • WeightApprox. 113 g (0.25 lb.)
  • Packing ListCamera × 1 Quick Start Guide × 1
  • Power5 VDC ± 5% (USB), Max. 2.5 W (Max. 4.5 W with speaker working)
  • Cable Length1.5 m
  • System RequirementRecommended systems Windows 7/8/10/11 Android 8.1 and above version Linux 4.14 and above version macOS 10.12 and above version Chrome OS
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
2 MP CMOS
Signal System
PAL/NTSC
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.1 Lux @ (F1.2, AGC ON)
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
pan: 360°; tilt: -15° to 15°; ratation: 0°
Pickup Distance
3 m
Lens
Lens Type
3.6 mm fixed focal lens
Focal Length & FOV
horizontal FOV: 86°, vertical FOV: 55°, diagonal FOV: 95°
Lens Mount
M8
Object Distance Range
0.5 m to ∞
Speaker
Speaker Range
0 m to 2 m
Frame Rate
MJPG: 1920 × 1080 @30/25 fps 1280 × 960 @30/25 fps 1280 × 720 @30/25 fps 640 × 480 @30/25 fps 640 × 360 @30/25 fps YUV: 1920 × 1080 @5 fps 1280 × 960 @5 fps 1280 × 720 @10 fps 640 × 480 @30/25 fps 640 × 360 @30/25 fps NV12： 1920 × 1080 @5 fps 1280 × 960 @10 fps 1280 × 720 @15 fps 640 × 480 @30/25 fps 640 × 360 @30/25 fps
Wide Dynamic Range (WDR)
Digital WDR
Audio
Audio Sampling Rate
Microphone: 16 kHz Speaker: 48 kHz
Interface
Video Output
USB 3.0
Audio
Built-in speaker Built-in microphone
General
Operating Condition
-10 °C to 45 °C, humidity: 90% or less (non-condensing)
Material
Plastic
Dimension
103 mm × 48.5 mm × 43.6 mm (4.05" × 1.91" × 1.72")
Weight
Approx. 113 g (0.25 lb.)
Packing List
Camera × 1 Quick Start Guide × 1
Power
5 VDC ± 5% (USB), Max. 2.5 W (Max. 4.5 W with speaker working)
Cable Length
1.5 m
System Requirement
Recommended systems Windows 7/8/10/11 Android 8.1 and above version Linux 4.14 and above version macOS 10.12 and above version Chrome OS
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.1 Lux @ (F1.2, AGC ON)
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night24/7 Color Imaging
  • Angle Adjustmentpan: 360°; tilt: -15° to 15°; ratation: 0°
  • Pickup Distance3 m
Lens
  • Lens Type3.6 mm fixed focal lens
  • Focal Length & FOVhorizontal FOV: 86°, vertical FOV: 55°, diagonal FOV: 95°
  • Lens MountM8
  • Object Distance Range0.5 m to ∞
Speaker
  • Speaker Range0 m to 2 m
  • Frame RateMJPG: 1920 × 1080 @30/25 fps 1280 × 960 @30/25 fps 1280 × 720 @30/25 fps 640 × 480 @30/25 fps 640 × 360 @30/25 fps YUV: 1920 × 1080 @5 fps 1280 × 960 @5 fps 1280 × 720 @10 fps 640 × 480 @30/25 fps 640 × 360 @30/25 fps NV12： 1920 × 1080 @5 fps 1280 × 960 @10 fps 1280 × 720 @15 fps 640 × 480 @30/25 fps 640 × 360 @30/25 fps
  • Wide Dynamic Range (WDR)Digital WDR
Audio
  • Audio Sampling RateMicrophone: 16 kHz Speaker: 48 kHz
Interface
  • Video OutputUSB 3.0
  • AudioBuilt-in speaker Built-in microphone
General
  • Operating Condition-10 °C to 45 °C, humidity: 90% or less (non-condensing)
  • MaterialPlastic
  • Dimension103 mm × 48.5 mm × 43.6 mm (4.05" × 1.91" × 1.72")
  • WeightApprox. 113 g (0.25 lb.)
  • Packing ListCamera × 1 Quick Start Guide × 1
  • Power5 VDC ± 5% (USB), Max. 2.5 W (Max. 4.5 W with speaker working)
  • Cable Length1.5 m
  • System RequirementRecommended systems Windows 7/8/10/11 Android 8.1 and above version Linux 4.14 and above version macOS 10.12 and above version Chrome OS
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V3.05.01_221122
Applied to:
DS-UA12
