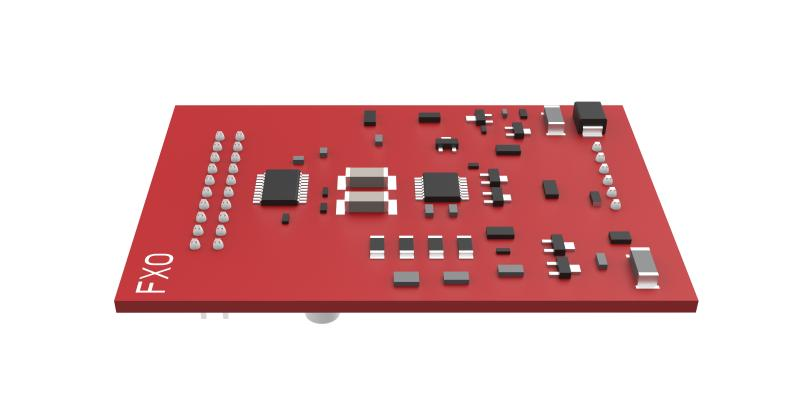

Expansion board for 2 FXO Ports

Supporting 2 FXO ports to terminate two analog PSTN line

View Less

Data Sheet

Available models:

DS-KSMXO2 Expansion board

DS-KSMXO2

Specification
Resources
Accessories

Data Sheet

Capacity
Max FXO/BRI Ports2 RJ11 FXO Ports

General
Supported modelDS-KS6150, DS-KS6160, DS-KS6170
SignalingForeign Exchange Office: 2 way connection to SIP SERVER or key system trunk. Foreign Exchange Station Defined Network: provides access to major carrier services. Private Line Automatic Ringdown (PLAR)-point-to-point unswitched connections.
Ring frequency detection15~50 Hz
TerminationPSTN Lines
Echo cancellationSupport
Ring voltage30+ VRMS (depend on the FXO mode)

Capacity

Max FXO/BRI Ports

2 RJ11 FXO Ports

General

Supported model

DS-KS6150, DS-KS6160, DS-KS6170

Signaling

Foreign Exchange Office: 2 way connection to SIP SERVER or key system trunk. Foreign Exchange Station Defined Network: provides access to major carrier services. Private Line Automatic Ringdown (PLAR)-point-to-point unswitched connections.

Ring frequency detection

15~50 Hz

Termination

PSTN Lines

Echo cancellation

Support

Ring voltage

30+ VRMS (depend on the FXO mode)

Capacity

Max FXO/BRI Ports2 RJ11 FXO Ports

General

Supported modelDS-KS6150, DS-KS6160, DS-KS6170
SignalingForeign Exchange Office: 2 way connection to SIP SERVER or key system trunk. Foreign Exchange Station Defined Network: provides access to major carrier services. Private Line Automatic Ringdown (PLAR)-point-to-point unswitched connections.
Ring frequency detection15~50 Hz
TerminationPSTN Lines
Echo cancellationSupport
Ring voltage30+ VRMS (depend on the FXO mode)
