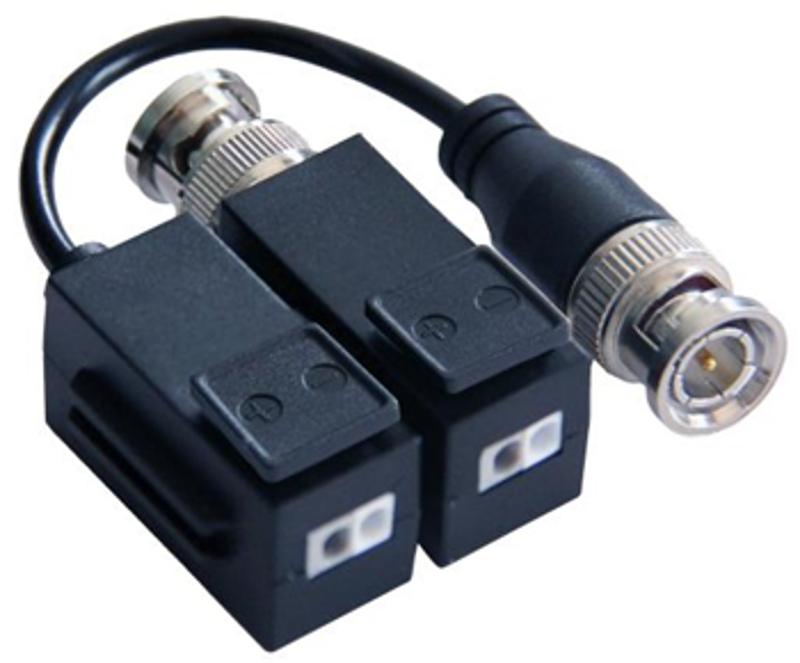

Video Balun

Real-time transmission over UTP cat5e/6
Compatible with all HD-TVI/CVI/AHD/CVBS analog camera
Low crosstalk and noise suppressions
Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
Wave Filter Design, Anti-Static Design
60 dB crosstalk and noise immunity
Exceptional interference rejection
ABS engineering plastic housing

View Less

Ficha Técnica

Modelos disponibles:

DS-1H18S/E(C)

Especificación
Resources
Accesorios

Ficha Técnica

Properties
Transmission Signal 1 channel
Distancia de transmisiónMax 350m
Category Type UTP CAT 5E/ 6

Video Transmission Properties and Port
Coaxial Video ConnectorBNC-M
Twisted-pair Video Connector Tool-less push-pin terminal block
Compatible Format HD-TVI/TVI/AHD/CVBS
Resolución720P/960P/1080P/3MP/4MP/5MP/8MP
Ant-interference>60dB

Protección
ESDContact discharge electricity level3 air discharge electricity level3 Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector2KV(different-code), 2KV(common-code) Per:IEC61000-4-5

Impedancia
BNC Male 75 ohms
UTP Cable100 ohms

Physical Properties
Shell ABS engineering plastic
ColorBlack
Dimensions ( L x W x H ) 175.3*15.4*17.8mm (BNC connector & cable excluded)
Weight 39 g

Stability
MTBF >10000 h

Environmental
Temperatura de funcionamiento-20º ~55º C
Temperatura de almacenamiento-40º ~ 150º C
Humidity0~95% (non-condensing)

Properties

Transmission Signal

1 channel

Distancia de transmisión

Max 350m

Category Type

UTP CAT 5E/ 6

Video Transmission Properties and Port

Coaxial Video Connector

BNC-M

Twisted-pair Video Connector

Tool-less push-pin terminal block

Compatible Format

HD-TVI/TVI/AHD/CVBS

Resolución

720P/960P/1080P/3MP/4MP/5MP/8MP

Ant-interference

>60dB

Protección

ESD

Contact discharge electricity level3 air discharge electricity level3 Per: IEC61000-4-2

Coaxial Cable Connector

2KV(common-code) Per:IEC61000-4-5

UTP Cable Connector

2KV(different-code), 2KV(common-code) Per:IEC61000-4-5

Impedancia

BNC Male

75 ohms

UTP Cable

100 ohms

Physical Properties

Shell

ABS engineering plastic

Color

Black

Dimensions ( L x W x H )

175.3*15.4*17.8mm (BNC connector & cable excluded)

Weight

39 g

Stability

MTBF

>10000 h

Environmental

Temperatura de funcionamiento

-20º ~55º C

Temperatura de almacenamiento

-40º ~ 150º C

Humidity

0~95% (non-condensing)
