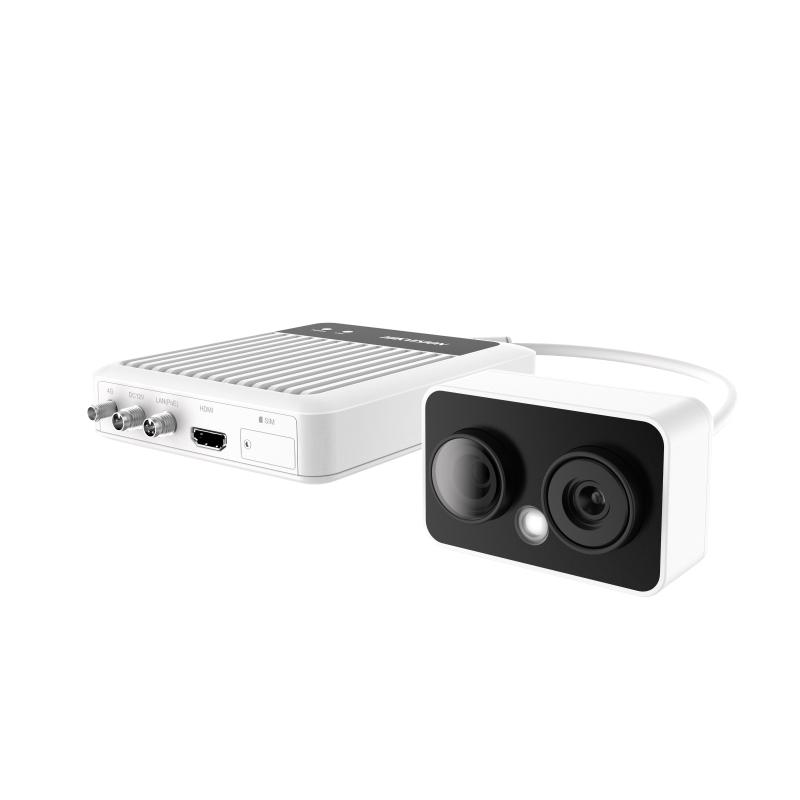

Temperature Screening Thermal & Optical Bi-Spectrum Network Separated Camera

160 × 120 (the resolution of output image is 320 × 240) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
Image processing technology: Linear, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
Temperature range: 28 °C to 45 °C; temperature accuracy: ±0.5 °C
Temperature exception alarm

View Less

Modelos disponibles:

DS-2TB3217-6/W

Especificación
Resources
Accesorios

Módulo térmico
Sensor de imagenVOx Uncooled Focal Plane Arrays
Resolución160 × 120
Intervalo de píxeles17 μm
Respuesta de Waveband8 μm to 14 μm
NETDLess than 40 mK (@ 25 °C,F#=1.1)
Longitud focal6.2 mm
IFOV2.74 mrad
AperturaF1.1
Campo de visión25° × 18.7° (H × V)
Min. Distancia de enfoque0.6m

Módulo óptico
Sensor de imagen1/2.7" Progressive Scan CMOS
Resolución2688 × 1520, 4 MP
Iluminación mínimaColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Campo de visión39.4° × 22.1°(H × V)
Longitud focal8 mm
Velocidad de obturación1s to 1/100,000s
WDR120 dB

Image Effect
Fusión de imagen de doble espectroDisplay the details of optical channel on thermal channel
Imagen en imagenDisplay partial image of thermal channel on the full screen of optical channel

Función inteligente
Rango de temperatura30 °C to 45 °C (86 °F to 113 °F)
Precisión de la temperatura± 0.5 °C

Video and Audio
Main streamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical: 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Compresión de vídeoH.264 (Baseline/Main/High Profile) /MJPEG/H.265
Compresión de audioG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
SeguridadUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Vista en vivo simultáneaUp to 20 channels

Interfaz
ClienteiVMS-4200, Hik-Connect
Navegador webPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Entrada de alarma1-ch inputs (0-5 VDC)
Salida de alarma1-ch relay outputs, alarm response actions configurable
Acción de alarmaSD recording/Relay output/Smart capture/FTP upload/Email linkage
Entrada de Audio1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Salida de audioLinear Level; Impedance: 600 Ω
Interfaz de comunicación1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
Almacenamiento a bordoBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

General
Idioma del cliente web32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Nivel de usuario/operadorUp to 32 users, 3 levels: Administrator, Operator, User
alimentaciónPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
Consumo de energíaPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W
Temperatura de trabajo/humedadFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
Nivel de protecciónIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensión73 mm × 45 mm × 37 mm (2.87" × 1.77" × 1.46") 113 mm × 150.5 mm × 31 mm (4.45" × 5.93" × 1.22")
Camera: 170 g (0.37 lb) Server: 470 g (1.04 lb)

Módulo térmico

Sensor de imagen

VOx Uncooled Focal Plane Arrays

Resolución

160 × 120

Intervalo de píxeles

17 μm

Respuesta de Waveband

8 μm to 14 μm

NETD

Less than 40 mK (@ 25 °C,F#=1.1)

Longitud focal

6.2 mm

IFOV

2.74 mrad

Apertura

F1.1

Campo de visión

25° × 18.7° (H × V)

Min. Distancia de enfoque

0.6m

Módulo óptico

Sensor de imagen

1/2.7" Progressive Scan CMOS

Resolución

2688 × 1520, 4 MP

Iluminación mínima

Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)

Campo de visión

39.4° × 22.1°(H × V)

Longitud focal

8 mm

Velocidad de obturación

1s to 1/100,000s

WDR

120 dB

Image Effect

Fusión de imagen de doble espectro

Display the details of optical channel on thermal channel

Imagen en imagen

Display partial image of thermal channel on the full screen of optical channel

Función inteligente

Rango de temperatura

30 °C to 45 °C (86 °F to 113 °F)

Precisión de la temperatura

± 0.5 °C

Video and Audio

Main stream

Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical: 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

Compresión de vídeo

H.264 (Baseline/Main/High Profile) /MJPEG/H.265

Compresión de audio

G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

API

Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface

Seguridad

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Vista en vivo simultánea

Up to 20 channels

Interfaz

Cliente

iVMS-4200, Hik-Connect

Navegador web

Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51

Entrada de alarma

1-ch inputs (0-5 VDC)

Salida de alarma

1-ch relay outputs, alarm response actions configurable

Acción de alarma

SD recording/Relay output/Smart capture/FTP upload/Email linkage

Entrada de Audio

1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Salida de audio

Linear Level; Impedance: 600 Ω

Interfaz de comunicación

1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

Almacenamiento a bordo

Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

General

Idioma del cliente web

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Nivel de usuario/operador

Up to 32 users, 3 levels: Administrator, Operator, User

alimentación

PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A

Consumo de energía

PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W

Temperatura de trabajo/humedad

From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less

Nivel de protección

IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensión

73 mm × 45 mm × 37 mm (2.87" × 1.77" × 1.46") 113 mm × 150.5 mm × 31 mm (4.45" × 5.93" × 1.22")

Camera: 170 g (0.37 lb) Server: 470 g (1.04 lb)
