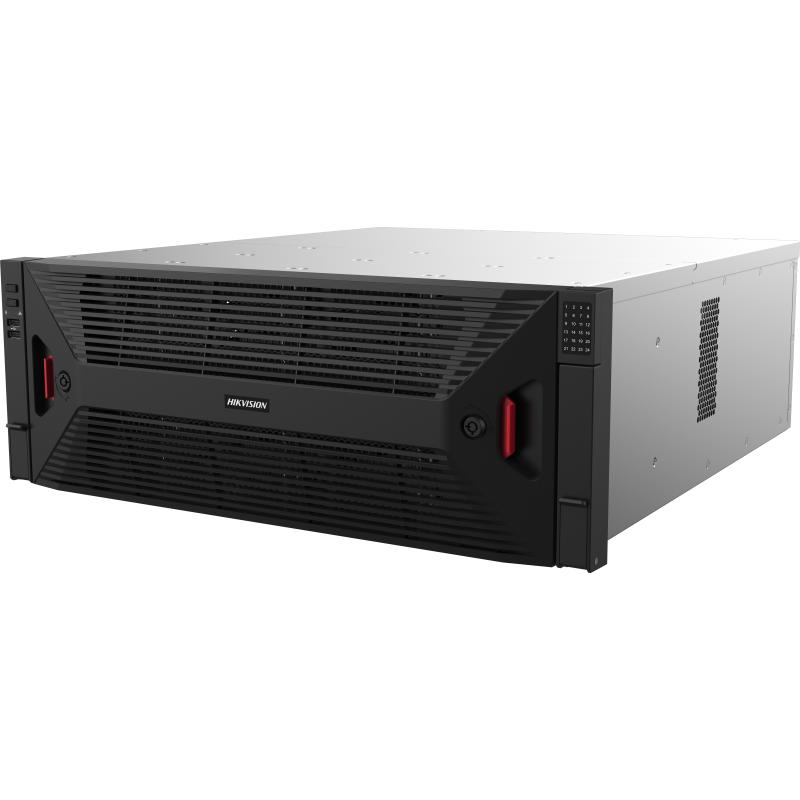

128-ch 4U 8K DeepinMind Super NVR

Up to 128-ch IP camera inputs
Up to 512 Mbps incoming bandwidth and 512 Mbps outgoing bandwidth
H.265+/H.265/H.264+/H.264 video formats
RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
Various AI functions, including facial recognition, perimeter protection powered by large model, video structuralization, and AcuSearch
Intelligent analytics based on deep learning algorithm
All channels perimeter protection powered by large model
Up to 72-ch facial recognition for video stream, or up to 128-ch facial recognition for face picture
Up to 54-ch video structuralization
Up to 36-ch AcuSearch
Up to 8-ch IP speakers can be connected

View Less

Data Sheet

Available models:

iDS-96128NXI-H24R

iDS-96128NXI-H24R ^NEW

Specification
Resources
Accessories

Data Sheet

Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
AI by CameraFacial recognition, perimeter protection, video structuralization, motion detection2.0, ANPR, people counting, VCA
Engine9, each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face AttributesWearing glasses, wearing a mask, facial expression, body temperature
Face Picture LibraryUp to 64 face picture libraries, up to 500,000 face pictures in list library, up to 300,000 face pictures in stranger library, up to 50,000,000 face pictures in face capture (each picture ≤ 6 MB, total capacity ≤ 40 GB)
Face Picture Comparison128-ch face picture comparison alarm (24 pictures per second each engine)
Facial Detection and Analytics PerformanceEach engine supports 8-ch 4 MP or 4-ch 8 MP face capture, 24 face pictures per second

AcuSearch
By NVRUp to 36-ch (4-ch for each engine )
By CameraAll channels *: The camera should enable AcuSearch function

Perimeter Protection
By NVRPerimeter protection without large model (each engine): 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP Perimeter protection powered by large model (each engine): 8 images per second
By CameraPerimeter protection powered by large model with AcuSense cameras: All channels

Video Structuralization
Structured Analysis54-ch 2 MP (6-ch for each engine), up to 8 MP

Video and Audio
IP Video Input128-ch
Incoming Bandwidth512 Mbps
Outgoing Bandwidth512 Mbps
HDMI 1 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
HDMI 2 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
VGA 1 Output1920 × 1080/60 Hz
Audio Output1-ch, 3.5mm
Two-Way Audio1-ch, 3.5mm
Synchronous Playback16-ch
Incoming Bandwidth (RAID Mode)512 Mbps
Outgoing Bandwidth (RAID mode)512 Mbps
VGA Output1920 × 1080/60 Hz
Video Output ModeProvide 4 groups of video outputs. The video outputs in the same group provide simultaneous output, and the video outputs between each group provide independent output. Group 1: HDMI 1/VGA/LCD Group 2: HDMI 2 Group 3: DP 1/V-DP 1 Group 4: DP 2/V-DP 2 Note: After enabling DP 1/DP 2, V-DP 1/V-DP 2 would be unavailable.

Decoding
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding FormatH.265+/H.265/H.264+/H.264
Synchronous Playback16-ch
Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Live View Window Division64/36/25/16/9/8/6/4/2/1
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM/MP3

Network
Network Interface4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
Remote Connection256
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
APIONVIF (profile S/G); SDK; ISAPI
Camera Access ProtocolONVIF(Version 2.5), RTSP

RAID
RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface
Serial Interface1 RS-485 (full-duplex), 1 RS-232
SATA24 SATA interfaces; 3.5-inch HDD
eSATA1 eSATA interface
CapacityUp to 20 TB capacity for each disk
Alarm In/Out16/8
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
Consumption≤ 200 W (without HDD)
Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
Working Humidity10% to 90%
Dimension (W × D × H)448 × 490 × 173 mm (17.6" × 19.3" × 6.8")
Weight≤25 kg (without HDD, 55.1 lb.)

Certification
Obtained CertificationCE, CB, KC, Rohs, Reach, WEEE, UKCA, LOA

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, video structuralization, AcuSearch

AI by Camera

Facial recognition, perimeter protection, video structuralization, motion detection2.0, ANPR, people counting, VCA

Engine

9, each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Attributes

Wearing glasses, wearing a mask, facial expression, body temperature

Face Picture Library

Up to 64 face picture libraries, up to 500,000 face pictures in list library, up to 300,000 face pictures in stranger library, up to 50,000,000 face pictures in face capture (each picture ≤ 6 MB, total capacity ≤ 40 GB)

Face Picture Comparison

128-ch face picture comparison alarm (24 pictures per second each engine)

Facial Detection and Analytics Performance

Each engine supports 8-ch 4 MP or 4-ch 8 MP face capture, 24 face pictures per second

AcuSearch

By NVR

Up to 36-ch (4-ch for each engine )

By Camera

All channels *: The camera should enable AcuSearch function

Perimeter Protection

By NVR

Perimeter protection without large model (each engine): 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP Perimeter protection powered by large model (each engine): 8 images per second

By Camera

Perimeter protection powered by large model with AcuSense cameras: All channels

Video Structuralization

Structured Analysis

54-ch 2 MP (6-ch for each engine), up to 8 MP

Video and Audio

IP Video Input

128-ch

Incoming Bandwidth

512 Mbps

Outgoing Bandwidth

512 Mbps

HDMI 1 Output

4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz

HDMI 2 Output

4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz

VGA 1 Output

1920 × 1080/60 Hz

Audio Output

1-ch, 3.5mm

Two-Way Audio

1-ch, 3.5mm

Synchronous Playback

16-ch

Incoming Bandwidth (RAID Mode)

512 Mbps

Outgoing Bandwidth (RAID mode)

512 Mbps

VGA Output

1920 × 1080/60 Hz

Video Output Mode

Provide 4 groups of video outputs. The video outputs in the same group provide simultaneous output, and the video outputs between each group provide independent output. Group 1: HDMI 1/VGA/LCD Group 2: HDMI 2 Group 3: DP 1/V-DP 1 Group 4: DP 2/V-DP 2 Note: After enabling DP 1/DP 2, V-DP 1/V-DP 2 would be unavailable.

Decoding

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Decoding Format

H.265+/H.265/H.264+/H.264

Synchronous Playback

16-ch

Decoding Capability

2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)

Live View Window Division

64/36/25/16/9/8/6/4/2/1

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM/MP3

Network

Network Interface

4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface

Remote Connection

256

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

API

ONVIF (profile S/G); SDK; ISAPI

Camera Access Protocol

ONVIF(Version 2.5), RTSP

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Serial Interface

1 RS-485 (full-duplex), 1 RS-232

SATA

24 SATA interfaces; 3.5-inch HDD

eSATA

1 eSATA interface

Capacity

Up to 20 TB capacity for each disk

Alarm In/Out

16/8

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0

General

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

Power Supply

100 to 240 VAC, 50 to 60 Hz, redundant power supply

Consumption

≤ 200 W (without HDD)

Working Temperature

0 °C to + 50 °C (32 °F to 122 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

448 × 490 × 173 mm (17.6" × 19.3" × 6.8")

Weight

≤25 kg (without HDD, 55.1 lb.)

Certification

Obtained Certification

CE, CB, KC, Rohs, Reach, WEEE, UKCA, LOA
