*Images are for illustrative purposes. Actual product appearance and specifications may vary.
NEW
add compare icon

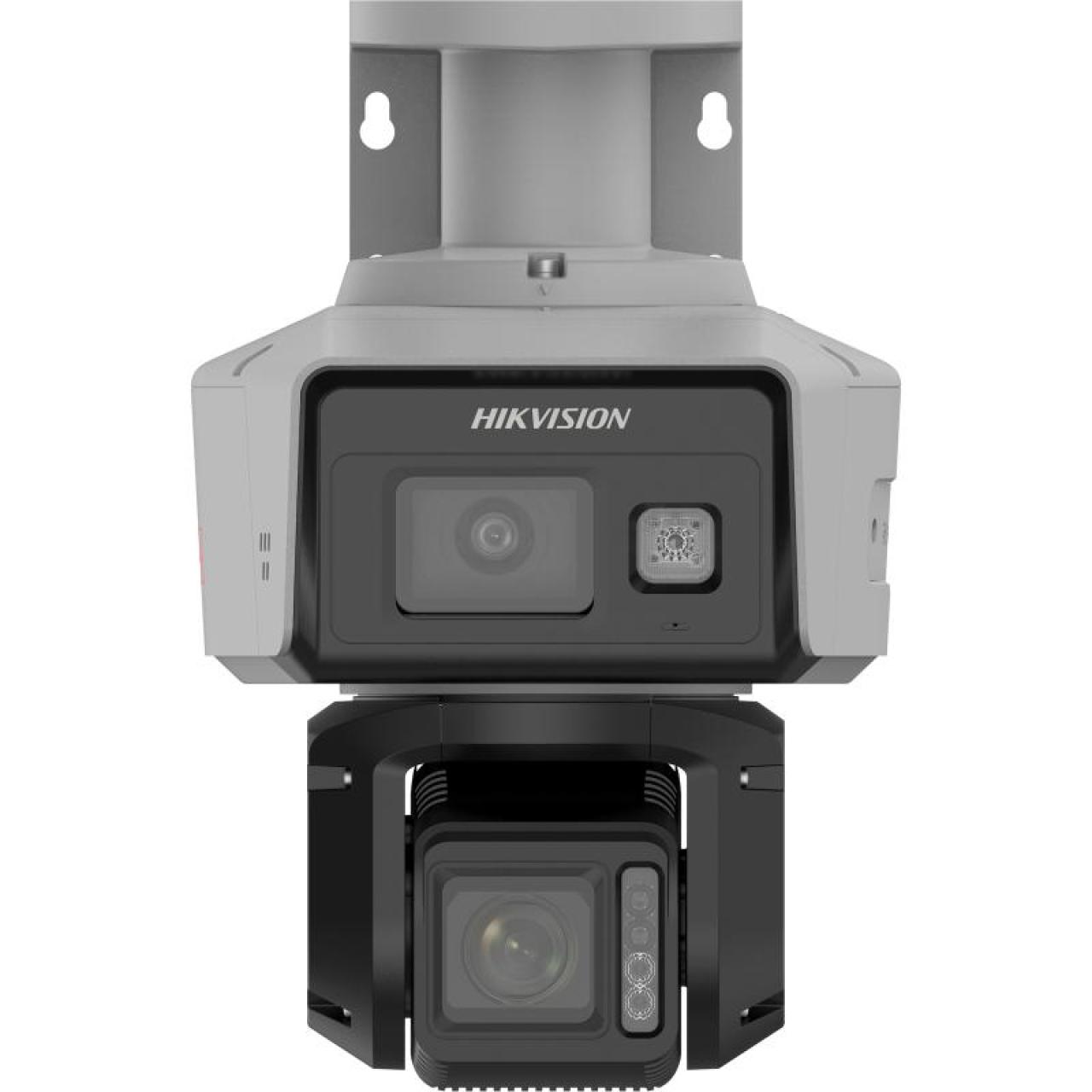

Polymer 4MP 20X TandemVu PTZ

  • High quality imaging with 4 MP resolution for bullet channel, 4MP for PTZ channel
  • 24/7 colorful imaging and excellent low-light performance with DarkFighter technology
  • Smart linkage between Bullet and PTZ channels by event triggering
  • Secures an expansive area with 20× optical zoom
  • Expansive night view with up to 30 m white light distance and 100 m IR distance
  • Audio visual alarm: The white flashing light and audible warning can be triggered by certain events

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2ST4C420MWG-E/14(PA)(F1)
View more View Less
DS-2ST4C420MWG-E/14(PA) NEW
Data Sheet

Specification

  • Camera
  • Image Sensor[Bullet channel] 1/2.8" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS
  • Min. Illumination[Bullet channel] Color: 0.004 Lux @ (F1.0, AGC ON), B/W: 0.0007 Lux @ (F1.0, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.03 Lux @ (F2.6, AGC ON), B/W: 0.01 Lux @ (F2.6, AGC ON), 0 lux with IR
  • Shutter Speed1 s to 1/30000 s
  • Slow ShutterYes
  • Day & Night[Panoramic channel] Color, [PTZ channel] IR cut filter
  • Zoom20 × optical,4 × digital
  • Max. Resolution[Panoramic channel] 2688 × 1520, [PTZ channel] 2688 × 1520
  • Lens
  • FOV[Panoramic channel] horizontal field of view: 80.2°, vertical field of view: 43.2°, diagonal field of view: 94.9°, [PTZ channel] horizontal field of view: 59° to 4°, vertical field of view: 33.8° to 2.3°, diagonal field of view: 66.8° to 4.6°
  • FocusAuto,semi-auto,manual
  • Zoom Speed[Panoramic channel] No, [PTZ channel] approx. 3.6 s
  • Focal Length[Panoramic channel] 4 mm, [PTZ channel] 4.3 to 86 mm
  • Aperture[Panoramic channel] F1.0, [PTZ channel] F2.6
  • Illuminator
  • Supplement Light TypeHybrid(IR + White Light)
  • Supplement Light Range[Panoramic channel] White Light Distance: up to 30 m, [PTZ channel] IR Distance: up to 100 m
  • Smart Supplement LightYes
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)[Panoramic channel] 6° to 18°, [PTZ channel] -10° to 90°
  • Pan Speed[PTZ channel] pan speed: configurable from 0.1° to 35°/s, preset speed: 35°/s
  • Tilt Speed[PTZ channel] tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s,[Panoramic channel] tilt speed configurable
  • Proportional Pan[Panoramic channel] No, [PTZ channel] Yes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemoryYes
  • Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Preset FreezingNo
  • Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
  • Video
  • Main Stream[Panoramic channel] 50 Hz: 20 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 20 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel] 50 Hz：20 fps（ 2688 x1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720） 60 Hz：20 fps（ 2688 x1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
  • Sub-Stream[PTZ channel] 50 Hz: 20 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 20 fps (704 × 576，640 × 480，352 × 288),[Panoramic channel] 50 Hz: 20 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 20 fps (704 × 576，640 × 480，352 × 288)
  • Video CompressionMain stream: H.265/H.264/H.265+/H.264+, Sub-stream: ：H.265/H.264/MJPEG, Third stream: no
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline profile,Main profile,High profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed regions for each stream
  • Audio
  • Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
  • Audio Bit Rate32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.722.1),64 Kbps (G.711),16 Kbps (G.726)
  • Audio Sampling Rate8 kHz,16 kHz
  • Environment Noise FilteringYes
  • Network
  • Network StorageNAS (NFS, SMB/CIFS)
  • ProtocolsDDNS,DNS,RTCP,UDP,RTP,RTSP,802.1X,HTTP,FTP,QoS,HTTPS,SNMP,PPPoE,SSL/TLS,TCP/IP,IPv4/IPv6,IGMP,NTP,ICMP,DHCP,UPnP
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users. 3 user levels: administrator, operator, and user
  • SecurityIP address filter,Password protection,complicated password,WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS,watermark,basic and digest authentication for HTTP/HTTPS,security audit log,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),TLS 1.2/1.3,control timeout settings,HTTPS encryption
  • ClientiVMS-4200,Hik-Connect
  • Web BrowserPlug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
  • Image
  • Wide Dynamic Range (WDR)Digital WDR
  • Day/Night SwitchDay,night,auto,schedule
  • Image EnhancementHLC,3D DNR,BLC
  • Privacy Mask[Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
  • DefogDigital defog
  • Regional ExposureYes
  • Regional Focus[Panoramic channel] No, [PTZ channel] Yes
  • Image Settingsbrightness,saturation,gain,sharpness,white balance,contrast,adjustable by client software or web browser
  • Image Parameters SwitchYes
  • SNR≥ 52 dB
  • Supplement Detection
  • Satellite PositioningNo
  • GyroscopeNo
  • CompassNo
  • Interface
  • On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
  • Built-in Microphone1 built-in microphone
  • Built-in Speaker1 built-in speaker
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Alarm2 input(s), 1 output(s)
  • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • ResetYes
  • Event
  • Basic Eventvideo tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,Motion detection
  • Linkage[Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Linkage and Tracking
  • Smart Linkagetracking takeover, linked tracking capture
  • General
  • Power12VDC± 15%, max. 25 W (Max. 25 W, including max. 3.8 W for light and max. 5 W for heater) PoE 802.3at, type2, class4, max. 25 W (Max. 25 W, including max. 3.8W for light and max. 5 W for heater)
  • MaterialPA*+50% glass fiber,PC+10%GF
  • General Functionmirror
  • Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
  • WiperNo
  • DemistYes
  • DimensionØ204 mm × 313 mm (Ø8.031" × 12.33")
  • Approx. 2.4 kg (5.29 lb.)
  • LanguageEnglish
  • Approval
  • EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
  • SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
  • EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
  • Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
[Bullet channel] 1/2.8" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS
Min. Illumination
[Bullet channel] Color: 0.004 Lux @ (F1.0, AGC ON), B/W: 0.0007 Lux @ (F1.0, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.03 Lux @ (F2.6, AGC ON), B/W: 0.01 Lux @ (F2.6, AGC ON), 0 lux with IR
Shutter Speed
1 s to 1/30000 s
Slow Shutter
Yes
Day & Night
[Panoramic channel] Color, [PTZ channel] IR cut filter
Zoom
20 × optical,4 × digital
Max. Resolution
[Panoramic channel] 2688 × 1520, [PTZ channel] 2688 × 1520
Lens
FOV
[Panoramic channel] horizontal field of view: 80.2°, vertical field of view: 43.2°, diagonal field of view: 94.9°, [PTZ channel] horizontal field of view: 59° to 4°, vertical field of view: 33.8° to 2.3°, diagonal field of view: 66.8° to 4.6°
Focus
Auto,semi-auto,manual
Zoom Speed
[Panoramic channel] No, [PTZ channel] approx. 3.6 s
Focal Length
[Panoramic channel] 4 mm, [PTZ channel] 4.3 to 86 mm
Aperture
[Panoramic channel] F1.0, [PTZ channel] F2.6
Illuminator
Supplement Light Type
Hybrid(IR + White Light)
Supplement Light Range
[Panoramic channel] White Light Distance: up to 30 m, [PTZ channel] IR Distance: up to 100 m
Smart Supplement Light
Yes
PTZ
Movement Range (Pan)
360°
Movement Range (Tilt)
[Panoramic channel] 6° to 18°, [PTZ channel] -10° to 90°
Pan Speed
[PTZ channel] pan speed: configurable from 0.1° to 35°/s, preset speed: 35°/s
Tilt Speed
[PTZ channel] tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s,[Panoramic channel] tilt speed configurable
Proportional Pan
[Panoramic channel] No, [PTZ channel] Yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
Yes
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Preset Freezing
No
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Video
Main Stream
[Panoramic channel] 50 Hz: 20 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 20 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel] 50 Hz：20 fps（ 2688 x1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720） 60 Hz：20 fps（ 2688 x1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
Sub-Stream
[PTZ channel] 50 Hz: 20 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 20 fps (704 × 576，640 × 480，352 × 288),[Panoramic channel] 50 Hz: 20 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 20 fps (704 × 576，640 × 480，352 × 288)
Video Compression
Main stream: H.265/H.264/H.265+/H.264+, Sub-stream: ：H.265/H.264/MJPEG, Third stream: no
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile,Main profile,High profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed regions for each stream
Audio
Audio Compression
G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate
32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.722.1),64 Kbps (G.711),16 Kbps (G.726)
Audio Sampling Rate
8 kHz,16 kHz
Environment Noise Filtering
Yes
Network
Network Storage
NAS (NFS, SMB/CIFS)
Protocols
DDNS,DNS,RTCP,UDP,RTP,RTSP,802.1X,HTTP,FTP,QoS,HTTPS,SNMP,PPPoE,SSL/TLS,TCP/IP,IPv4/IPv6,IGMP,NTP,ICMP,DHCP,UPnP
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator, and user
Security
IP address filter,Password protection,complicated password,WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS,watermark,basic and digest authentication for HTTP/HTTPS,security audit log,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),TLS 1.2/1.3,control timeout settings,HTTPS encryption
Client
iVMS-4200,Hik-Connect
Web Browser
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
Wide Dynamic Range (WDR)
Digital WDR
Day/Night Switch
Day,night,auto,schedule
Image Enhancement
HLC,3D DNR,BLC
Privacy Mask
[Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Defog
Digital defog
Regional Exposure
Yes
Regional Focus
[Panoramic channel] No, [PTZ channel] Yes
Image Settings
brightness,saturation,gain,sharpness,white balance,contrast,adjustable by client software or web browser
Image Parameters Switch
Yes
SNR
≥ 52 dB
Supplement Detection
Satellite Positioning
No
Gyroscope
No
Compass
No
Interface
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Built-in Microphone
1 built-in microphone
Built-in Speaker
1 built-in speaker
Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Alarm
2 input(s), 1 output(s)
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset
Yes
Event
Basic Event
video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,Motion detection
Linkage
[Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Linkage and Tracking
Smart Linkage
tracking takeover, linked tracking capture
General
Power
12VDC± 15%, max. 25 W (Max. 25 W, including max. 3.8 W for light and max. 5 W for heater) PoE 802.3at, type2, class4, max. 25 W (Max. 25 W, including max. 3.8W for light and max. 5 W for heater)
Material
PA*+50% glass fiber,PC+10%GF
General Function
mirror
Operating Condition
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
Wiper
No
Demist
Yes
Dimension
Ø204 mm × 313 mm (Ø8.031" × 12.33")
Approx. 2.4 kg (5.29 lb.)
Language
English
Approval
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
Safety
CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
