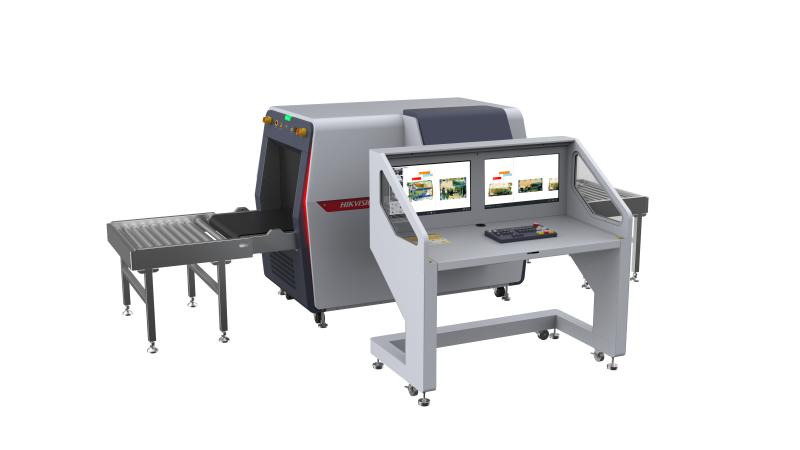

ISD-SC6040D-H4CVL

  • Standard Time / Date, baggage counting, user management, log management, X-ray on time, power on self-test, bi-directional scanning, enhanced scanning, system information management, built-in system diagnostics, standby mode, training, HCP, organic materials alarm, non-penetration alarm, explosive detection, etc.
  • Image Enhancement Color / Black & White(C/B&W), Organic stripping(ORG-), Inorganic stripping(INORG-), Negative, High / Low penetration(H/L), Absorptivity increase(ABS+), Absorptivity decrease(ABS-), Super Enhancement(SEN), Edge Enhancement(Edge) and Suspect materials enhancement(Z789), 64X zoom in and 3X image magnifier, etc.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

ISD-SC6040D-H4CVL(220V)(set)
ISD-SC6040D-H4CVL(110V)(set)
ISD-SC6040D-H4CVL
Data Sheet

Specification

  • Dimension Parameters
  • Tunnel Size620 mm × 420 mm (W × H)
  • Appearance and Dimension 2311 mm(L) × 1283 mm(W) × 1285 mm(H)
  • Specification Parameters
  • Conveyor Height600
  • Conveyor speed0.2、0.3、0.4 m/s
  • Performance Parameters
  • Penetration32
  • Wire resolution38
  • Spatial resolution 1.0
  • Radiation Dose
  • X-ray dose per inspection< 5 μGy
  • X-ray leakage<1 μGy/h, 100 mm away from device enclosure
  • Display Parameters
  • Screen Resolution1920*1080
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Dimension Parameters
Tunnel Size
620 mm × 420 mm (W × H)
Appearance and Dimension
2311 mm(L) × 1283 mm(W) × 1285 mm(H)
Specification Parameters
Conveyor Height
600
Conveyor speed
0.2、0.3、0.4 m/s
Performance Parameters
Penetration
32
Wire resolution
38
Spatial resolution
1.0
Radiation Dose
X-ray dose per inspection
< 5 μGy
X-ray leakage
<1 μGy/h, 100 mm away from device enclosure
Display Parameters
Screen Resolution
1920*1080
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Dimension Parameters
  • Tunnel Size620 mm × 420 mm (W × H)
  • Appearance and Dimension 2311 mm(L) × 1283 mm(W) × 1285 mm(H)
Specification Parameters
  • Conveyor Height600
  • Conveyor speed0.2、0.3、0.4 m/s
Performance Parameters
  • Penetration32
  • Wire resolution38
  • Spatial resolution 1.0
Radiation Dose
  • X-ray dose per inspection< 5 μGy
  • X-ray leakage<1 μGy/h, 100 mm away from device enclosure
Display Parameters
  • Screen Resolution1920*1080
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
