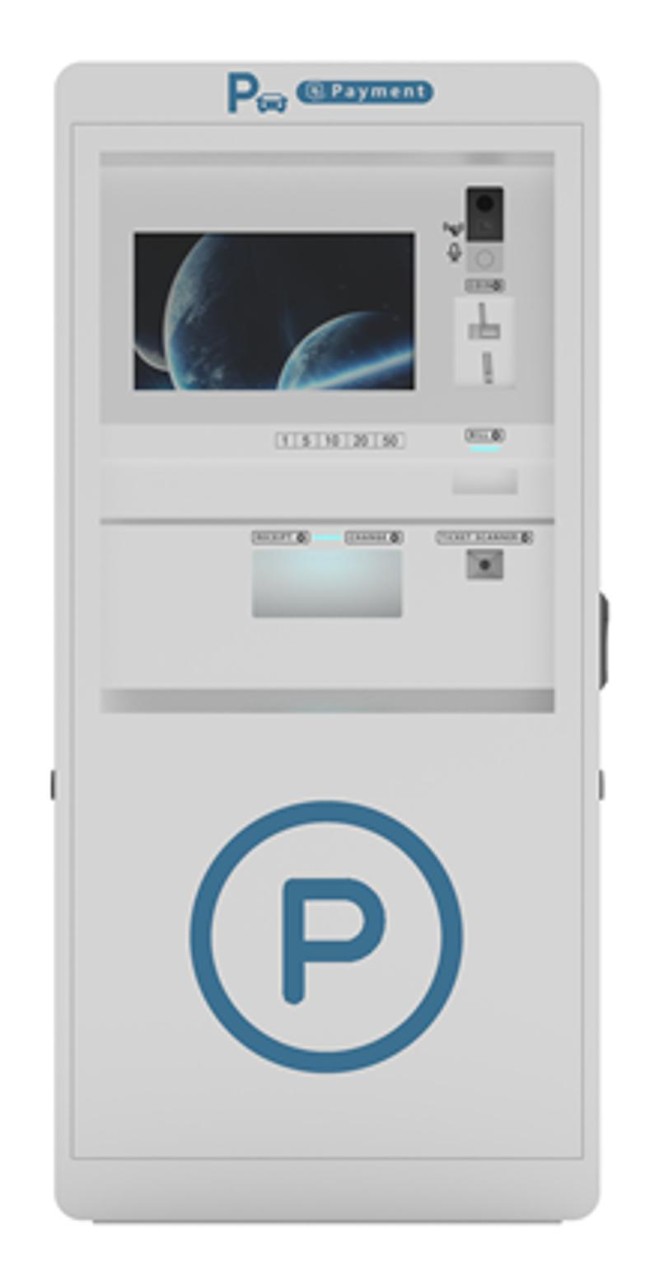

Automatic Payment Machine

Integrated voucher printer, scanner, contactless card reader, banknote feeder, coin slot, coin change and other functions;
improve the efficiency of charging, improve the level of information management, and is suitable for all kinds of charging parking places.
Use SCN bill and coin module, up to 99% recognition accuracy rate

View Less

Data Sheet

Available models:

DS-TPP427

Specification
Resources
Accessories

Data Sheet

Main LCD
Panel Typea-Si TFT-LCD
Screen Dimensions18.5 inch
Display Color16.7 M
Screen Ratio16:9
Resolution1366 × 768, SXGA
Panel Brightness1000 cd/m² (Typ.)
Contrast1000:1 (Typ.) (transmission)
Touch Resolution32767 × 32767
Touch Accuracy< 1.5 mm (central area), < 3.2 mm (edge area)
Response Time< 16 ms
Touch Intensity< 85 g
Touch TimesNo limit
Service Life30000 h
Transmittance> 95%

PC
MainboardMini ITX
CPUI3 10110
Memory4G DDR4 memory
Storage256 G SSD
SystemWin10 X64 operating system

Bill Collection
Supported Currency TypeMax. 5
ReliabilityMTBF (Mean Time Between Failures): 200,000 h
ExtensibilityMultiple cash boxes/panels available
Communication InterfaceRS-232
Power Supply12 VDC
Bill Collection Capacity500 pieces (1000 pieces available)

Bill Change
Supported Currency TypeMax. 3
ReliabilityMTBF (Mean Time Between Failures): 200,000 h
ExtensibilityMultiple cash boxes/panels available
Communication InterfaceRS-232
Power Supply12 VDC
Bill Change Capacity500 pieces

Coin Collection
Coin In ModeFrom top/side
Receiving TypeMax. 3
Coin Collection Box Capacity137 mm × 167 mm × 55 mm (E.g., 800 × RMB 1 coin)
Receiving Speed2 coins/s
Coin Classification Channel3 channels optional
Coin Dimensionsφ 15 to 30 mm
Security CertificateCE, RoHS

Coin Change
Coin Out ModeOrbital coin out
Coin Out TypeMax. 2
Coin Change Box CapacityUltra-large capacity (E.g., 1300 × RMB 1 coin)
Service Life3,000,000 coins, no internal spring, no quick-wear part, durable

Printer
Print ModeThermal line printer
Print SpeedMax. 150 mm/s
Print DirectionOne-way friction paper feed
Paper Width80 mm
Max. Width of Winding ShaftMax. 100 mm
Print Density8 dots/mm
Valid Print Width76 mm

Video Intercom
ResolutionMain stream: 1920 × 1080p Sub stream: 640 × 480p
FoVHorizontal: 131°, vertical: 78°
Supplement LightIR light, up to 3 m
Audio Input1 built-in omnidirectional microphone
Audio Output1 built-in loudspeaker
Volume AdjustmentAdjustable

Code Reading
Recognition ModeCMOS
Image Pixel640 × 480
Reading AngleTilt angle: ± 65°, pitch angle: ± 45°
Reading Code TypeBar code, QR code
InterfaceUSB, RS-232
Reading Distance50 cm to 120 cm

Temperature Control System
Heater500 W PTC heater, combined with 9225 ball fan to raise case temperature quickly
Radiator12025 dual fans for heat dissipation
ControllerTemperature range: 0 to 60 ℃, auto control
Dehumidifier60 W, dehumidification space: 2 m³, moisture removal: 300 ml/day, auto dehumidification, humidity range: 0 to 99% RH

UPS
Capacity2000 VA/1200 W
Input VoltageRated voltage: 220 VAC, input voltage range: 140 to 290 VAC @ 50 Hz ± 10%
Output VoltageOutput voltage range under utility mode: 210 to 235 VAC ± 1%, output voltage range under battery mode: 220 VAC ± 10% @ 50 ± 1 Hz, transition time: 2 to 6 ms, simulated sine wave
Alarm1 time/8 s under battery mode, 1 time/1 s under low battery mode, 1 time/0.5 s under overload mode, continuous buzzer under error
Battery12 V 9 AH battery set, chargeble to 90% in 6-8 h, enabling the device of 100 W to work for approx. 70 min under battery mode without power supply
Protection FunctionSurge protection, Overload protection, Discharge protection, Short circuit protection

Installation
Maintenance ModeFront maintenance installation, no need to embed into the wall

General
Working EnvironmentWorking temperature: -25 ℃ to 50 ℃ (-13 °F to 122 °F), humidity: 10% to 90%
Storage Temperature and HumidityStorage temperature: -25 ℃ to 70 ℃ (-13 °F to 158 °F), humidity: 10% to 90%
Working Voltage 220 VAC
Power Consumption< 200 W
Dimensions800 × 1706 × 695 mm (31.5 × 61.2 × 27.4 inch)
Dimensions (with Package)900 × 1930 × 800 mm (35.4 × 76.0 × 31.5 inch)
Weight195 kg (429.9 lb.)
Weight (with Package)220 kg (485.0 lb.)

Main LCD

Panel Type

a-Si TFT-LCD

Screen Dimensions

18.5 inch

Display Color

16.7 M

Screen Ratio

16:9

Resolution

1366 × 768, SXGA

Panel Brightness

1000 cd/m² (Typ.)

Contrast

1000:1 (Typ.) (transmission)

Touch Resolution

32767 × 32767

Touch Accuracy

< 1.5 mm (central area), < 3.2 mm (edge area)

Response Time

< 16 ms

Touch Intensity

< 85 g

Touch Times

No limit

Service Life

30000 h

Transmittance

> 95%

Mainboard

Mini ITX

CPU

I3 10110

Memory

4G DDR4 memory

Storage

256 G SSD

System

Win10 X64 operating system

Bill Collection

Supported Currency Type

Max. 5

Reliability

MTBF (Mean Time Between Failures): 200,000 h

Extensibility

Multiple cash boxes/panels available

Communication Interface

RS-232

Power Supply

12 VDC

Bill Collection Capacity

500 pieces (1000 pieces available)

Bill Change

Supported Currency Type

Max. 3

Reliability

MTBF (Mean Time Between Failures): 200,000 h

Extensibility

Multiple cash boxes/panels available

Communication Interface

RS-232

Power Supply

12 VDC

Bill Change Capacity

500 pieces

Coin Collection

Coin In Mode

From top/side

Receiving Type

Max. 3

Coin Collection Box Capacity

137 mm × 167 mm × 55 mm (E.g., 800 × RMB 1 coin)

Receiving Speed

2 coins/s

Coin Classification Channel

3 channels optional

Coin Dimensions

φ 15 to 30 mm

Security Certificate

CE, RoHS

Coin Change

Coin Out Mode

Orbital coin out

Coin Out Type

Max. 2

Coin Change Box Capacity

Ultra-large capacity (E.g., 1300 × RMB 1 coin)

Service Life

3,000,000 coins, no internal spring, no quick-wear part, durable

Printer

Print Mode

Thermal line printer

Print Speed

Max. 150 mm/s

Print Direction

One-way friction paper feed

Paper Width

80 mm

Max. Width of Winding Shaft

Max. 100 mm

Print Density

8 dots/mm

Valid Print Width

76 mm

Video Intercom

Resolution

Main stream: 1920 × 1080p Sub stream: 640 × 480p

FoV

Horizontal: 131°, vertical: 78°

Supplement Light

IR light, up to 3 m

Audio Input

1 built-in omnidirectional microphone

Audio Output

1 built-in loudspeaker

Volume Adjustment

Adjustable

Code Reading

Recognition Mode

CMOS

Image Pixel

640 × 480

Reading Angle

Tilt angle: ± 65°, pitch angle: ± 45°

Reading Code Type

Bar code, QR code

Interface

USB, RS-232

Reading Distance

50 cm to 120 cm

Temperature Control System

Heater

500 W PTC heater, combined with 9225 ball fan to raise case temperature quickly

Radiator

12025 dual fans for heat dissipation

Controller

Temperature range: 0 to 60 ℃, auto control

Dehumidifier

60 W, dehumidification space: 2 m³, moisture removal: 300 ml/day, auto dehumidification, humidity range: 0 to 99% RH

UPS

Capacity

2000 VA/1200 W

Input Voltage

Rated voltage: 220 VAC, input voltage range: 140 to 290 VAC @ 50 Hz ± 10%

Output Voltage

Output voltage range under utility mode: 210 to 235 VAC ± 1%, output voltage range under battery mode: 220 VAC ± 10% @ 50 ± 1 Hz, transition time: 2 to 6 ms, simulated sine wave

Alarm

1 time/8 s under battery mode, 1 time/1 s under low battery mode, 1 time/0.5 s under overload mode, continuous buzzer under error

Battery

12 V 9 AH battery set, chargeble to 90% in 6-8 h, enabling the device of 100 W to work for approx. 70 min under battery mode without power supply

Protection Function

Surge protection, Overload protection, Discharge protection, Short circuit protection

Installation

Maintenance Mode

Front maintenance installation, no need to embed into the wall

General

Working Environment

Working temperature: -25 ℃ to 50 ℃ (-13 °F to 122 °F), humidity: 10% to 90%

Storage Temperature and Humidity

Storage temperature: -25 ℃ to 70 ℃ (-13 °F to 158 °F), humidity: 10% to 90%

Working Voltage

220 VAC

Power Consumption

< 200 W

Dimensions

800 × 1706 × 695 mm (31.5 × 61.2 × 27.4 inch)

Dimensions (with Package)

900 × 1930 × 800 mm (35.4 × 76.0 × 31.5 inch)

Weight

195 kg (429.9 lb.)

Weight (with Package)

220 kg (485.0 lb.)
