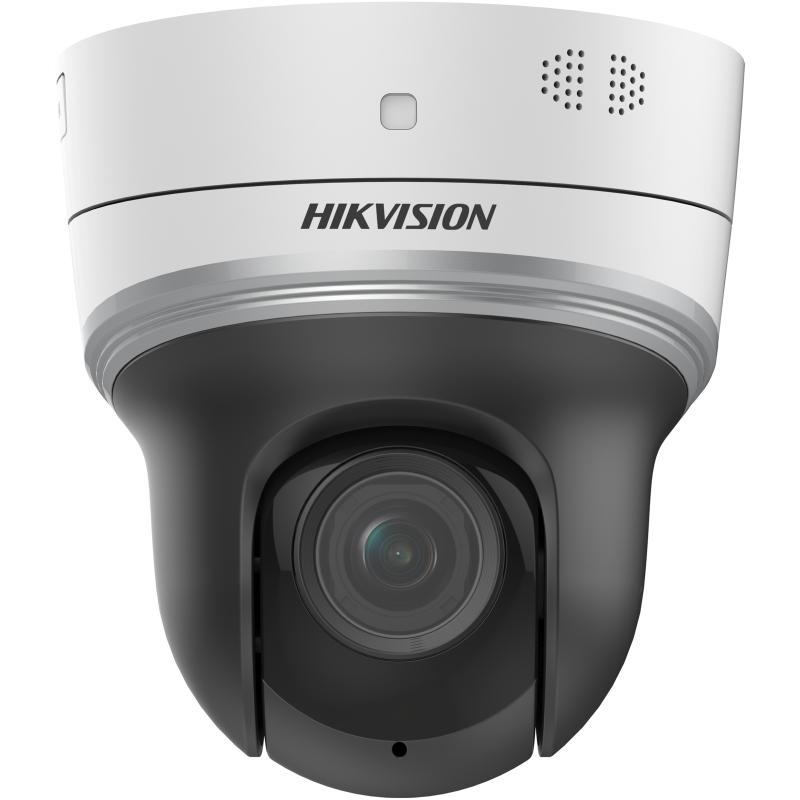

DS-2DE2204IW-DE3(S6)

2-inch 2 MP 4x Zoom IR Mini PT Dome Network Camera

High quality imaging with 2 MP resolution
Clear imaging against strong back light due to 120 dB WDR technology
4× optical zoom provides close up views over expansive areas
Hik-Connect cloud service and APP for remote management and views of devices
Expansive night view with up to 30 m IR distance
Built-in microphone and speaker

View Less

Available models:

DS-2DE2204IW-DE3(S6)

DS-2DE2204IW-DE3(S6)(B)

Camera
Image Sensor1/2.8" progressive scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.05 Lux @ (F1.8, AGC ON); B/W: 0.005 Lux @ (F1.8, AGC ON); 0 Lux with IR
Shutter Speed1/1 to 1/30,000 s
Day & NightICR
Zoom16x digital

Lens
Focal Length2.8 to 12 mm, 4 × Optical
FOVHorizontal field of view: 96° to 46° (Wide-Tele) Vertical field of view: 51° to 26° (Wide-Tele) Diagonal field of view: 112° to 55° (Wide-Tele)
ApertureF1.8
Zoom SpeedApprox. 2 s (wide-tele)

Illuminator
Supplement Light RangeUp to 30 m

PTZ
Movement Range (Pan)350°
Movement Range (Tilt)0° to 90°
Pan Speedpan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Panyes
Presets300
Preset Freezingyes
Park ActionPreset, patrol scan
3D Positioningyes
PTZ Status Displayyes
Scheduled Taskpreset, dome reboot, dome adjust, aux output
Power-off Memoryyes

Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265, H.264, MJPEG
Scalable Video Coding (SVC)main stream, sub-stream, third stream
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Bit RateAAC: 16 kbps, 32 kbps, 64 kbps, MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling RateAAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
Environment Noise Filteringyes

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live ViewUp to 20 channels
APIISAPI, Hikvision SDK, Hik-Connect, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T)
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network StorageNAS (NFS, SMB/ CIFS)
Web BrowserIE10+, Chrome57+, Firefox52+, Safari12+

Image Parameters Switchyes
Image Settingssaturation, brightness, contrast, sharpness
Day/Night Switchday, night, auto, scheduled-switch
Wide Dynamic Range (WDR)120 dB WDR
SNR＞52dB
Defogyes
Image EnhancementBLC, HLC, 3D DNR
Privacy Maskup to 24 masks (8 masks for each scene)
Regional Exposureyes

Interface
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
Audio1 built-in microphone,1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 built-in speaker, 1 audio output, line level, impedance: 600 Ω
Alarm1 alarm input, 1 alarm output
RESETAREyes
Power Output12 VDC, max. 60 mA

Event
Basic EventMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output
Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset)

General
Power12 VDC, PoE (802.3at), max. 14 W
DimensionØ125 × 137.2 mm (Ø 4.92" × 5.38")
WeightApprox. 650 g (1.4 lb.)
Operating ConditionTemperature: -10°C to 50°C (14°F to 122°F), Humidity: ≤ 90%
General Functionmirror, password protection, watermark, IP address filter

Approval
ProtectionIP54 (IEC 60529-2013),TVS 4000 V lightning protection, surge protection and voltage transient protection

Specification

Camera

Image Sensor

1/2.8" progressive scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.05 Lux @ (F1.8, AGC ON); B/W: 0.005 Lux @ (F1.8, AGC ON); 0 Lux with IR

Shutter Speed

1/1 to 1/30,000 s

Day & Night

ICR

Zoom

16x digital

Lens

Focal Length

2.8 to 12 mm, 4 × Optical

FOV

Horizontal field of view: 96° to 46° (Wide-Tele) Vertical field of view: 51° to 26° (Wide-Tele) Diagonal field of view: 112° to 55° (Wide-Tele)

Aperture

F1.8

Zoom Speed

Approx. 2 s (wide-tele)

Illuminator

Supplement Light Range

Up to 30 m

PTZ

Movement Range (Pan)

350°

Movement Range (Tilt)

0° to 90°

Pan Speed

pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s

Tilt Speed

tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s

Proportional Pan

yes

Presets

300

Preset Freezing

yes

Park Action

Preset, patrol scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

preset, dome reboot, dome adjust, aux output

Power-off Memory

yes

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265, H.264, MJPEG

Scalable Video Coding (SVC)

main stream, sub-stream, third stream

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM

Audio Bit Rate

AAC: 16 kbps, 32 kbps, 64 kbps, MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps

Audio Sampling Rate

AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz

Environment Noise Filtering

yes

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Simultaneous Live View

Up to 20 channels

API

ISAPI, Hikvision SDK, Hik-Connect, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T)

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Security

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Network Storage

NAS (NFS, SMB/ CIFS)

Web Browser

IE10+, Chrome57+, Firefox52+, Safari12+


Image Parameters Switch

yes

Image Settings

saturation, brightness, contrast, sharpness

Day/Night Switch

day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

120 dB WDR

SNR

＞52dB

Defog

yes

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

up to 24 masks (8 masks for each scene)

Regional Exposure

yes

Interface

Ethernet Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

support microSD/microSDHC/microSDXC cards, up to 256 GB

Audio

1 built-in microphone,1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 built-in speaker, 1 audio output, line level, impedance: 600 Ω

Alarm

1 alarm input, 1 alarm output

RESETARE

yes

Power Output

12 VDC, max. 60 mA

Event

Basic Event

Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output

Smart Event

Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset)

General

Power

12 VDC, PoE (802.3at), max. 14 W

Dimension

Ø125 × 137.2 mm (Ø 4.92" × 5.38")

Weight

Approx. 650 g (1.4 lb.)

Operating Condition

Temperature: -10°C to 50°C (14°F to 122°F), Humidity: ≤ 90%

General Function

mirror, password protection, watermark, IP address filter

Approval

Protection

IP54 (IEC 60529-2013),TVS 4000 V lightning protection, surge protection and voltage transient protection
