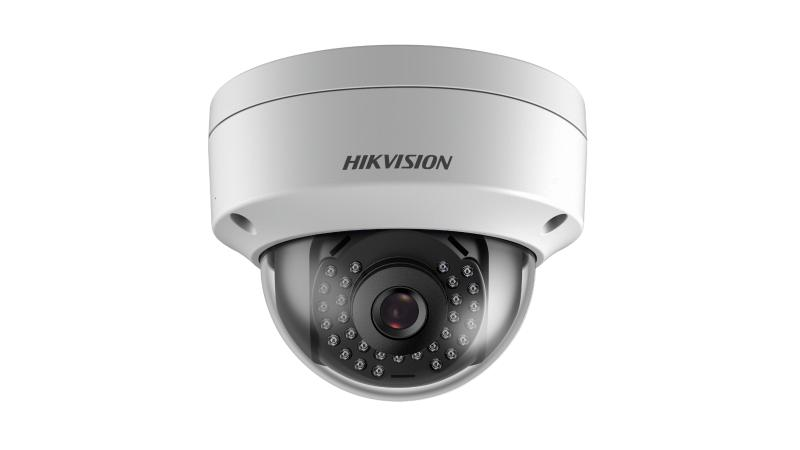

2 MP Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting thanks to DWDR technology
  • Up to 128 GB SD card slot for storage
  • Water and dust resistant (IP67), vandal proof (IK10)

View Less
View more
Sales Inquiry
DS-2CD1123G0F-I

Specification

  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic RangeDigital WDR
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°
  • DNR3D DNR
  • Lens
  • Lens2.8/4/6 mm
  • Auto-IrisNo
  • ApertureF2.0
  • FocusFixed
  • FOV2.8mm: Horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 132° 4 mm: Horizontal FOV: 89°, vertical FOV: 47°, diagonal FOV: 107° 6 mm: Horizontal FOV: 54°, vertical FOV: 31°, diagonal FOV: 62°
  • Lens MountM12
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850nm
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 1fps (1280 × 720, 640 × 360) 60Hz: 1fps (1280 × 720, 640 × 360)
  • Video CompressionMain stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Smart Feature-Set
  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Region of Interest1 fixed region for main stream
  • Linkage MethodUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
  • Image
  • Image EnhancementBLC, 3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Network
  • Network StoragemicroSD/SDHC/SDXC card (128GB), local storage and ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, IPv6, UDP, QoS, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • SecurityPassword protection, complicated password, HTTPS encryption,802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS 1.2
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserIE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128GB
  • Approval
  • EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
  • SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
  • Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
  • ProtectionIngress protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
  • General
  • Firmware VersionV5.5.93
  • General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • RESETAREReset via reset button on camera body, web browser and client software
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, reverse polarity protection; PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
  • MaterialBubble: plastic, bottom base: metal
  • DimensionsCamera: Φ111 mm × 82.4 mm (Φ4.4" × 3.2") With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • WeightCamera: approx. 405 g (0.9 lb.) With package: approx. 620 g (1.4 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Min. Illumination
Color: 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Day &Night
IR Cut Filter
Wide Dynamic Range
Digital WDR
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 70°
DNR
3D DNR
Lens
Lens
2.8/4/6 mm
Auto-Iris
No
Aperture
F2.0
Focus
Fixed
FOV
2.8mm: Horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 132° 4 mm: Horizontal FOV: 89°, vertical FOV: 47°, diagonal FOV: 107° 6 mm: Horizontal FOV: 54°, vertical FOV: 31°, diagonal FOV: 62°
Lens Mount
M12
Illuminator
IR Range
Up to 30 m
Wavelength
850nm
Video
Max. Resolution
1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 1fps (1280 × 720, 640 × 360) 60Hz: 1fps (1280 × 720, 640 × 360)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps
H.264+
Main stream supports
H.265+
Main stream supports
Smart Feature-Set
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Region of Interest
1 fixed region for main stream
Linkage Method
Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
Image Enhancement
BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule
Network
Network Storage
microSD/SDHC/SDXC card (128GB), local storage and ANR
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, IPv6, UDP, QoS, Bonjour
API
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Security
Password protection, complicated password, HTTPS encryption,802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS 1.2
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage
Built-in micro SD/SDHC/SDXC slot, up to 128GB
Approval
EMC
47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
Safety
UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry
2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection
Ingress protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
General
Firmware Version
V5.5.93
General Function
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
RESETARE
Reset via reset button on camera body, web browser and client software
Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, reverse polarity protection; PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
Material
Bubble: plastic, bottom base: metal
Dimensions
Camera: Φ111 mm × 82.4 mm (Φ4.4" × 3.2") With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight
Camera: approx. 405 g (0.9 lb.) With package: approx. 620 g (1.4 lb.)
