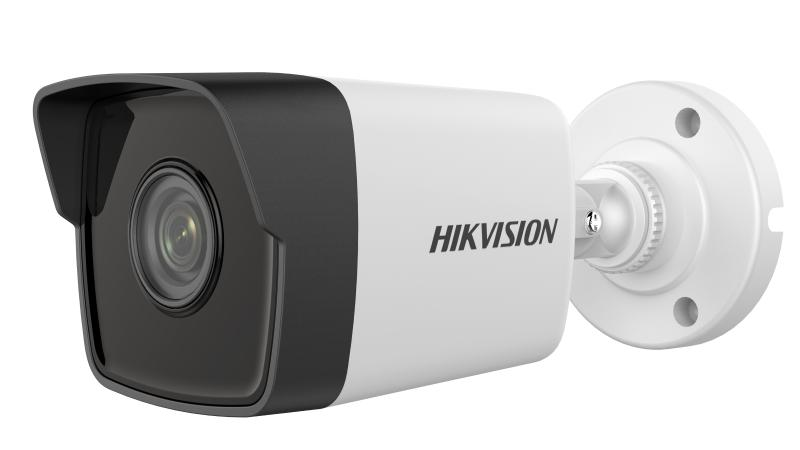

2 MP Fixed Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light with DWDR
Water and dust resistant (IP67)
Up to 128 GB SD card slot for storage
EXIR 2.0, advanced infrared technology with long IR distance

View Less

DS-2CD1023G0E-IF

Specification
Resources
Accessories

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Min. IlluminationColor: 0.01 Lux @ (F1.6, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Day &NightIR Cut Filter
Wide Dynamic RangeDigital WDR
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens
Lens2.8/4 mm
ApertureF1.6
FOV2.8mm: Horizontal FOV: 113.4°, vertical FOV: 59.8°, diagonal FOV: 135.6° 4 mm: Horizontal FOV: 91.5°, vertical FOV: 46.1°, diagonal FOV: 109.8°
Lens MountM12

Illuminator
IR RangeUp to 30 m
Wavelength850 nm

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 1fps (1280 × 720, 640 × 360) 60Hz: 1fps (1280 × 720, 640 × 360)
Video CompressionMain stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 8 Mbps
H.264+Main stream supports
H.265+Main stream supports

Smart Feature-Set
Basic EventMotion detection, video tampering alarm, exception (illegal login, HDD full, HDD error)
Region of Interest1 fixed region for main stream
Linkage MethodUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

Image EnhancementBLC, 3D DNR
Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule

Network
Network StoragemicroSD/SDHC/SDXC card (128 GB) (supports image and logs storage only), local storage
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserIE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB (supports image and logs storage only)

Approval
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtectionIngress protection: IP67 (IEC 60529-2013)

General
Firmware VersionV5.5.83
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
RESETAREReset via reset button on camera body, web browser and client software
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, reverse polarity protection; PoE (802.3af, class 3)
Power Consumption and Current12 VDC, 0.30 A, max.3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max.4.0 W
MaterialFront cover: metal, back cover : plastic
DimensionsCamera: 67.8 × 66.2 × 177.6 mm (2.7" × 2.6" × 7") With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")
WeightCamera: Approx. 280 g (0.6 lb.) With package: Approx. 480 g (1.1 lb.)

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.6, AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day &Night

IR Cut Filter

Wide Dynamic Range

Digital WDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

2.8/4 mm

Aperture

F1.6

FOV

2.8mm: Horizontal FOV: 113.4°, vertical FOV: 59.8°, diagonal FOV: 135.6° 4 mm: Horizontal FOV: 91.5°, vertical FOV: 46.1°, diagonal FOV: 109.8°

Lens Mount

M12

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 1fps (1280 × 720, 640 × 360) 60Hz: 1fps (1280 × 720, 640 × 360)

Video Compression

Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 8 Mbps

H.264+

Main stream supports

H.265+

Main stream supports

Smart Feature-Set

Basic Event

Motion detection, video tampering alarm, exception (illegal login, HDD full, HDD error)

Region of Interest

1 fixed region for main stream

Linkage Method

Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture


Image Enhancement

BLC, 3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule

Network

Network Storage

microSD/SDHC/SDXC card (128 GB) (supports image and logs storage only), local storage

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB (supports image and logs storage only)

Approval

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Safety

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1

Chemistry

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection

Ingress protection: IP67 (IEC 60529-2013)

General

Firmware Version

V5.5.83

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

RESETARE

Reset via reset button on camera body, web browser and client software

Startup and Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, reverse polarity protection; PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.30 A, max.3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max.4.0 W

Material

Front cover: metal, back cover : plastic

Dimensions

Camera: 67.8 × 66.2 × 177.6 mm (2.7" × 2.6" × 7") With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")

Weight

Camera: Approx. 280 g (0.6 lb.) With package: Approx. 480 g (1.1 lb.)
