EOL

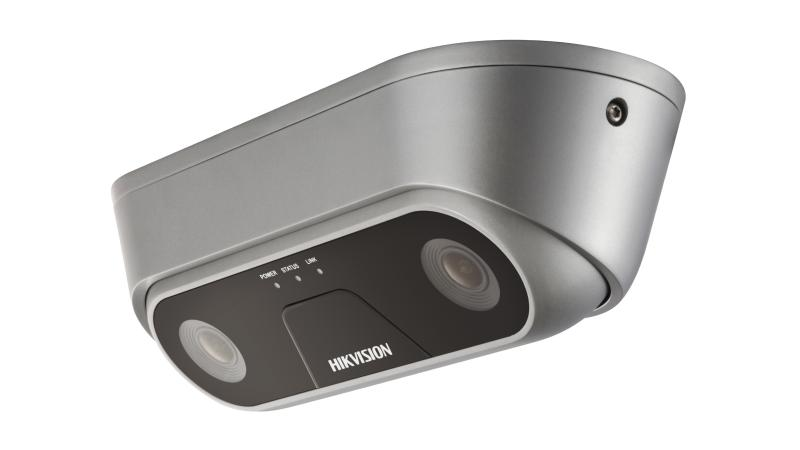

Mobile People Counting Network Camera

  • High quality imaging with 1 MP resolution
  • Dual lens, supports stereo views
  • People counting

View Less
View more
Data Sheet
Sales Inquiry

Available models:

iDS-2XM6810F-I/C(2.0mm)
iDS-2XM6810F-I(M)/C
EOL
Data Sheet

Specification

  • Camera
  • Image Sensor1/3″ Progressive Scan CMOS
  • Shutter Speed1/25 s - 1/100,000 s
  • Angle Adjustmenttilt: 0° to 45°
  • DNR3D DNR
  • Day & NightIR Cut Filter
  • Auto-IrisManual
  • Lens
  • ApertureF2.2
  • FOVHorizontal FOV 105°, vertical FOV 89°
  • Lens MountM12
  • Focal length2mm
  • Audio
  • Audio Compression8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio I/OYes
  • Image
  • Image Enhancement3D DNR
  • Day/Night SwitchAuto, scheduled, day, and night
  • Image SettingsBrightness and sharpness are adjustable by client software or web browser
  • Sub-Stream50Hz: 25fps (640 × 960),60Hz: 24fps (640 × 960),
  • Max. Resolution640 × 960
  • Main Stream50Hz: 25fps (640 × 480),60Hz: 24fps (640 × 480),
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Security/
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientIVMS-4200
  • Web BrowserIE8+, Chrome31-44, Firefox 30.0 - 51
  • Firmware Version/
  • Smart features/
  • Interface
  • Audio/
  • Video Output/
  • On-board Storage/
  • Compression Standard
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264,Sub-stream: H.264
  • Video Bit Rate32 Kbps to 8 Mbps
  • IR
  • IR RangeUp to 3 m
  • Road Traffic and Vehicle Detection
  • AccuracyApprox.850 g (1.87 lb.), 1100 g (2.43 lb.) with package
  • General
  • Power SupplyTerminal block PoE (802.3af, class 3)
  • WeightCamera: 216 × 87 × 57 mm (8.51″ × 3.41″ × 2.22″),Package: 260 × 125 × 125 mm (10.24″ × 4.92″ × 4.92″)
  • Operating Conditions-30°C to +60°C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Consumption12 VDC (wide voltage range: 8 V to 36 V), terminal block,PoE (802.3af, class 3)
  • Shipping WeightApprox.850 g (1.87 lb.), 1100 g (2.43 lb.) with package
  • WiperBody: metal; enclosure: plastic
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/3″ Progressive Scan CMOS
Shutter Speed
1/25 s - 1/100,000 s
Angle Adjustment
tilt: 0° to 45°
DNR
3D DNR
Day & Night
IR Cut Filter
Auto-Iris
Manual
Lens
Aperture
F2.2
FOV
Horizontal FOV 105°, vertical FOV 89°
Lens Mount
M12
Focal length
2mm
Audio
Audio Compression
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio I/O
Yes
Image Enhancement
3D DNR
Day/Night Switch
Auto, scheduled, day, and night
Image Settings
Brightness and sharpness are adjustable by client software or web browser
Sub-Stream
50Hz: 25fps (640 × 960),60Hz: 24fps (640 × 960),
Max. Resolution
640 × 960
Main Stream
50Hz: 25fps (640 × 480),60Hz: 24fps (640 × 480),
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Security
/
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users 3 levels: Administrator, Operator and User
Client
IVMS-4200
Web Browser
IE8+, Chrome31-44, Firefox 30.0 - 51
Firmware Version
/
Smart features
/
Interface
Audio
/
Video Output
/
On-board Storage
/
Compression Standard
H.264 Type
Baseline Profile/Main Profile/High Profile
Video Compression
Main stream: H.264,Sub-stream: H.264
Video Bit Rate
32 Kbps to 8 Mbps
IR
IR Range
Up to 3 m
Road Traffic and Vehicle Detection
Accuracy
Approx.850 g (1.87 lb.), 1100 g (2.43 lb.) with package
General
Power Supply
Terminal block PoE (802.3af, class 3)
Weight
Camera: 216 × 87 × 57 mm (8.51″ × 3.41″ × 2.22″),Package: 260 × 125 × 125 mm (10.24″ × 4.92″ × 4.92″)
Operating Conditions
-30°C to +60°C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Consumption
12 VDC (wide voltage range: 8 V to 36 V), terminal block,PoE (802.3af, class 3)
Shipping Weight
Approx.850 g (1.87 lb.), 1100 g (2.43 lb.) with package
Wiper
Body: metal; enclosure: plastic
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/3″ Progressive Scan CMOS
  • Shutter Speed1/25 s - 1/100,000 s
  • Angle Adjustmenttilt: 0° to 45°
  • DNR3D DNR
  • Day & NightIR Cut Filter
  • Auto-IrisManual
Lens
  • ApertureF2.2
  • FOVHorizontal FOV 105°, vertical FOV 89°
  • Lens MountM12
  • Focal length2mm
Audio
  • Audio Compression8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio I/OYes
  • Image Enhancement3D DNR
  • Day/Night SwitchAuto, scheduled, day, and night
  • Image SettingsBrightness and sharpness are adjustable by client software or web browser
  • Sub-Stream50Hz: 25fps (640 × 960),60Hz: 24fps (640 × 960),
  • Max. Resolution640 × 960
  • Main Stream50Hz: 25fps (640 × 480),60Hz: 24fps (640 × 480),
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Security/
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientIVMS-4200
  • Web BrowserIE8+, Chrome31-44, Firefox 30.0 - 51
  • Firmware Version/
  • Smart features/
Interface
  • Audio/
  • Video Output/
  • On-board Storage/
Compression Standard
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264,Sub-stream: H.264
  • Video Bit Rate32 Kbps to 8 Mbps
IR
  • IR RangeUp to 3 m
Road Traffic and Vehicle Detection
  • AccuracyApprox.850 g (1.87 lb.), 1100 g (2.43 lb.) with package
General
  • Power SupplyTerminal block PoE (802.3af, class 3)
  • WeightCamera: 216 × 87 × 57 mm (8.51″ × 3.41″ × 2.22″),Package: 260 × 125 × 125 mm (10.24″ × 4.92″ × 4.92″)
  • Operating Conditions-30°C to +60°C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Consumption12 VDC (wide voltage range: 8 V to 36 V), terminal block,PoE (802.3af, class 3)
  • Shipping WeightApprox.850 g (1.87 lb.), 1100 g (2.43 lb.) with package
  • WiperBody: metal; enclosure: plastic
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.4.800_210812
IPC V5.4.800 Release Note.pdf
Applied to:
iDS-2XM6810F-I/C(2.0mm)
