*Images are for illustrative purposes. Actual product appearance and specifications may vary.

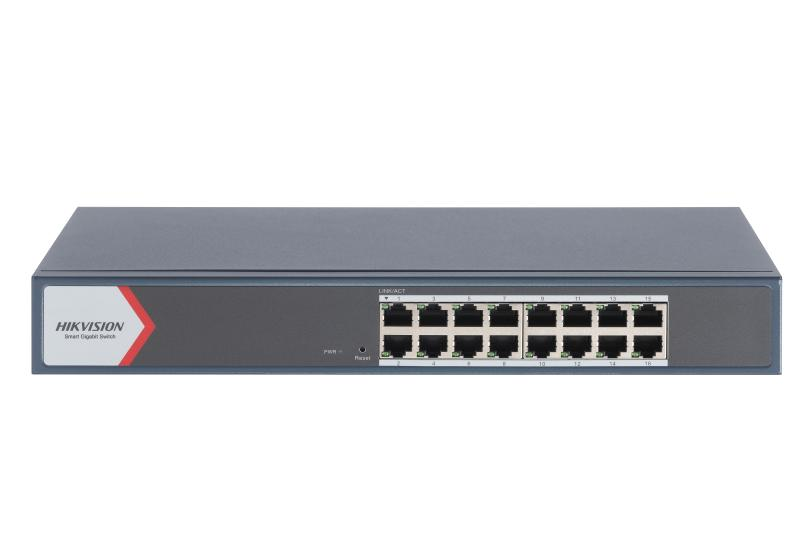

16 Port Gigabit Smart Switch

  • 16 × Gigabit RJ45 port
  • Support IEEE 802.3az
  • Support STP/RSTP loop prevention with storm control
  • Support cable detection to locate failure
  • Support DHCP snooping
  • Support 6 kV surge protection
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-3E1516-EI V2
DS-3E1516-EI
DS-3E1516-EI V2(O-STD)
Data Sheet

Specification

  • General
  • ShellMetal material
  • Net Weight1.12 kg (2.47 lb)
  • Gross Weight1.96 kg (4.32 lb)
  • Dimensions (W × H × D)335.00 mm × 44.50 mm × 175.80 mm (13.19'' × 1.75'' × 6.92'')
  • Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply220 VAC, 50/60 Hz, Max. 0.3 A
  • Installation ModeRack (equipped with mounting ears)
  • Max. Power Consumption12 W
  • Power Consumption in Idle10 W
  • Surge Protection6 KV
  • Network Parameters
  • Ports16 × Gigabit RJ45 port
  • MAC Address Table8 K
  • Switching Capacity56 Gbps
  • Packet Forwarding Rate41.66 Mpps
  • Internal Cache4.1 Mbits
  • Software Function
  • Port IsolationPorts 1 to 16: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group(s).
  • QoSQoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP and WRR priority scheduling modes. Support DSCP-based QoS policy.
  • Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.
  • VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
  • System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
  • DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
  • HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
  • Approval
  • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryWEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006),CE-RoHS (2011/65/EU)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Shell
Metal material
Net Weight
1.12 kg (2.47 lb)
Gross Weight
1.96 kg (4.32 lb)
Dimensions (W × H × D)
335.00 mm × 44.50 mm × 175.80 mm (13.19'' × 1.75'' × 6.92'')
Operating Temperature
0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
220 VAC, 50/60 Hz, Max. 0.3 A
Installation Mode
Rack (equipped with mounting ears)
Max. Power Consumption
12 W
Power Consumption in Idle
10 W
Surge Protection
6 KV
Network Parameters
Ports
16 × Gigabit RJ45 port
MAC Address Table
8 K
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.66 Mpps
Internal Cache
4.1 Mbits
Software Function
Port Isolation
Ports 1 to 16: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group(s).
QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP and WRR priority scheduling modes. Support DSCP-based QoS policy.
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
System Maintenance
Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
DHCP Snooping
DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006),CE-RoHS (2011/65/EU)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
Network Parameters
  • Network Parameters
  • Network Parameters
  • Network Parameters
  • Network Parameters
  • Network Parameters
Software Function
  • Software Function
  • Software Function
  • Software Function
  • Software Function
  • Software Function
  • Software Function
  • Software Function
  • Software Function
Approval
  • Approval
  • Approval
  • Approval
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.0.3_221214
Applied to:
DS-3E1516-EI V2
Firmware_V3.0.13_241107
Applied to:
DS-3E1516-EI
