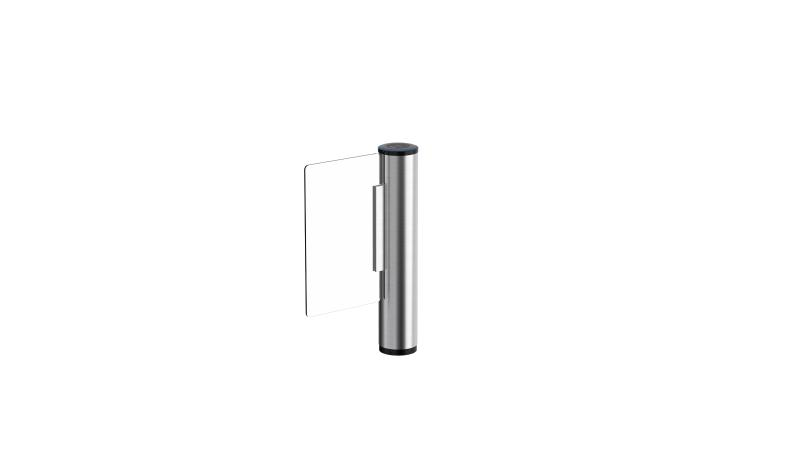

Pro Swing Gates

Access board is optional, need ordered separately.
Door swing need to be ordered separately and assembled with the gate to use
The device supports memory mode, which can realize continuous and fast passage;
The device has a fire alarm linkage interface. When the signal is triggered, the door wing will automatically open to quickly guide personnel to evacuate;
It supports power-off passage, and the door wing is in a free state when the power is off, which is convenient for personnel to pass through and prevent panic.
(Modular installation) Support QR code function, by embedded installation, QR code and card reader combined into one layout is simple and overall.
(Modular installation) Optional super capacitor to realize automatic door opening when power off;

View Less

Data Sheet

Available models:

DS-K3BC430LX

DS-K3BC430LX/868

DS-K3BC430LX

Specification
Resources
Accessories

Data Sheet

System
MotorBrushless motor
MCBF≥ 6 Millions
IR light detectorsNot Support
BrakeSupport

Interface
Exit button1
USB1
Fire alarm input1

Hardware
BuzzerSupport
Access controllerOptional
SupercapacitorSupport
Network switchNot supplied
Card receiverOptional

Function
AP modeNot Support
KeyfobSupplied, 433 MHz/868 MHz, within 30 m

General
Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method
Lane widthFor pairs mode： 550~1400mm（Gap 50mm，Door wing height 950mm）For full-height door wing 550~900mm (Gap 50mm，Door wing height 1800mm) For single mode： 650~900mm（Gap 25mm，Door wing height 950mm)
Distance between barrier and ground950mm - 1800mm
Barrier materialAcrylic glass or Tempered glass
Pedestal materialSUS304 stainless steel with the thickness of 2 mm (0.08")
IndicatorSupport
Power100 to 240 VAC; 50 to 60 Hz
Power consumption36W (stand by)
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity10% to 95% (No Condensing)
Dimensions180mm x 180mm x 975mm (7.09' x 7.09' x 38.39')
Weight (Net) Left: 30kg (66.14 lbs) (Rough) Left: 35 kg (77.16 lbs)
ApprovalCE/CB/CE-LVD/RoHS/REACH/WEEE
Power supply for face recognition moduleSupplied

Configuration
Lane widthdouble:650,750,900,1100,1200;single:650,700,750,800,850,900;
Pedestal length180 mm
Module selectionYES
Pedestal width180 mm
Wall distance20 mm
BaseNO
Barrier materialAcrylic
Application environmentIndoor
Authentication modeCard;Face;QR code
Card typeDesfire;M1;EM
Recommended width650 mm
Base modelNO
Authentication exclusionaryCard;Face;QR code
Product typeSwing barrier
Remote controller type433Mhz;868Mhz
Movement Protrusion Width0 mm
Convert FaceNO
Door HeightDefault(0.95m);1.8m;
Door wing gapDefault:50mm

System

Motor

Brushless motor

MCBF

≥ 6 Millions

IR light detectors

Not Support

Brake

Support

Interface

Exit button

USB

Fire alarm input

Hardware

Buzzer

Support

Access controller

Optional

Supercapacitor

Support

Network switch

Not supplied

Card receiver

Optional

Function

AP mode

Not Support

Keyfob

Supplied, 433 MHz/868 MHz, within 30 m

General

Throughput

30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method

Lane width

For pairs mode： 550~1400mm（Gap 50mm，Door wing height 950mm）For full-height door wing 550~900mm (Gap 50mm，Door wing height 1800mm) For single mode： 650~900mm（Gap 25mm，Door wing height 950mm)

Distance between barrier and ground

950mm - 1800mm

Barrier material

Acrylic glass or Tempered glass

Pedestal material

SUS304 stainless steel with the thickness of 2 mm (0.08")

Indicator

Support

Power

100 to 240 VAC; 50 to 60 Hz

Power consumption

36W (stand by)

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 95% (No Condensing)

Dimensions

180mm x 180mm x 975mm (7.09' x 7.09' x 38.39')

Weight

(Net) Left: 30kg (66.14 lbs) (Rough) Left: 35 kg (77.16 lbs)

Approval

CE/CB/CE-LVD/RoHS/REACH/WEEE

Power supply for face recognition module

Supplied

Configuration

Lane width

double:650,750,900,1100,1200;single:650,700,750,800,850,900;

Pedestal length

180 mm

Module selection

YES

Pedestal width

180 mm

Wall distance

20 mm

Base

Barrier material

Acrylic

Application environment

Indoor

Authentication mode

Card;Face;QR code

Card type

Desfire;M1;EM

Recommended width

650 mm

Base model

Authentication exclusionary

Card;Face;QR code

Product type

Swing barrier

Remote controller type

433Mhz;868Mhz

Movement Protrusion Width

0 mm

Convert Face

Door Height

Default(0.95m);1.8m;

Door wing gap

Default:50mm
