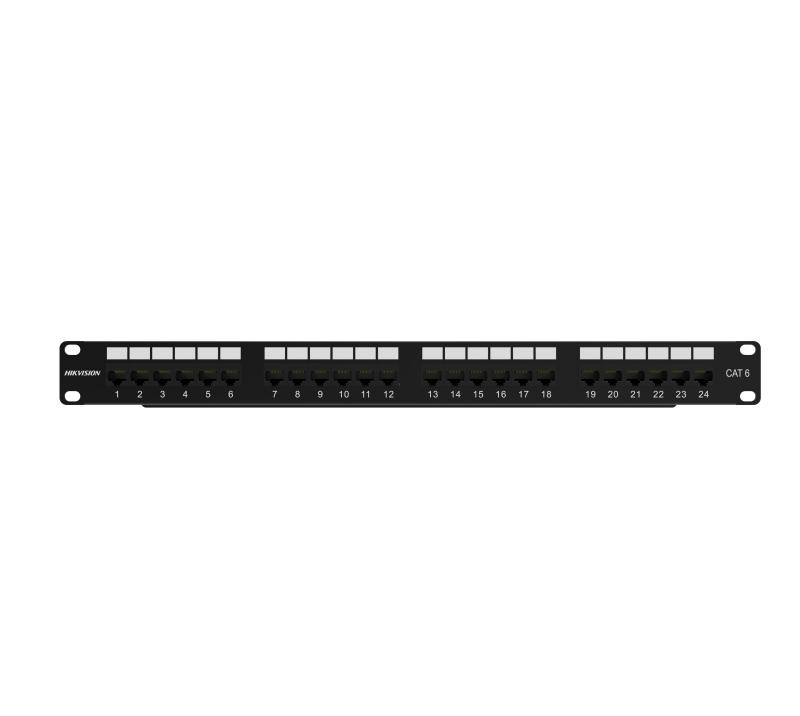

Cat6 Unsheilded 24-port Patch Panel, 1U

  • Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class E and ANSI/TIA-568.2-D Category 6.
  • High performance, supports 250MHz data rates.
  • Universal design and label supports both TIA 568 A & B wiring.
  • Compatible with 22-24 AWG solid or stranded wires.
  • Cable termination using 110 Block termination tool.
  • Press-Fit design, without soldering tin, environmentally friendly
  • Separate wire peak, easy for separating wires.
  • Folding bracket, convenient installation, less packing space.
  • White silk screen for easy mark.
  • Wire sequence offered, easy for cabling.
  • Special design, protect PCB board from damage during working.
  • Forward extraction design from the cabinet, easy for installation and maintenance
  • 1U height, standard structure, high compatibility, easy for working.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-1CP6U24-1U
DS-1CP6U24-1U
Data Sheet

Specification

  • Category
  • Product CategoryPatch Panel
  • Fire resistance
  • Fire resistanceUL 94 V-0
  • General Specifications
  • ColorBlack
  • Conductor TypeSolid, Stranded
  • Cable TypeUnshielded
  • Rack TypeEIA 19 inch
  • Rack Unit1
  • ANSI/TIA Category6
  • Termination TypeIDC
  • Total Ports, quantity24
  • Keystone quantity24
  • WiringTIA 568A, TIA 568B
  • Material Specifications
  • Material TypePanel：Cold-Rolled Steel IDC：PC Pin: Phosphor Bronze Jack: PBT
  • Termination Contact Plating50u inch gold
  • Electrical Characteristics
  • DC resistance≤ 20 mΩ
  • Current Rating1.5 A @ 20 °C
  • Dielectric Withstand Voltage, RMS, conductive surface1,000 Vac @ 60 s
  • Dielectric Withstand Voltage, RMS, contact-to-contact1,000 Vac @ 60 s
  • Insulation Resistance, minimum500 MΩ
  • Mechanical Specifications
  • Plug to Jack Mating Cycles≥ 750 times
  • Dimensions
  • Height44.00 mm
  • Width482.60 mm
  • Depth31.72 mm
  • Depth（with bracket）92mm
  • Compatible Conductor Gauge, solid22-24 AWG
  • Compatible Conductor Gauge, stranded22-24 AWG
  • Environmental Specifications
  • Operating Temperature-10 °C to +60 °C
  • Storage Temperature-40 °C to +68 °C
  • Relative Humidity10%~90%
  • Packaging and Weights
  • Packaging TypeBox
  • Weight830g
  • Package dimension510 x 65 x 77 mm
  • Packaging quantity1
  • Accessory
  • AccessoryCable Tie: 24 pcs Screw & nut: 4 sets Tool: 1 pcs
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Category
Product Category
Patch Panel
Fire resistance
Fire resistance
UL 94 V-0
General Specifications
Color
Black
Conductor Type
Solid, Stranded
Cable Type
Unshielded
Rack Type
EIA 19 inch
Rack Unit
1
ANSI/TIA Category
6
Termination Type
IDC
Total Ports, quantity
24
Keystone quantity
24
Wiring
TIA 568A, TIA 568B
Material Specifications
Material Type
Panel：Cold-Rolled Steel IDC：PC Pin: Phosphor Bronze Jack: PBT
Termination Contact Plating
50u inch gold
Electrical Characteristics
DC resistance
≤ 20 mΩ
Current Rating
1.5 A @ 20 °C
Dielectric Withstand Voltage, RMS, conductive surface
1,000 Vac @ 60 s
Dielectric Withstand Voltage, RMS, contact-to-contact
1,000 Vac @ 60 s
Insulation Resistance, minimum
500 MΩ
Mechanical Specifications
Plug to Jack Mating Cycles
≥ 750 times
Dimensions
Height
44.00 mm
Width
482.60 mm
Depth
31.72 mm
Depth（with bracket）
92mm
Compatible Conductor Gauge, solid
22-24 AWG
Compatible Conductor Gauge, stranded
22-24 AWG
Environmental Specifications
Operating Temperature
-10 °C to +60 °C
Storage Temperature
-40 °C to +68 °C
Relative Humidity
10%~90%
Packaging and Weights
Packaging Type
Box
Weight
830g
Package dimension
510 x 65 x 77 mm
Packaging quantity
1
Accessory
Accessory
Cable Tie: 24 pcs Screw & nut: 4 sets Tool: 1 pcs
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Category
  • Product CategoryPatch Panel
Fire resistance
  • Fire resistanceUL 94 V-0
General Specifications
  • ColorBlack
  • Conductor TypeSolid, Stranded
  • Cable TypeUnshielded
  • Rack TypeEIA 19 inch
  • Rack Unit1
  • ANSI/TIA Category6
  • Termination TypeIDC
  • Total Ports, quantity24
  • Keystone quantity24
  • WiringTIA 568A, TIA 568B
Material Specifications
  • Material TypePanel：Cold-Rolled Steel IDC：PC Pin: Phosphor Bronze Jack: PBT
  • Termination Contact Plating50u inch gold
Electrical Characteristics
  • DC resistance≤ 20 mΩ
  • Current Rating1.5 A @ 20 °C
  • Dielectric Withstand Voltage, RMS, conductive surface1,000 Vac @ 60 s
  • Dielectric Withstand Voltage, RMS, contact-to-contact1,000 Vac @ 60 s
  • Insulation Resistance, minimum500 MΩ
Mechanical Specifications
  • Plug to Jack Mating Cycles≥ 750 times
Dimensions
  • Height44.00 mm
  • Width482.60 mm
  • Depth31.72 mm
  • Depth（with bracket）92mm
  • Compatible Conductor Gauge, solid22-24 AWG
  • Compatible Conductor Gauge, stranded22-24 AWG
Environmental Specifications
  • Operating Temperature-10 °C to +60 °C
  • Storage Temperature-40 °C to +68 °C
  • Relative Humidity10%~90%
Packaging and Weights
  • Packaging TypeBox
  • Weight830g
  • Package dimension510 x 65 x 77 mm
  • Packaging quantity1
Accessory
  • AccessoryCable Tie: 24 pcs Screw & nut: 4 sets Tool: 1 pcs
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
