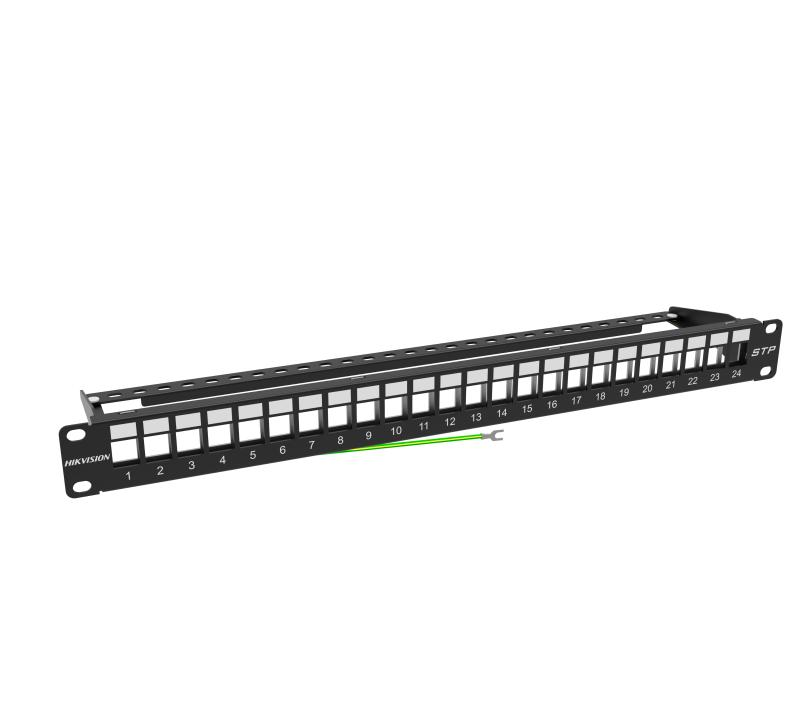

Sheilded 24-port Blanck Patch Panel, 1U

  • High density cold-rolled steel, guarantee mechanical strength.
  • Electroplating process, good electrical conductivity.
  • Standard grounding wire, ensures shielding grounding.
  • Folding bracket, convenient installation, less packing space.
  • White silk screen for easy mark.
  • Forward extraction design, easy for installation and maintenance
  • Up to 24 ports, install keystone jackets according to the required quantity.
  • 1U height, standard structure, high compatibility, easy for working.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-1CP0P24-1U
DS-1CP0P24-1U
Data Sheet

Specification

  • Category
  • Product CategoryPatch Panel
  • Fire resistance
  • Fire resistanceUL 94 V-0
  • General Specifications
  • ColorBlack
  • Cable TypeShielded
  • Rack TypeEIA 19 inch
  • Rack Unit1
  • Total Ports, quantity24
  • Keystone quantity0
  • Material Specifications
  • Material TypeCold-Rolled Steel
  • Dimensions
  • Height44.0 mm
  • Width482.60 mm
  • Depth10.10 mm
  • Depth（with bracket）102.20mm
  • Environmental Specifications
  • Operating Temperature-10 °C to +60 °C
  • Storage Temperature-40 °C to +68 °C
  • Relative Humidity10%~90%
  • Packaging and Weights
  • Packaging TypeBox
  • Package dimension510 x 65 x 77 mm
  • Packaging quantity1
  • Weight700g
  • Accessory
  • AccessoryCable Tie: 24 pcs Screw & nut: 4 sets Tool: 1 pcs
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Category
Product Category
Patch Panel
Fire resistance
Fire resistance
UL 94 V-0
General Specifications
Color
Black
Cable Type
Shielded
Rack Type
EIA 19 inch
Rack Unit
1
Total Ports, quantity
24
Keystone quantity
0
Material Specifications
Material Type
Cold-Rolled Steel
Dimensions
Height
44.0 mm
Width
482.60 mm
Depth
10.10 mm
Depth（with bracket）
102.20mm
Environmental Specifications
Operating Temperature
-10 °C to +60 °C
Storage Temperature
-40 °C to +68 °C
Relative Humidity
10%~90%
Packaging and Weights
Packaging Type
Box
Package dimension
510 x 65 x 77 mm
Packaging quantity
1
Weight
700g
Accessory
Accessory
Cable Tie: 24 pcs Screw & nut: 4 sets Tool: 1 pcs
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Category
  • Product CategoryPatch Panel
Fire resistance
  • Fire resistanceUL 94 V-0
General Specifications
  • ColorBlack
  • Cable TypeShielded
  • Rack TypeEIA 19 inch
  • Rack Unit1
  • Total Ports, quantity24
  • Keystone quantity0
Material Specifications
  • Material TypeCold-Rolled Steel
Dimensions
  • Height44.0 mm
  • Width482.60 mm
  • Depth10.10 mm
  • Depth（with bracket）102.20mm
Environmental Specifications
  • Operating Temperature-10 °C to +60 °C
  • Storage Temperature-40 °C to +68 °C
  • Relative Humidity10%~90%
Packaging and Weights
  • Packaging TypeBox
  • Package dimension510 x 65 x 77 mm
  • Packaging quantity1
  • Weight700g
Accessory
  • AccessoryCable Tie: 24 pcs Screw & nut: 4 sets Tool: 1 pcs
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
